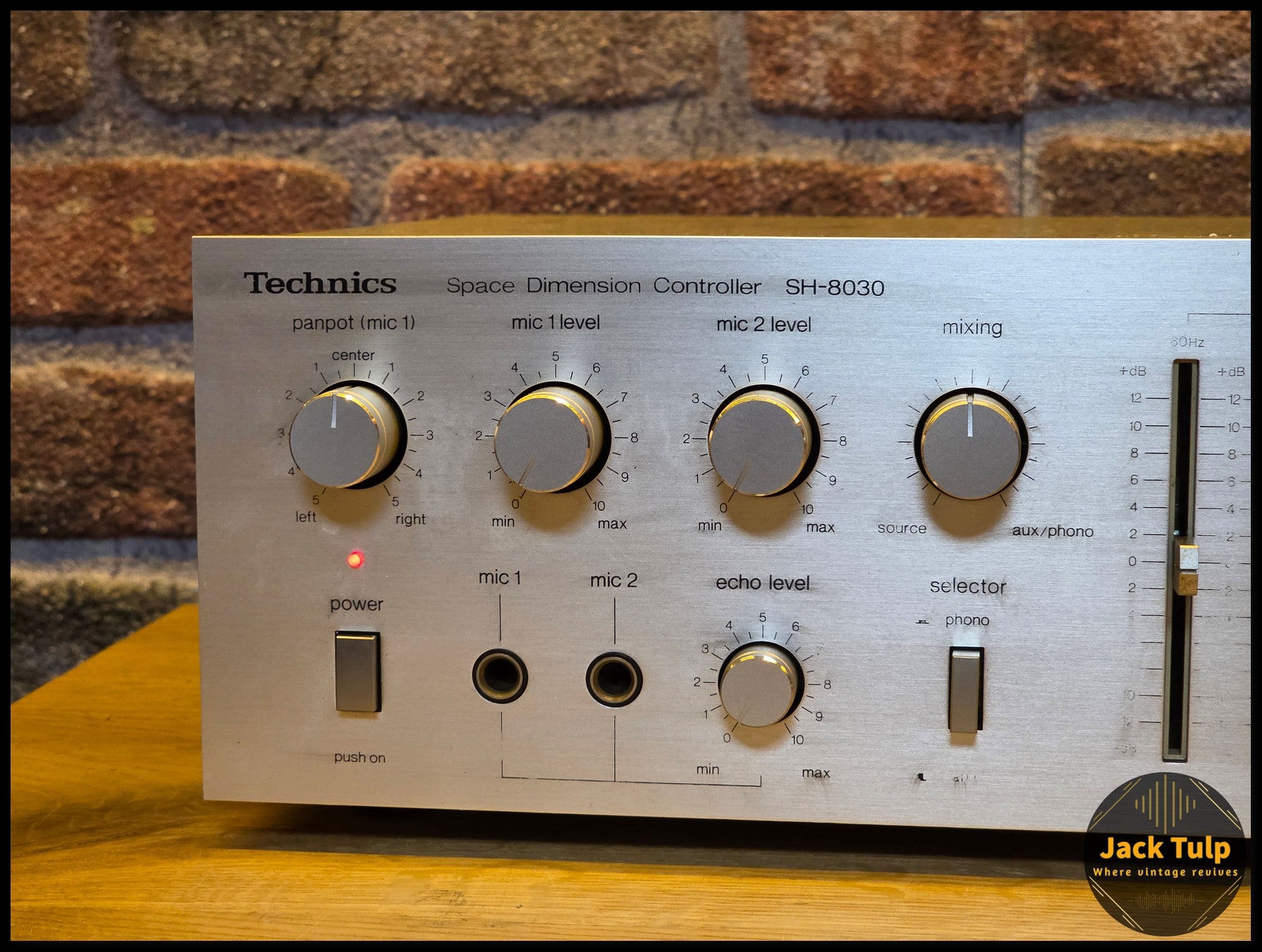

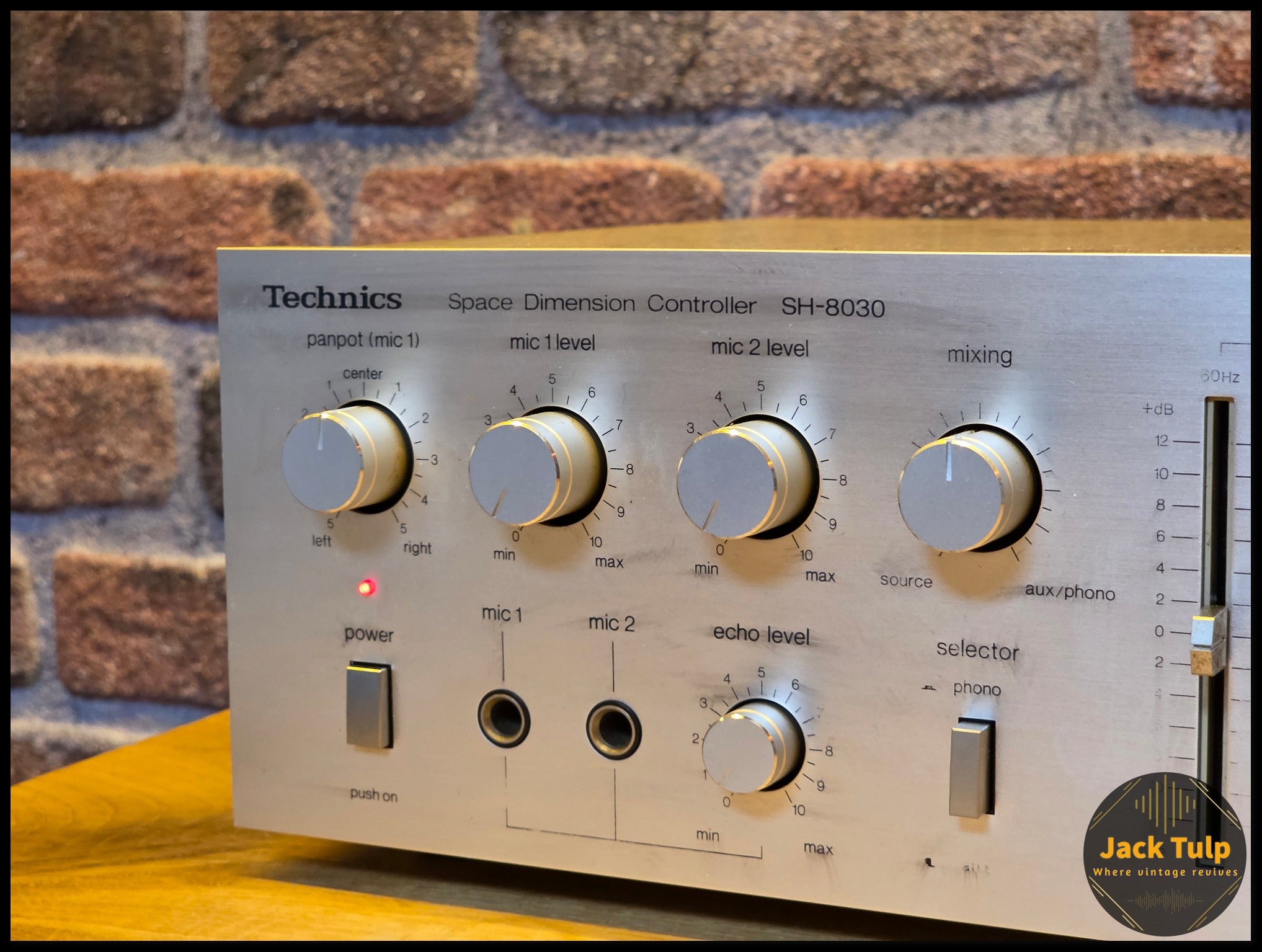

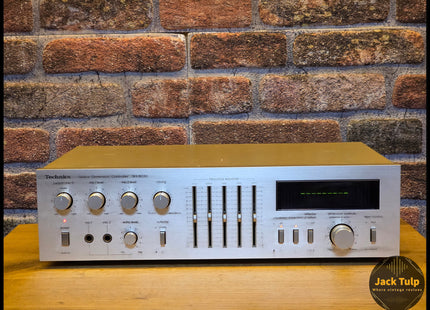

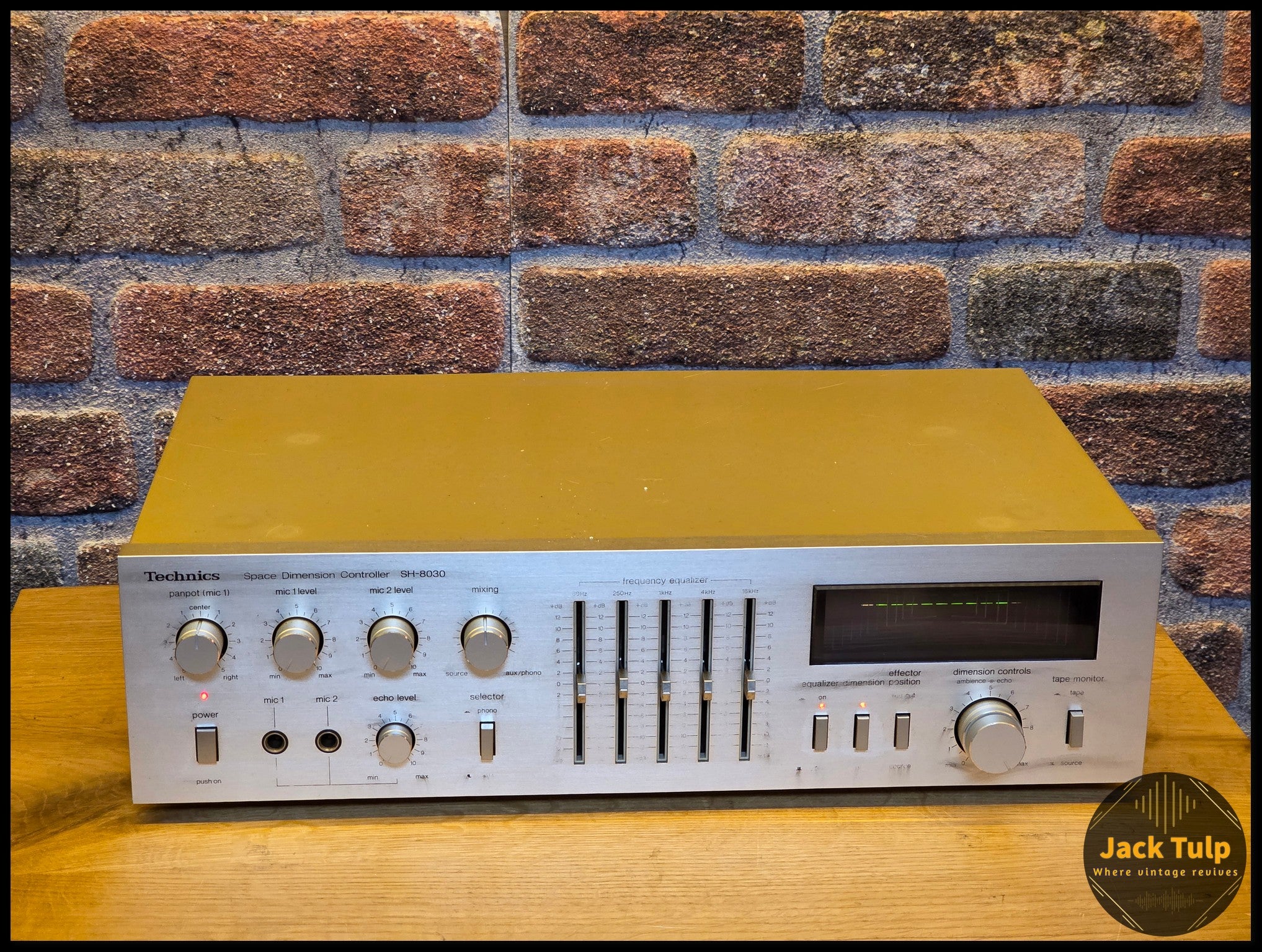

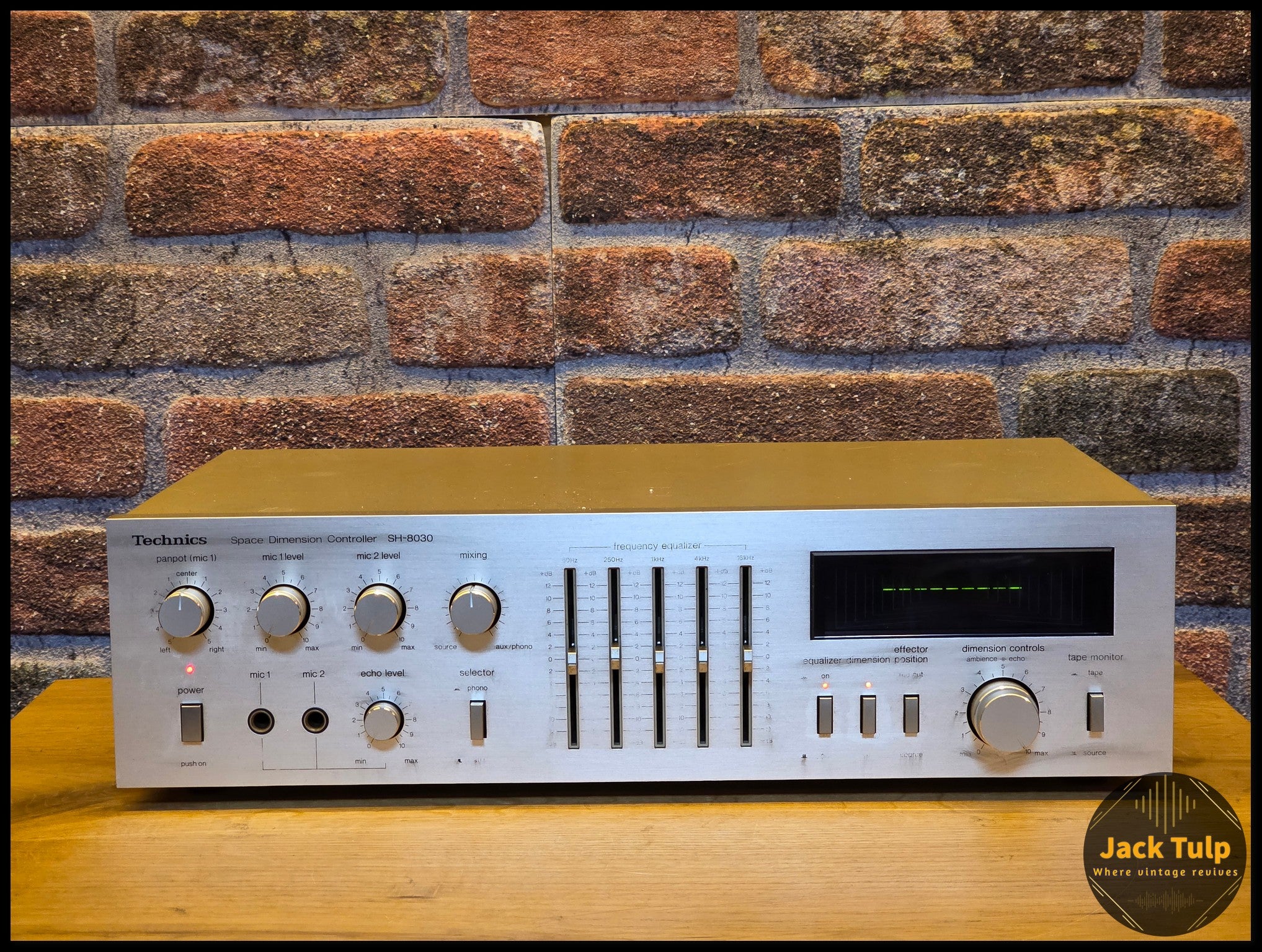

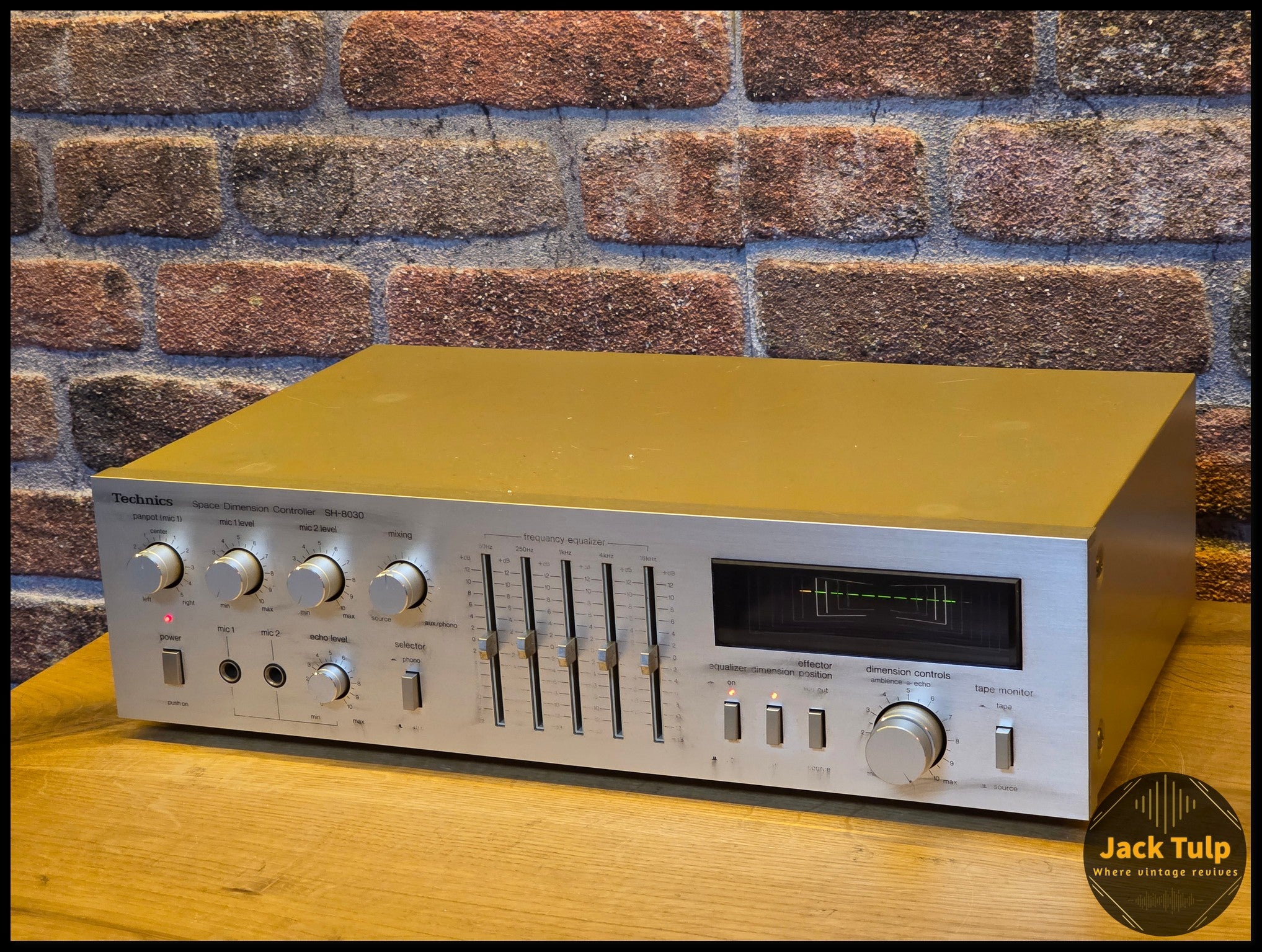

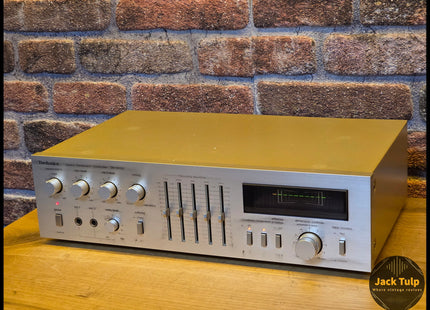

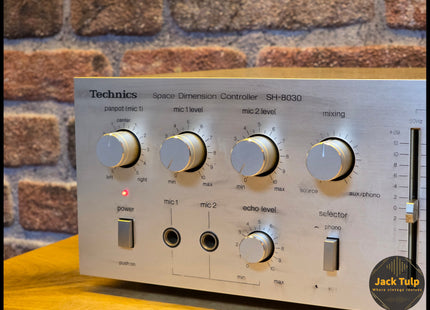

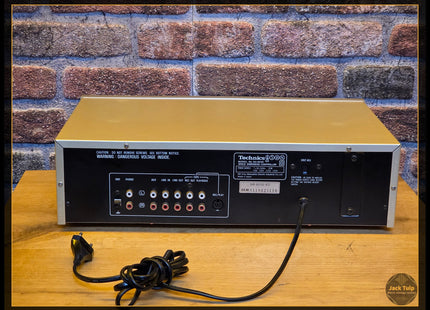

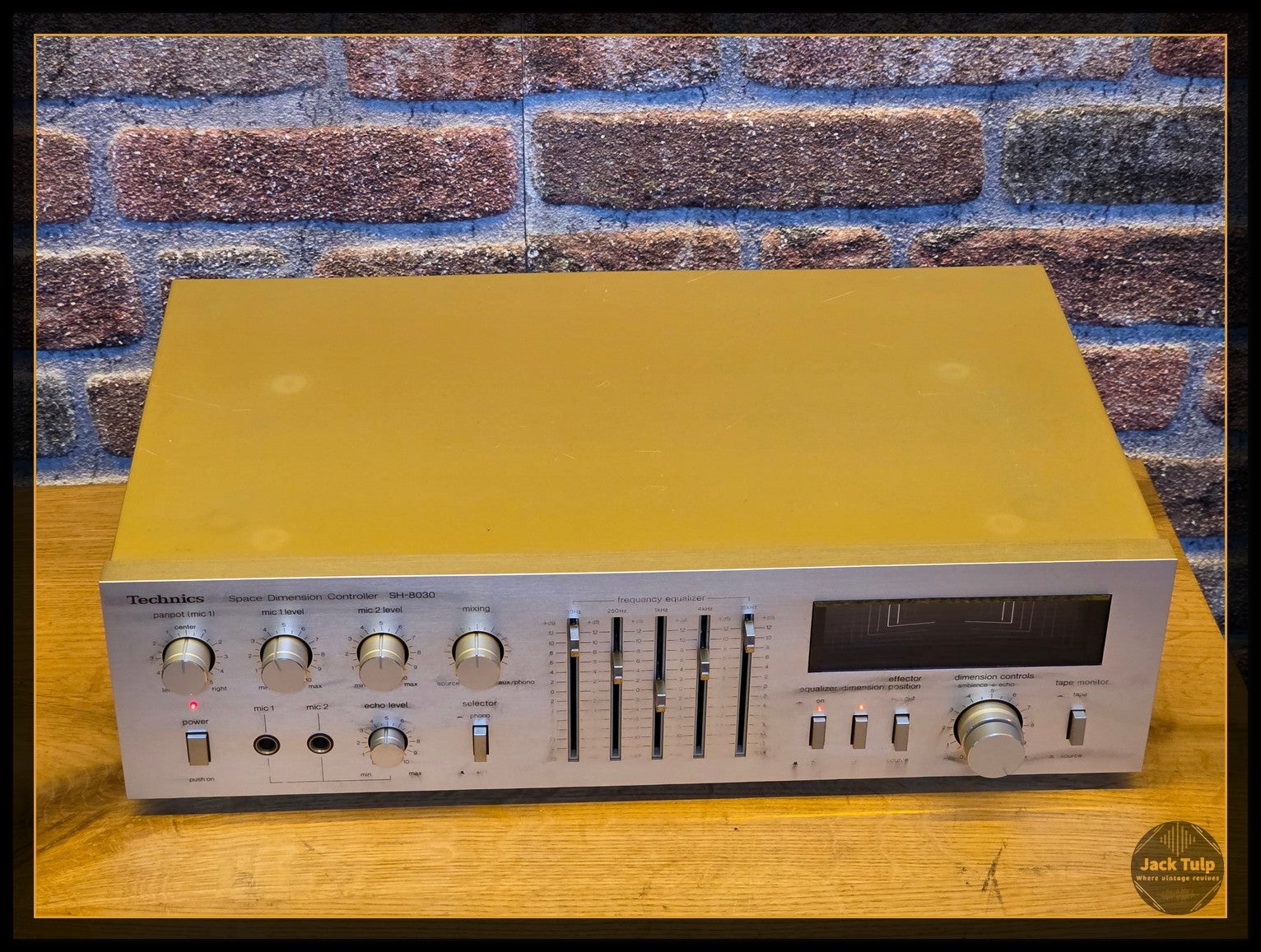

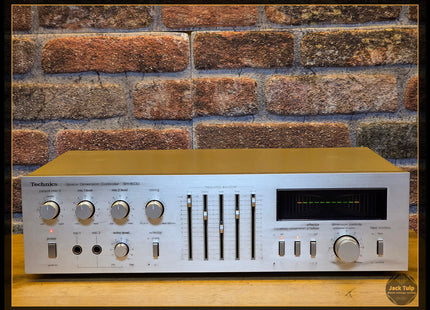

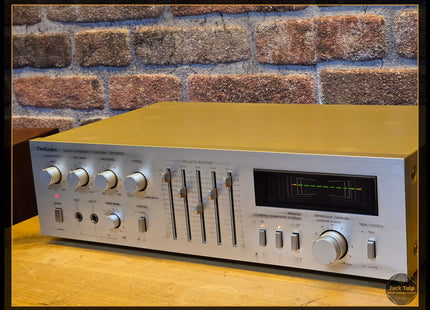

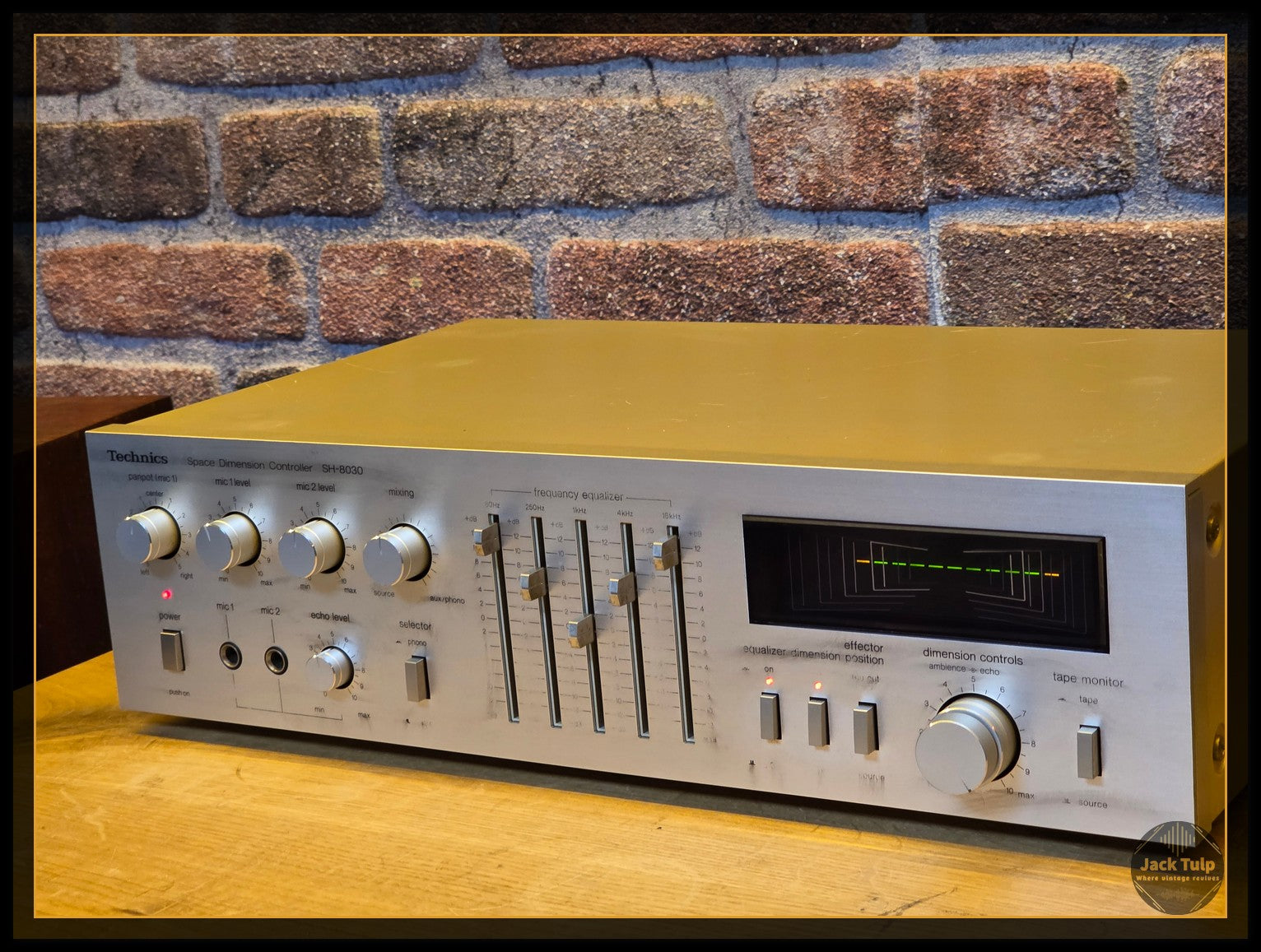

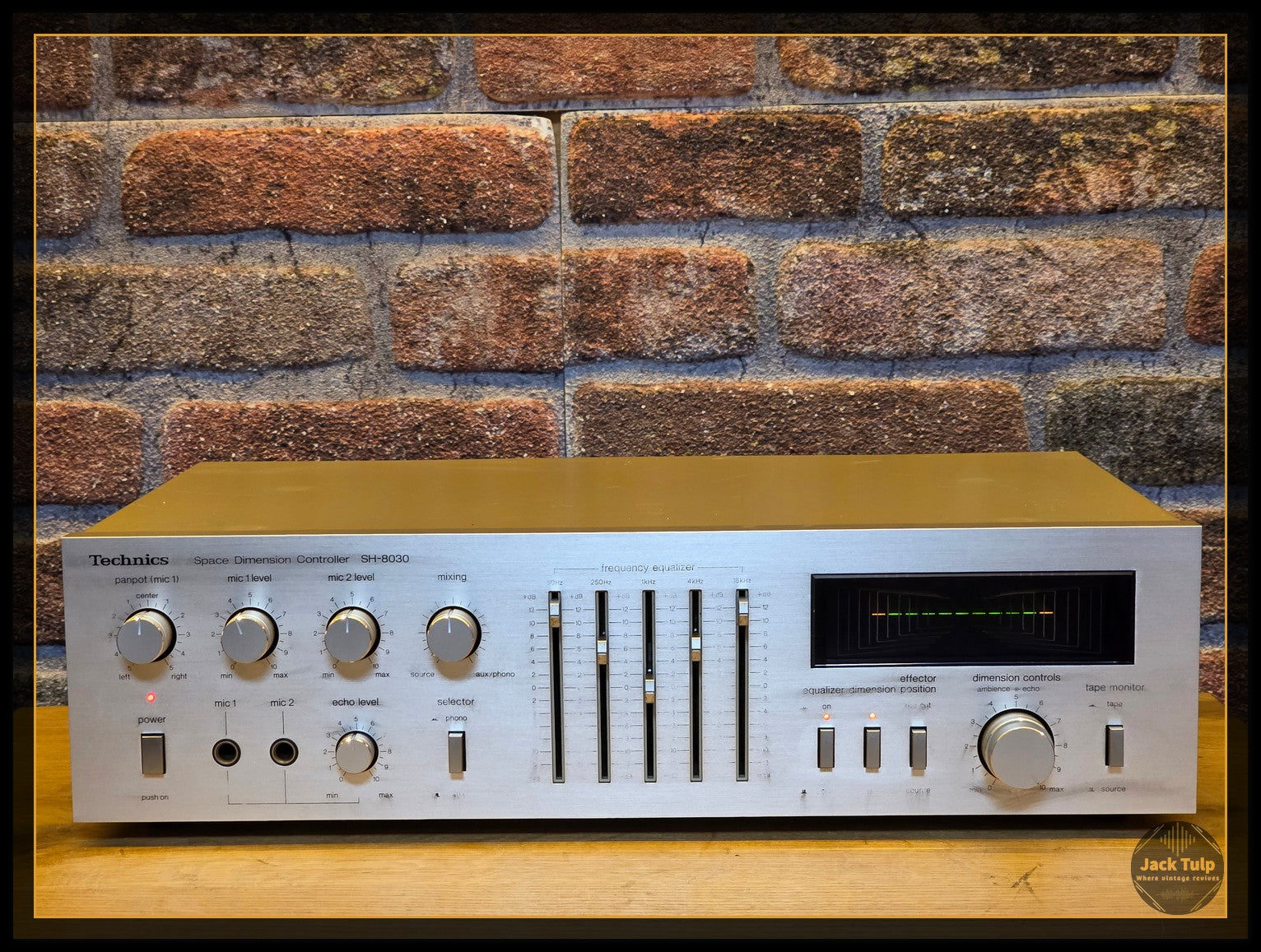

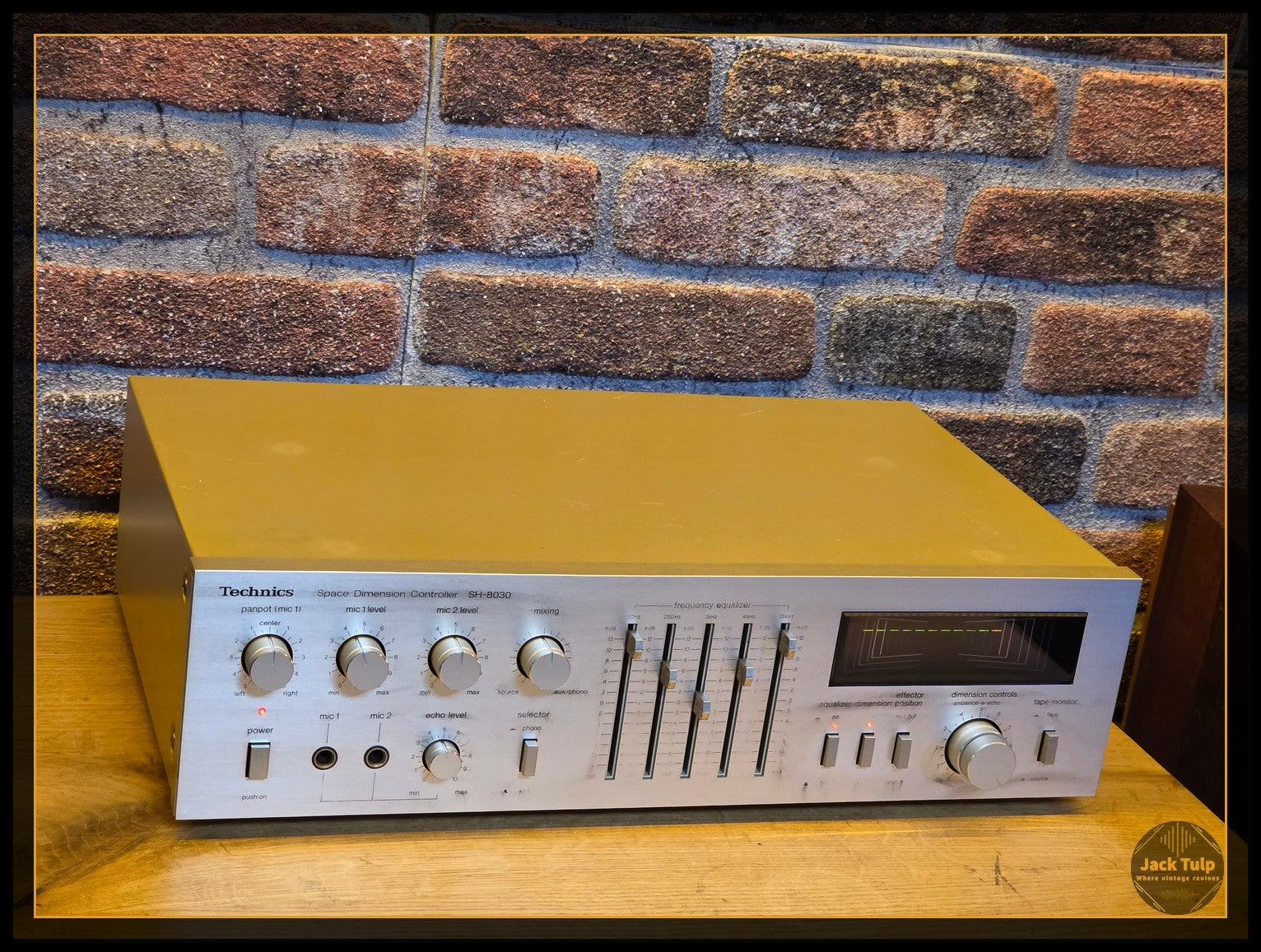

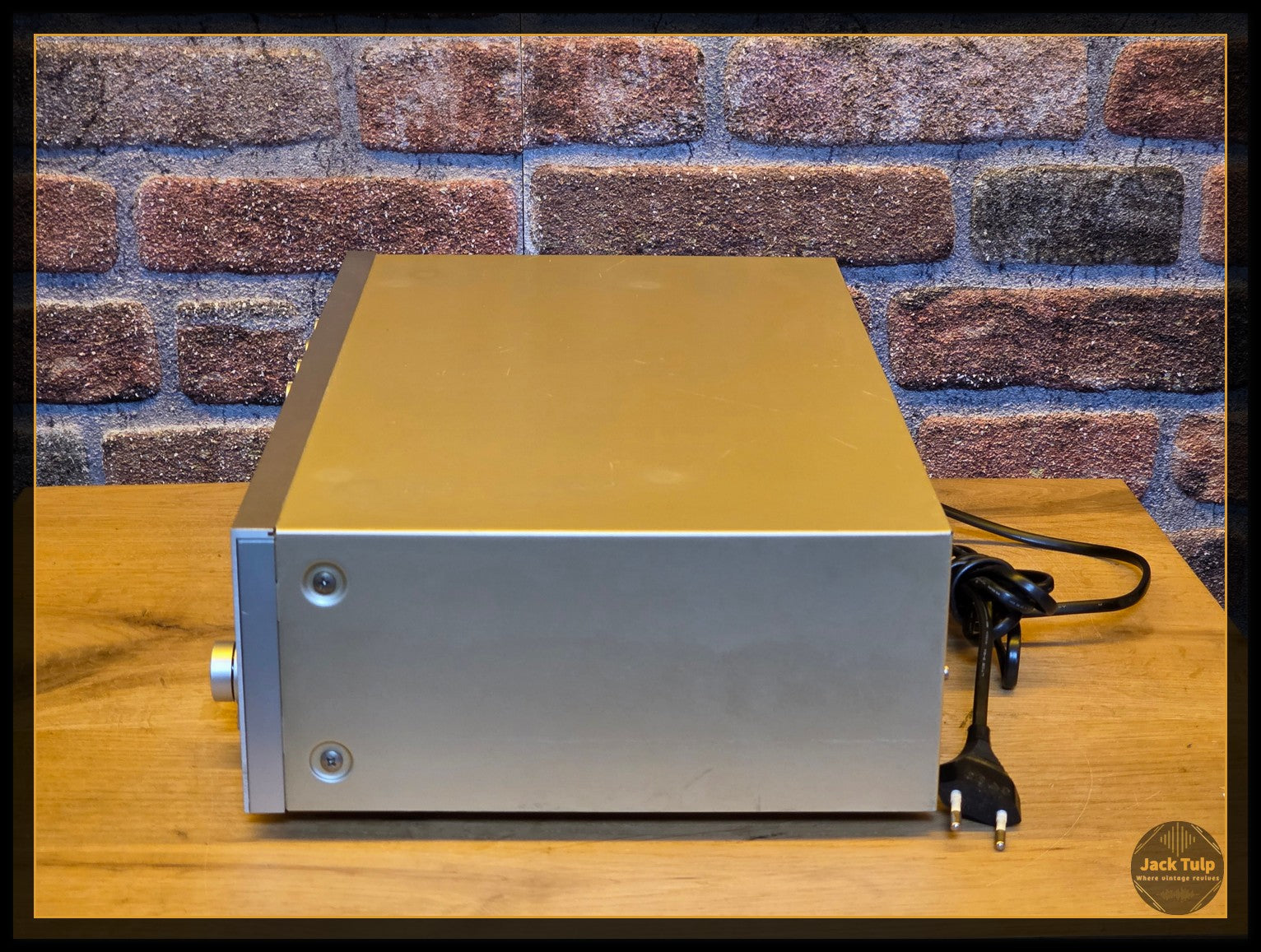

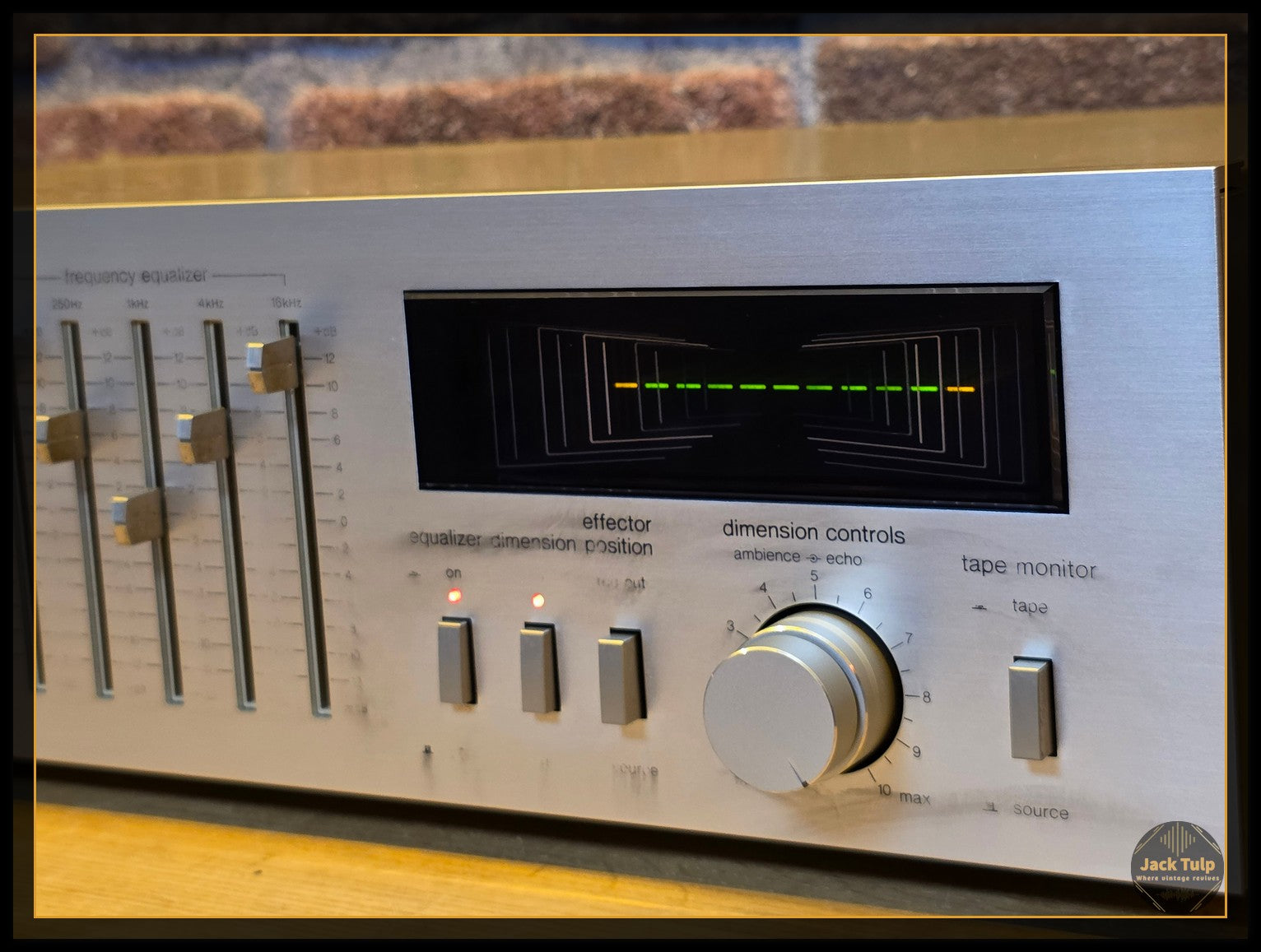

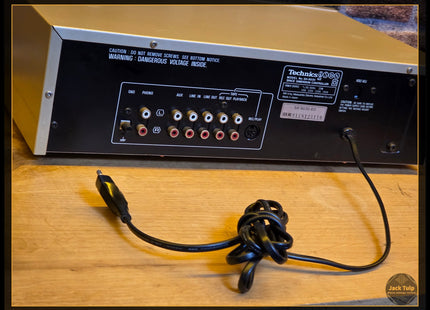

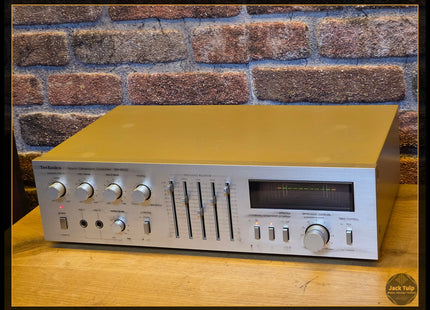

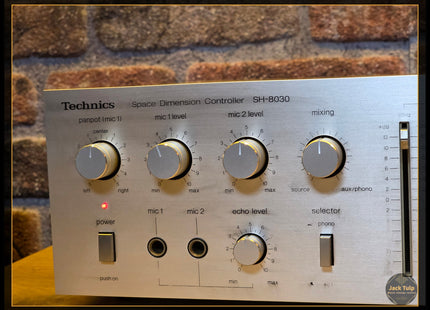

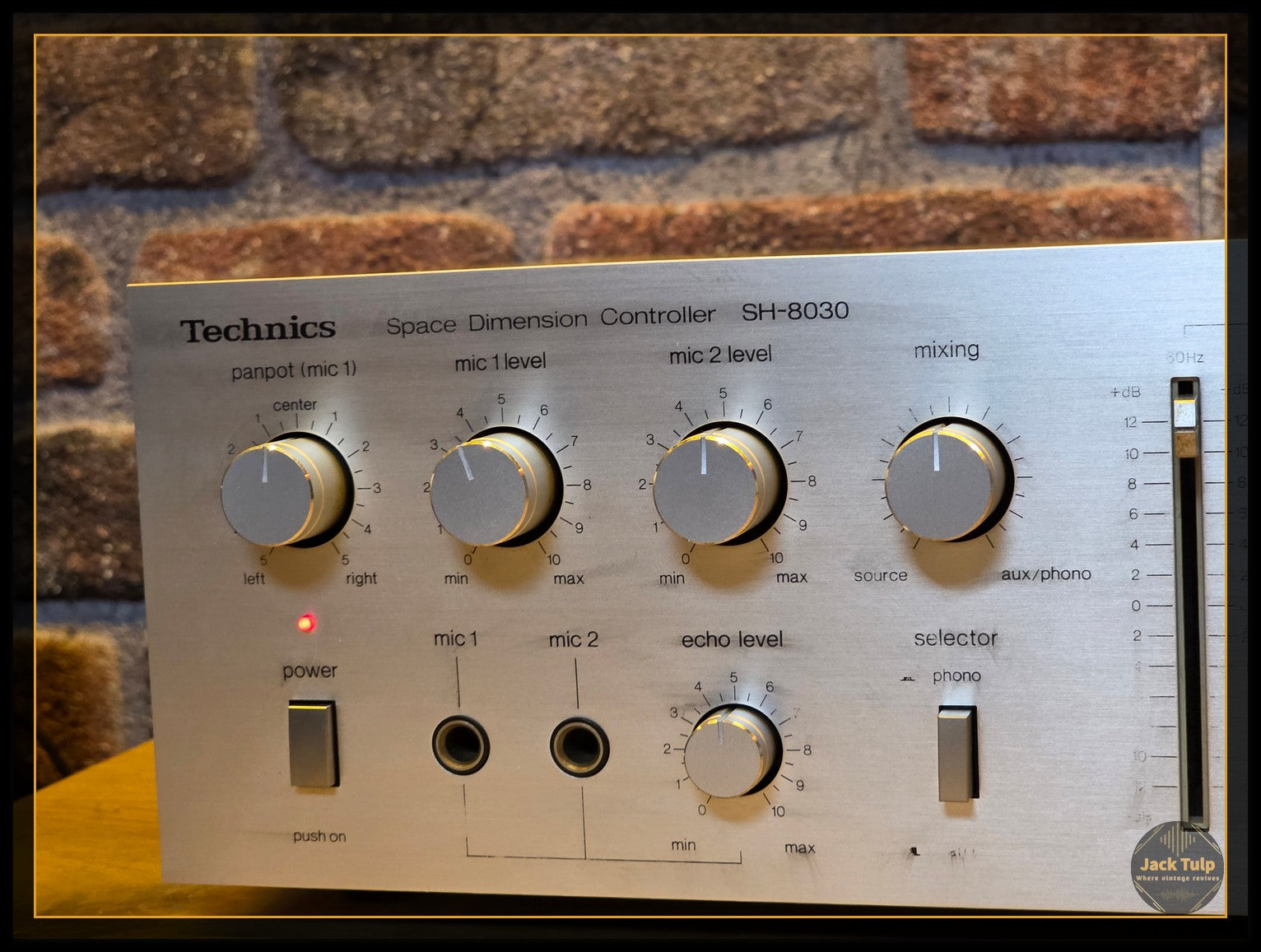

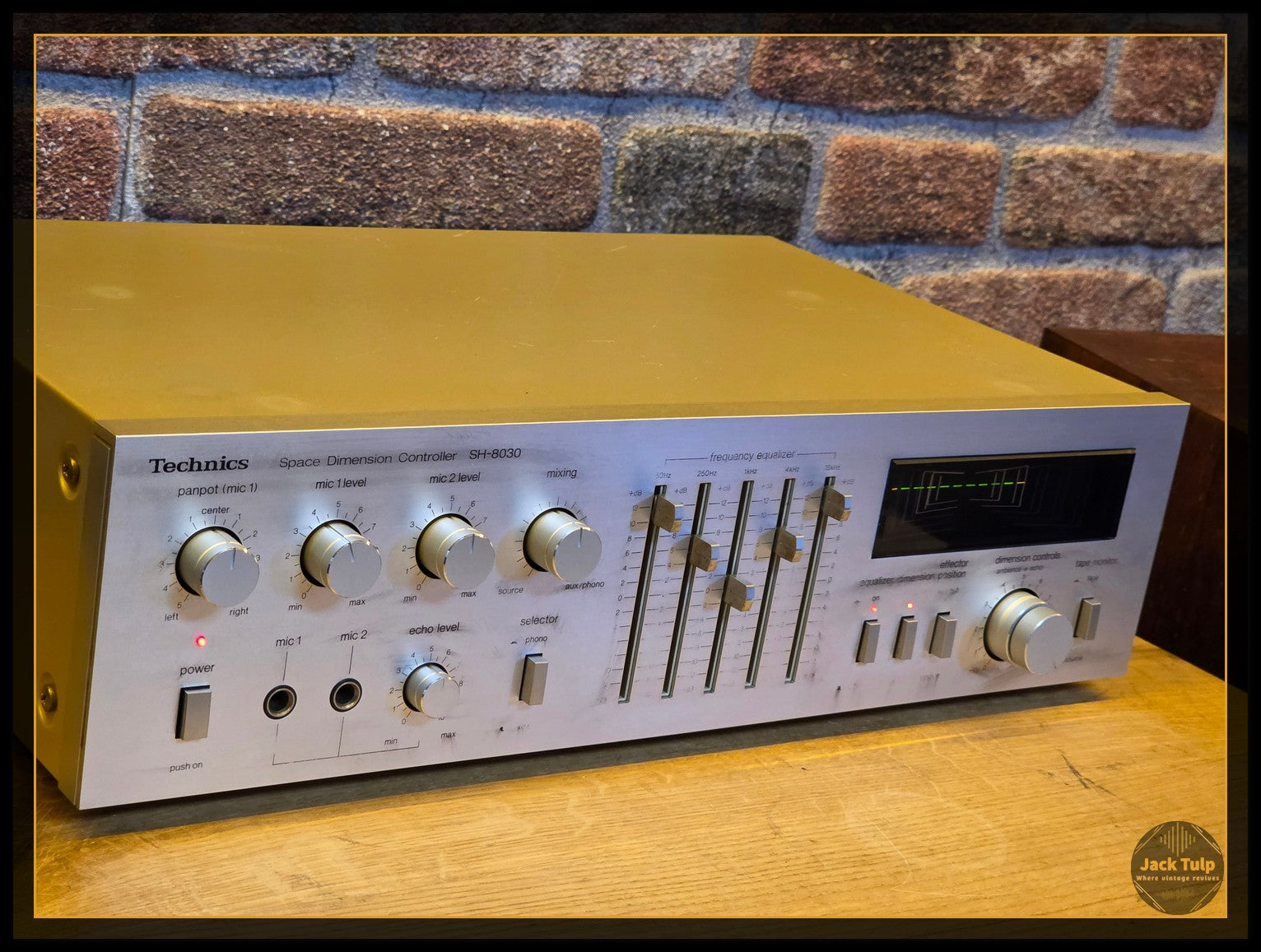

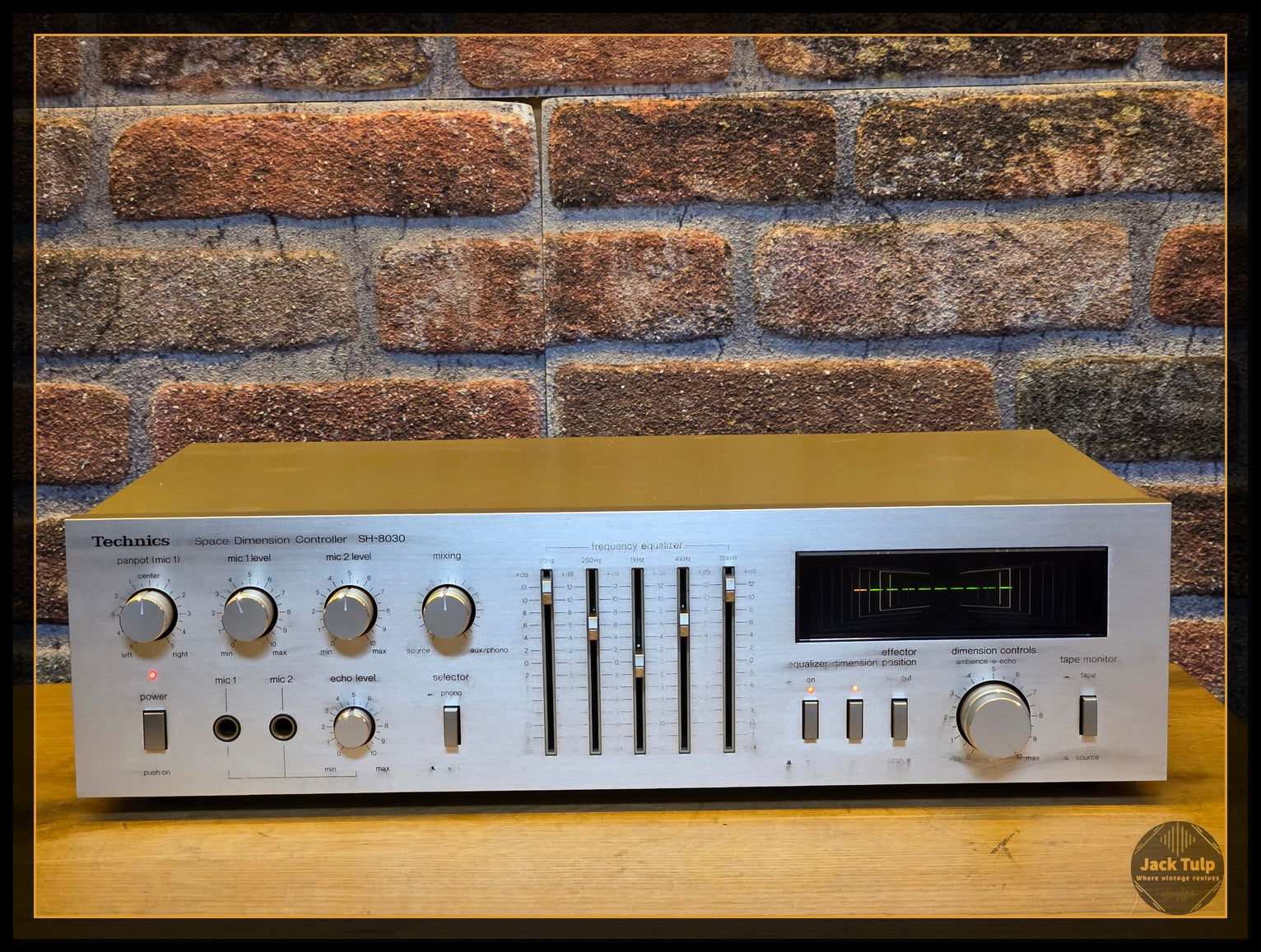

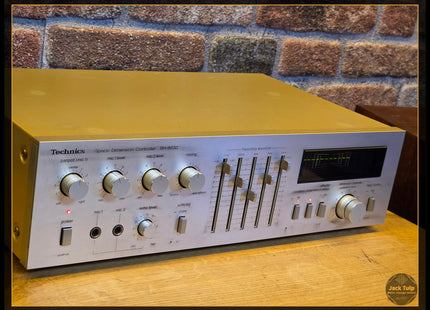

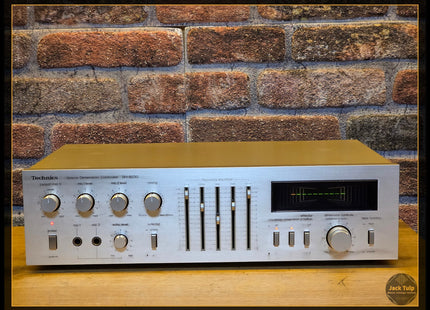

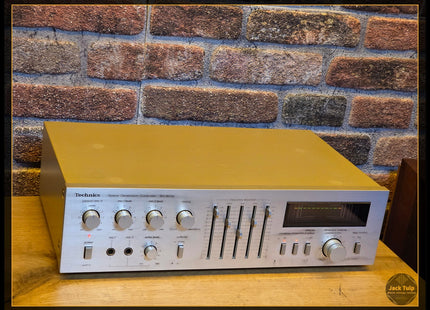

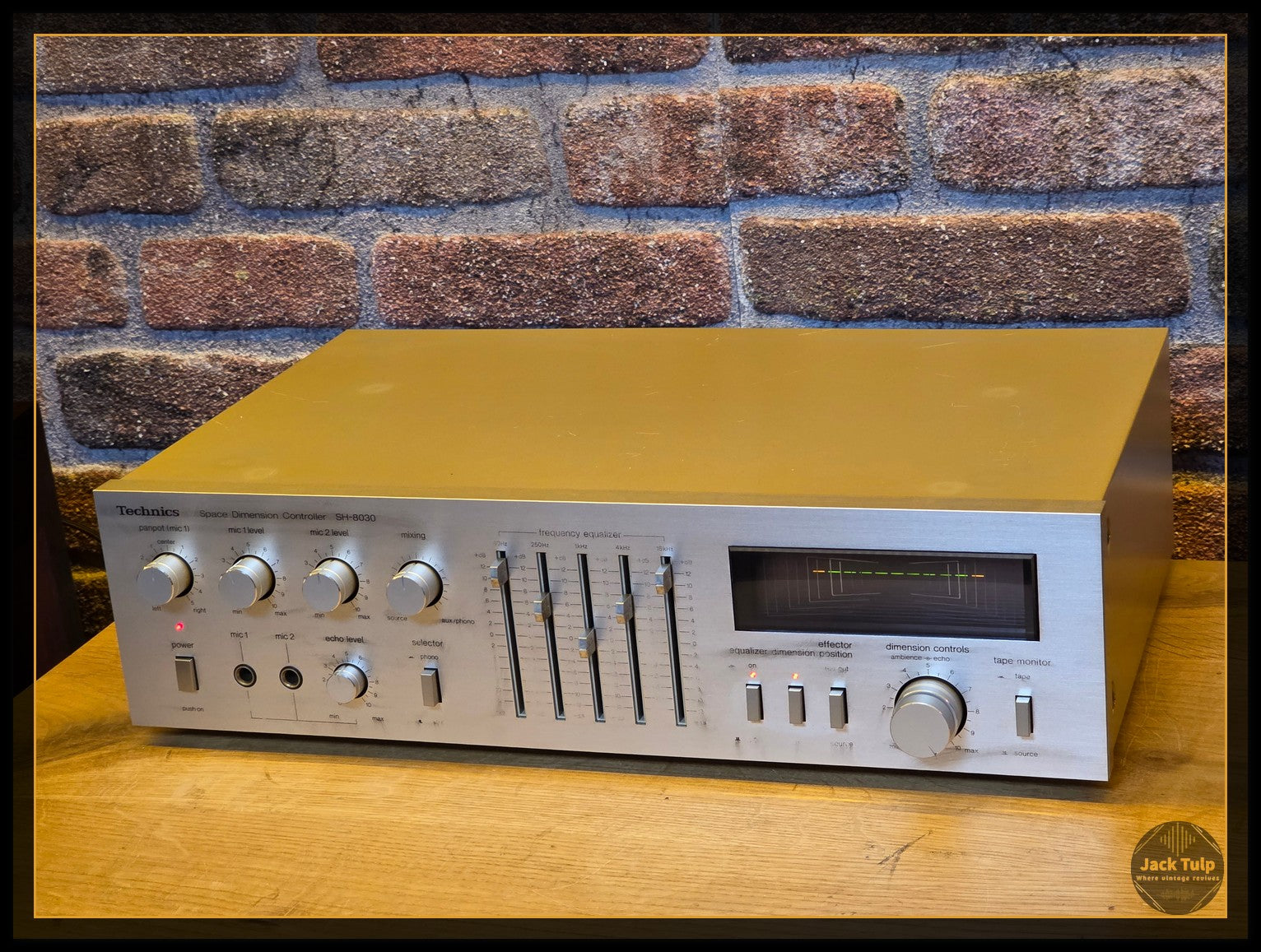

Technics SH-8030

Description

  • Type    Space Dimension Controller

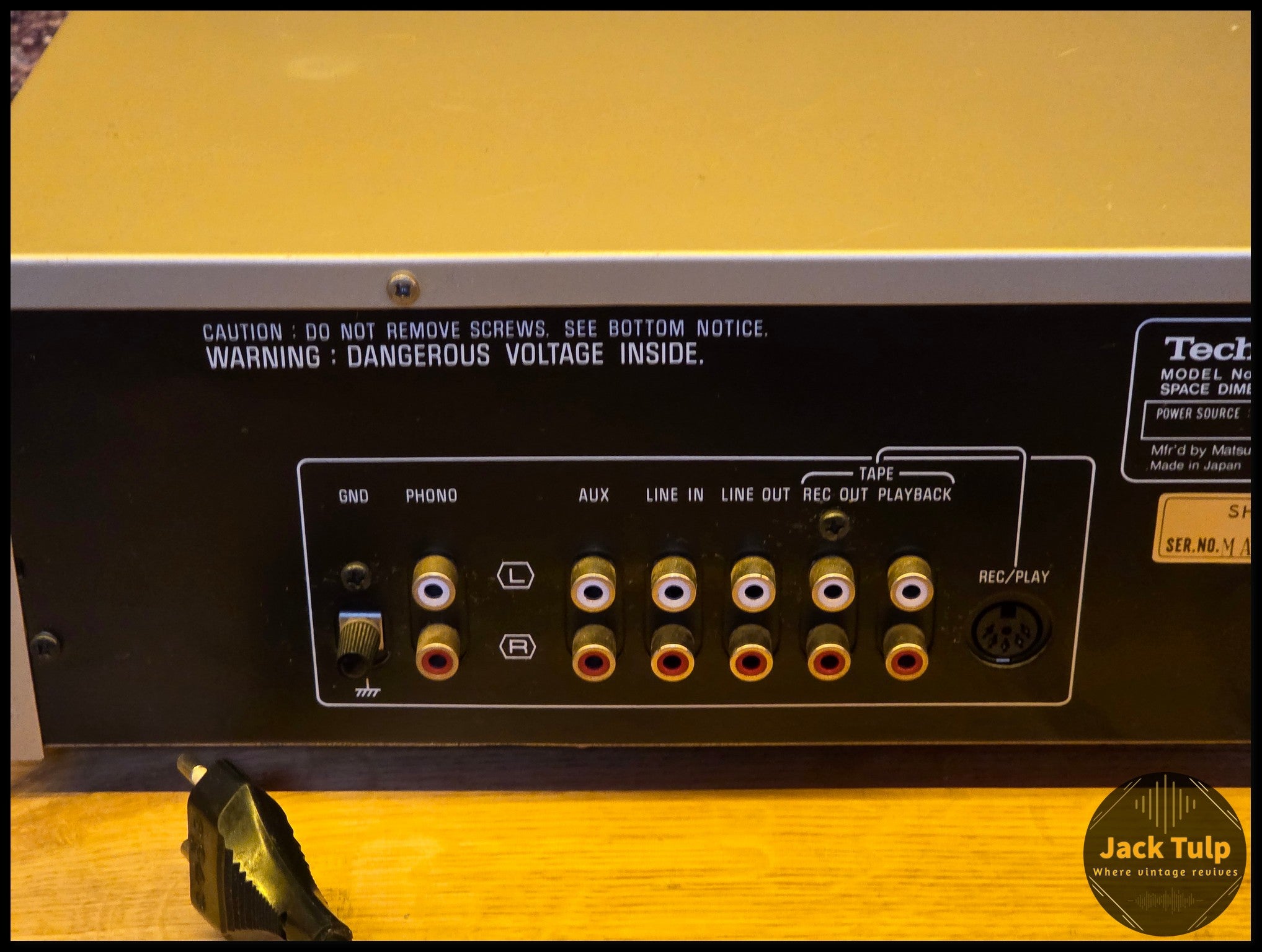

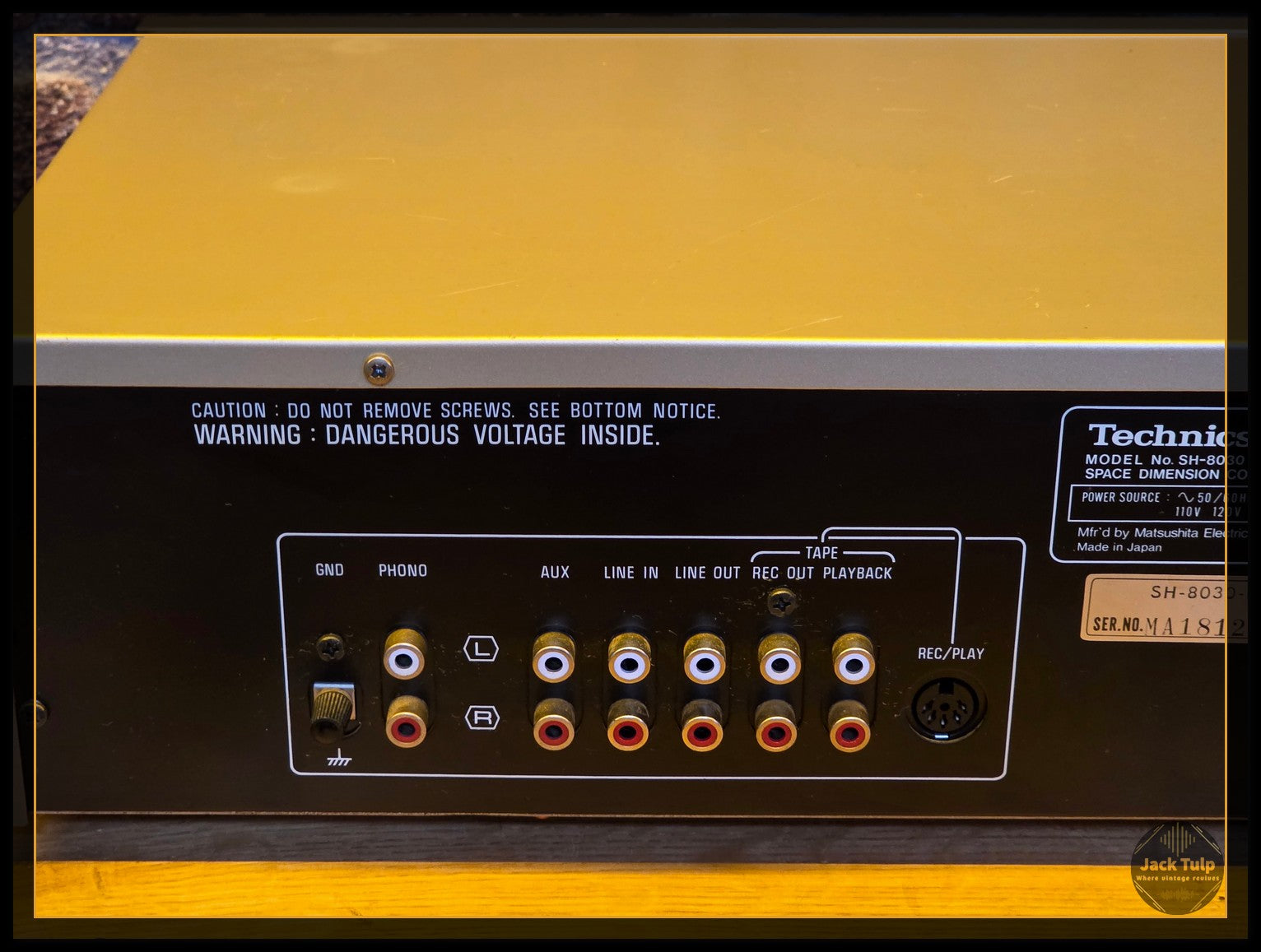

  • Input Sensitivity / Impedance    Line in, aux, tape : 150mV/30k Ω
  • Phono : 2.5mV/47k Ω
  • mic1, 2 : 1.5mv/10k Ω
  • Output Level / Impedance    Line out : 150mV/600 Ω
  • Rec out : 150mV/600 Ω
  • Total harmonic distortion factor    line in:0.005%
  • Signal-to-noise ratio    line in: 80dB
  • Frequency characteristic    Line in : 7 Hz to 150 kHz + 0 -3dB
  • Phono : 20 Hz to 20 kHz ± 0.5 dB
  • mic1, 2 : 35 Hz ~ 30 kHz + 0 -3dB

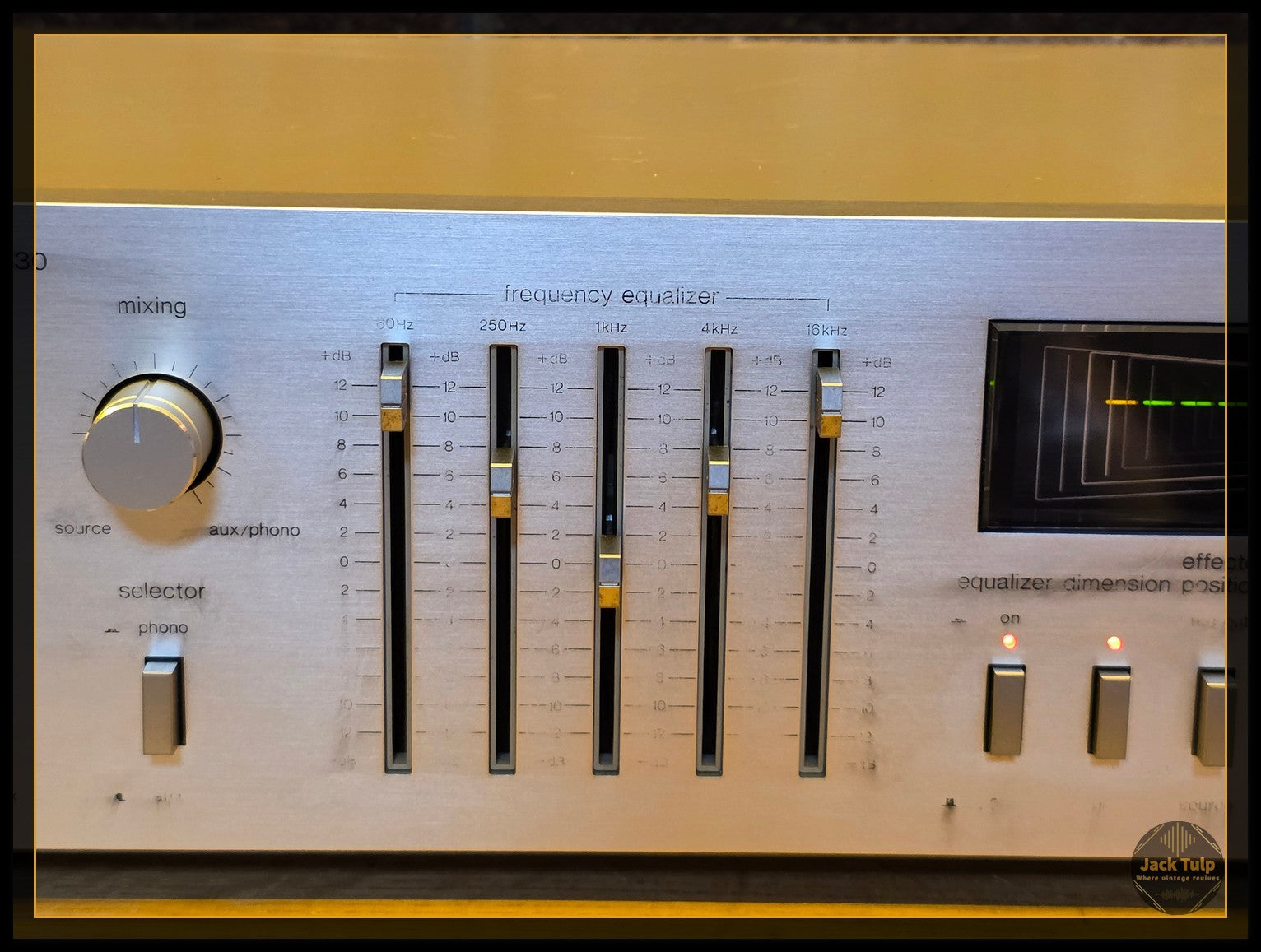

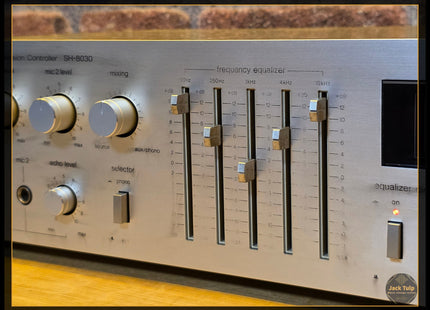

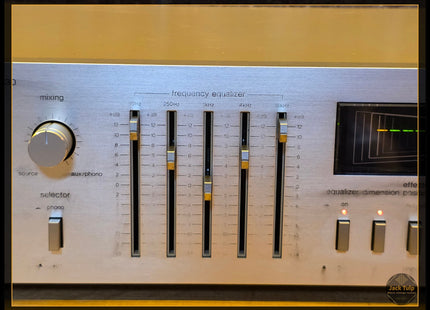

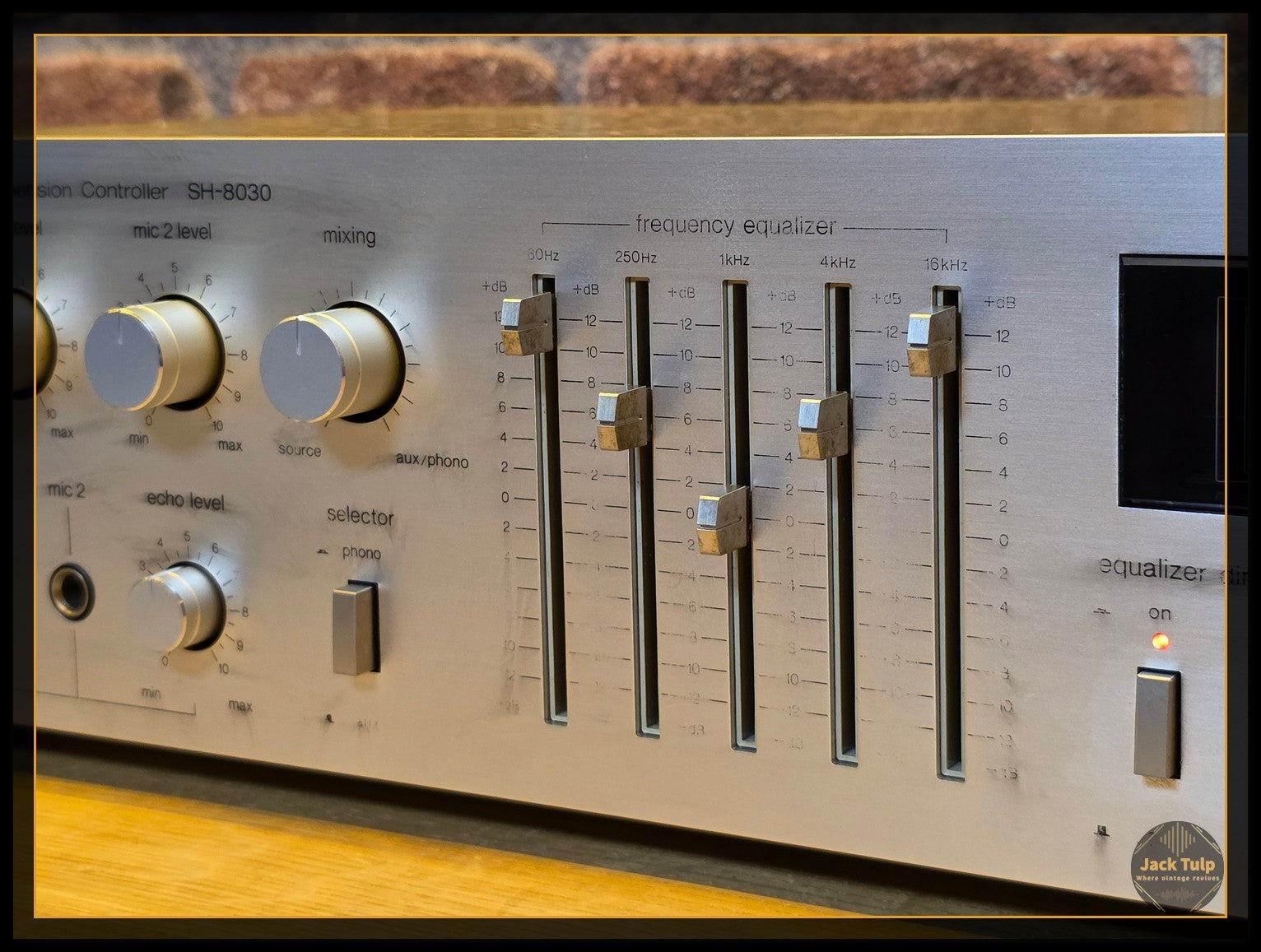

  • Band level control    ± 12 dB

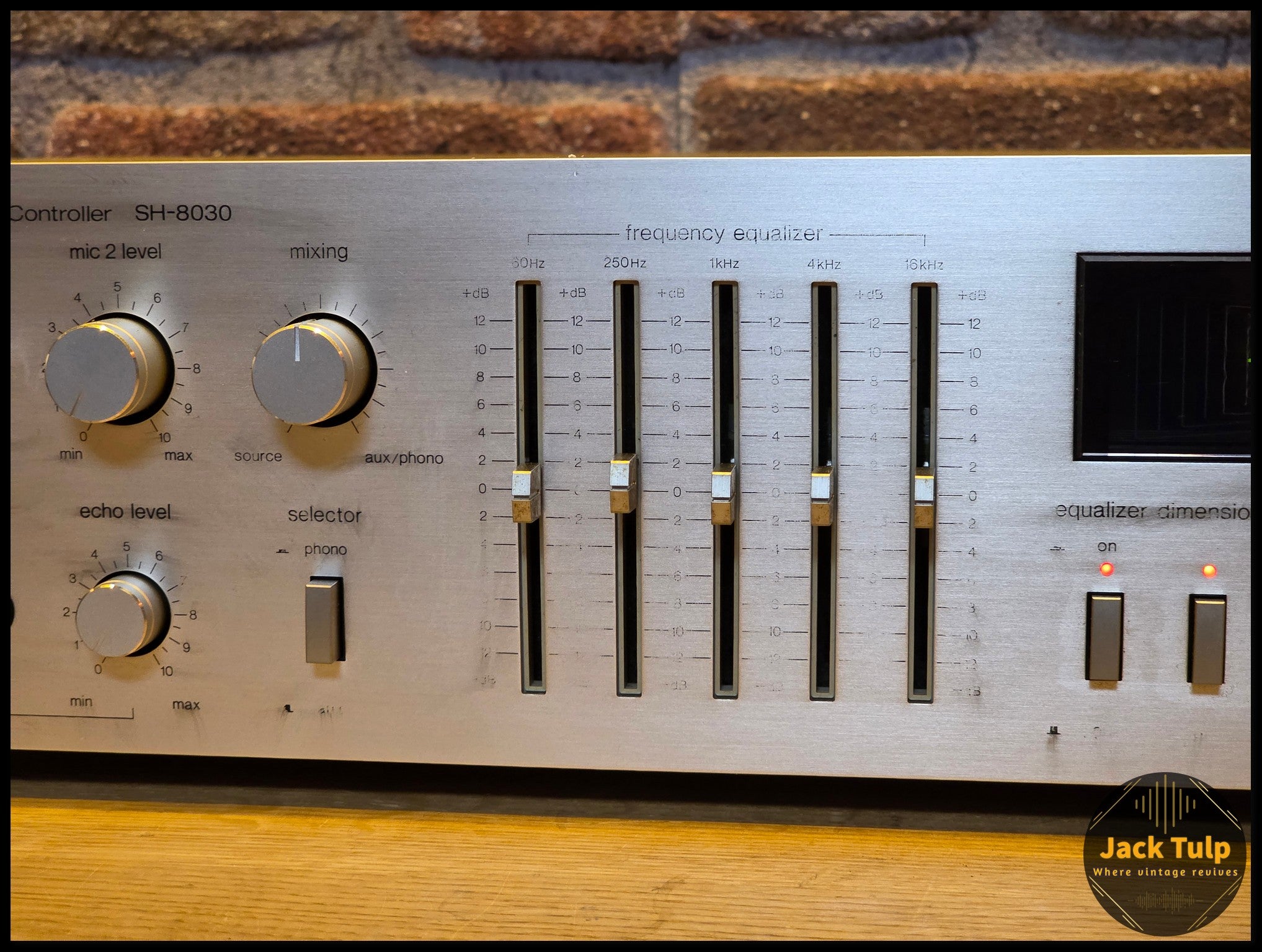

  • Center frequency    60 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz
  • External dimensions    Width 430x Height 120x Depth 280 mm
  • Weight    4.8kg

Technics SH-8030

Product form
    • Color: Silver

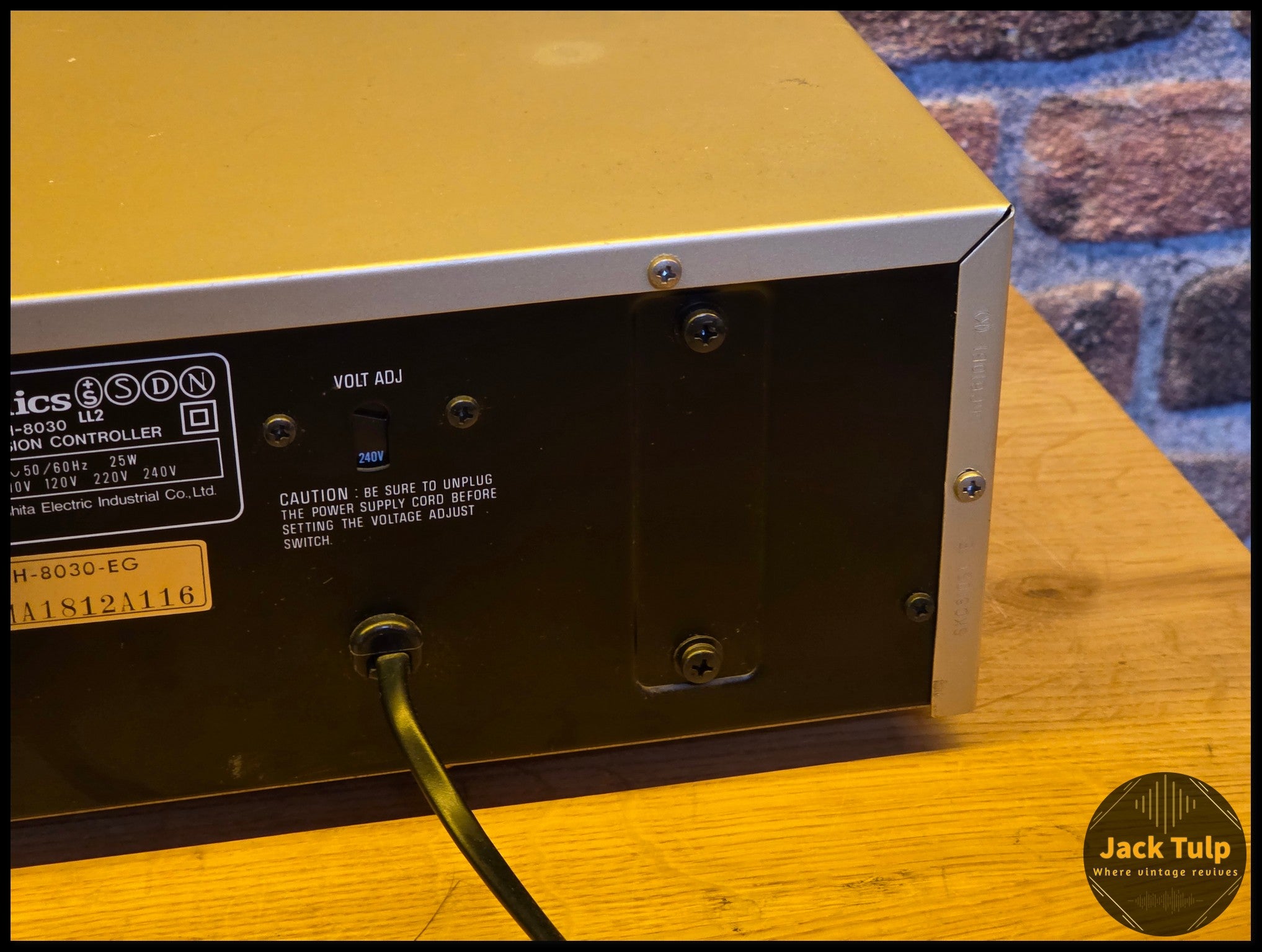

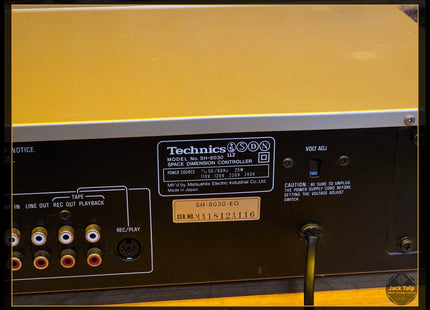

    • Input voltage: AC 110v / 127v / 220v / 240v 50/60Hz
    • Technical condition: 10/10
    • Cosmetical condition: 7/10
    • Year: 80's

€239,00 Incl. VAT

    Description

    • Type    Space Dimension Controller
    • Input Sensitivity / Impedance    Line in, aux, tape : 150mV/30k Ω
    • Phono : 2.5mV/47k Ω
    • mic1, 2 : 1.5mv/10k Ω
    • Output Level / Impedance    Line out : 150mV/600 Ω
    • Rec out : 150mV/600 Ω
    • Total harmonic distortion factor    line in:0.005%
    • Signal-to-noise ratio    line in: 80dB
    • Frequency characteristic    Line in : 7 Hz to 150 kHz + 0 -3dB
    • Phono : 20 Hz to 20 kHz ± 0.5 dB
    • mic1, 2 : 35 Hz ~ 30 kHz + 0 -3dB
    • Band level control    ± 12 dB
    • Center frequency    60 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz
    • External dimensions    Width 430x Height 120x Depth 280 mm
    • Weight    4.8kg
