Description

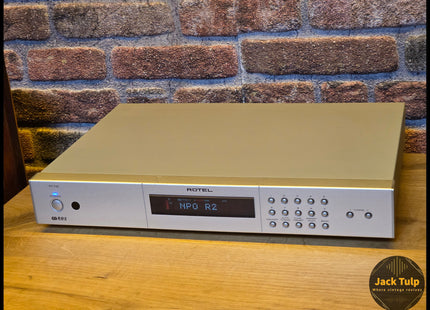

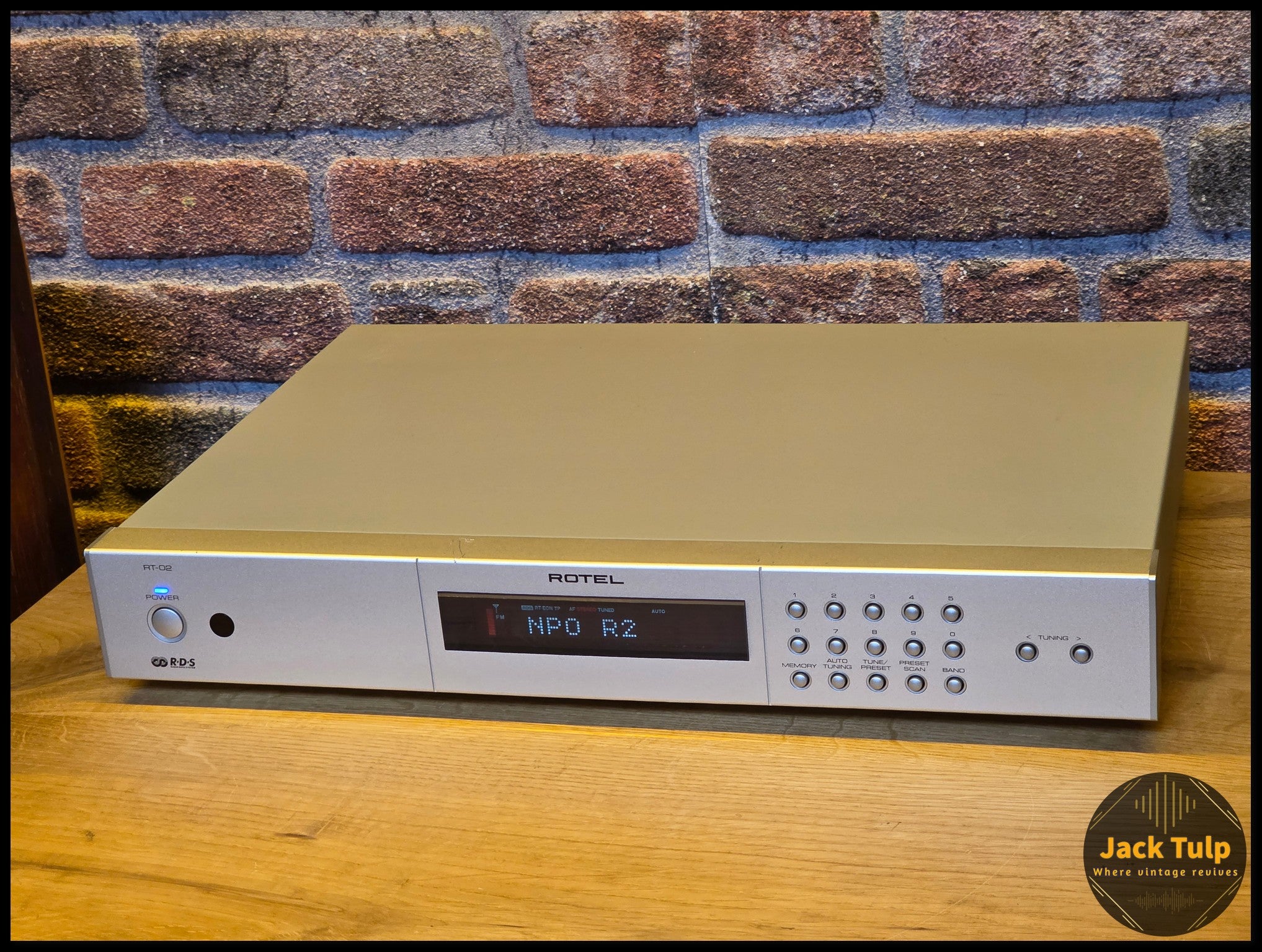

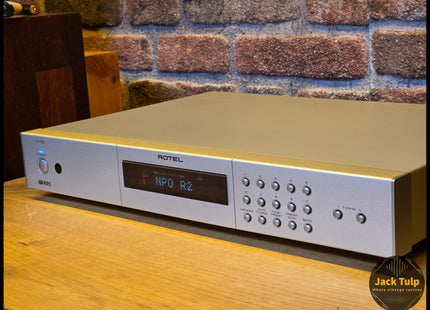

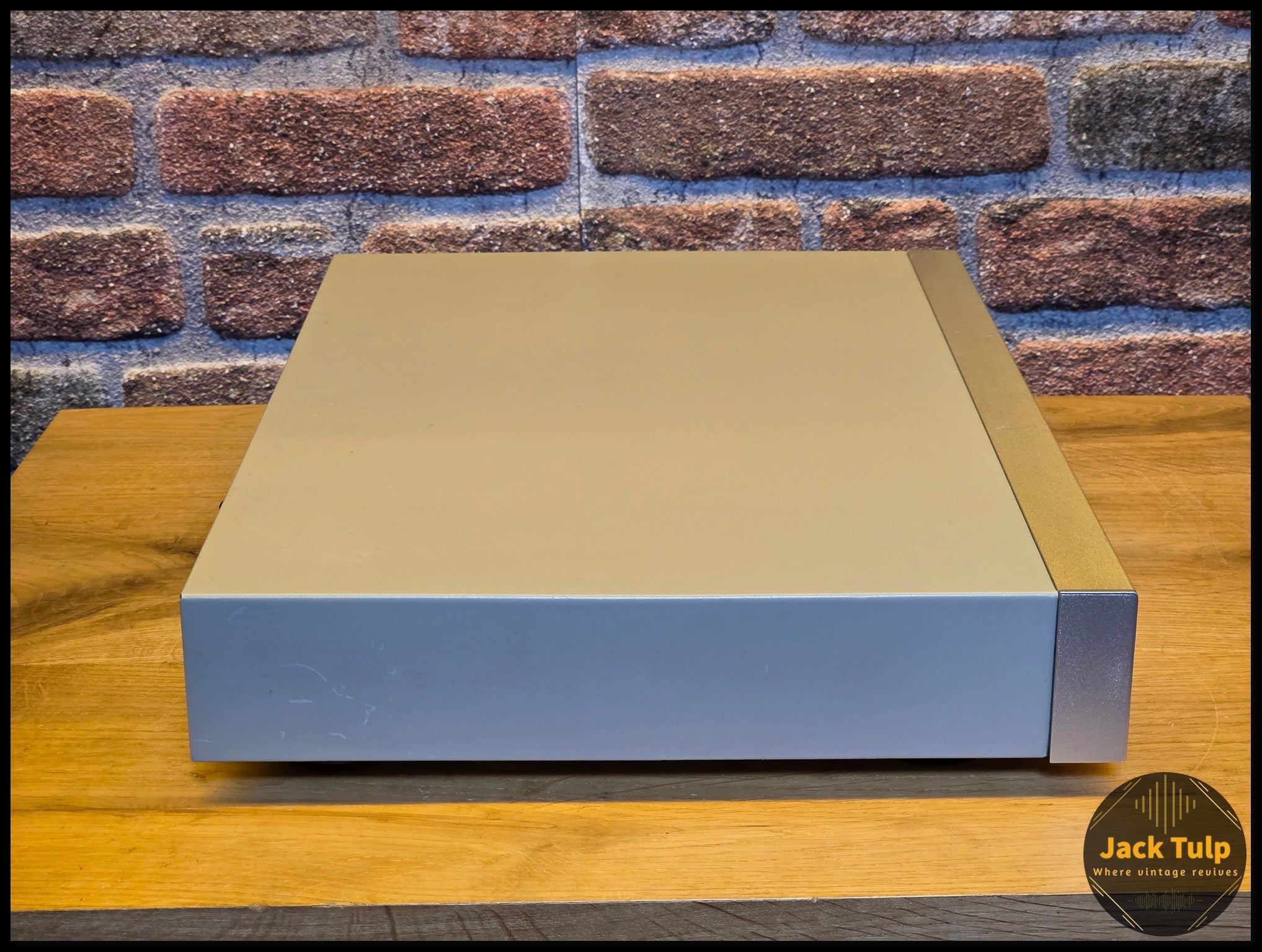

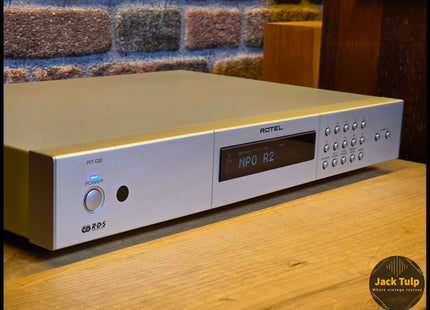

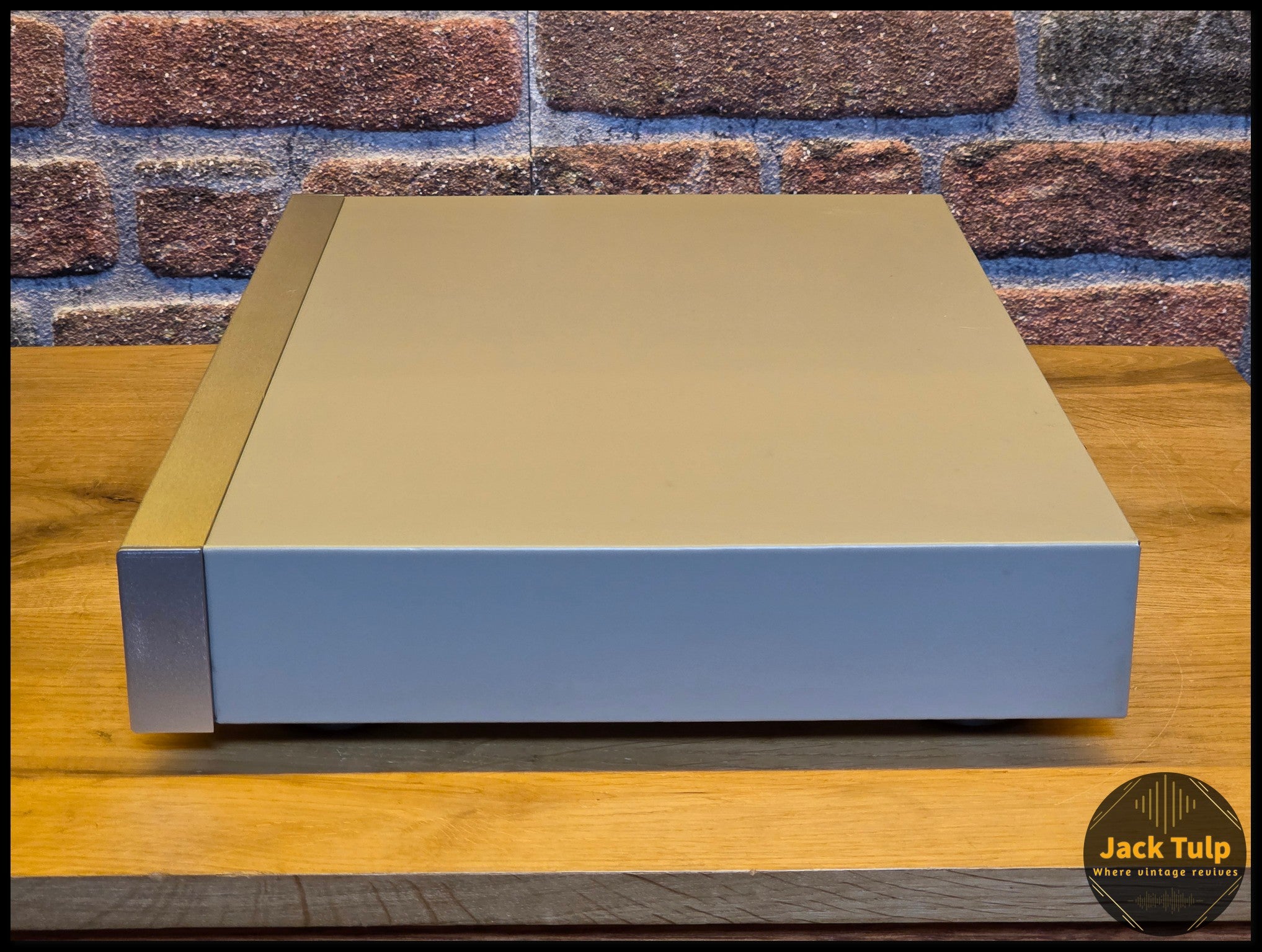

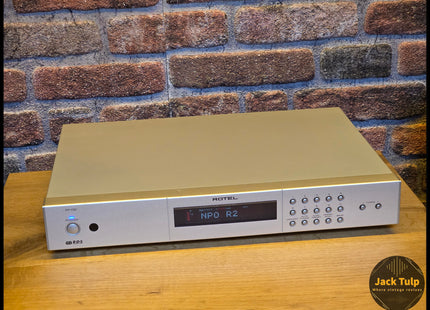

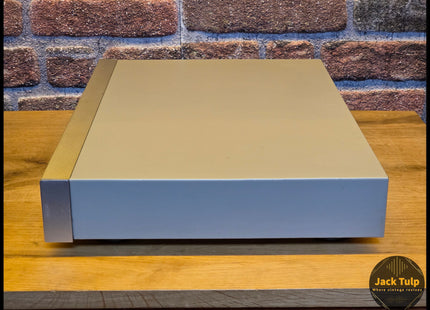

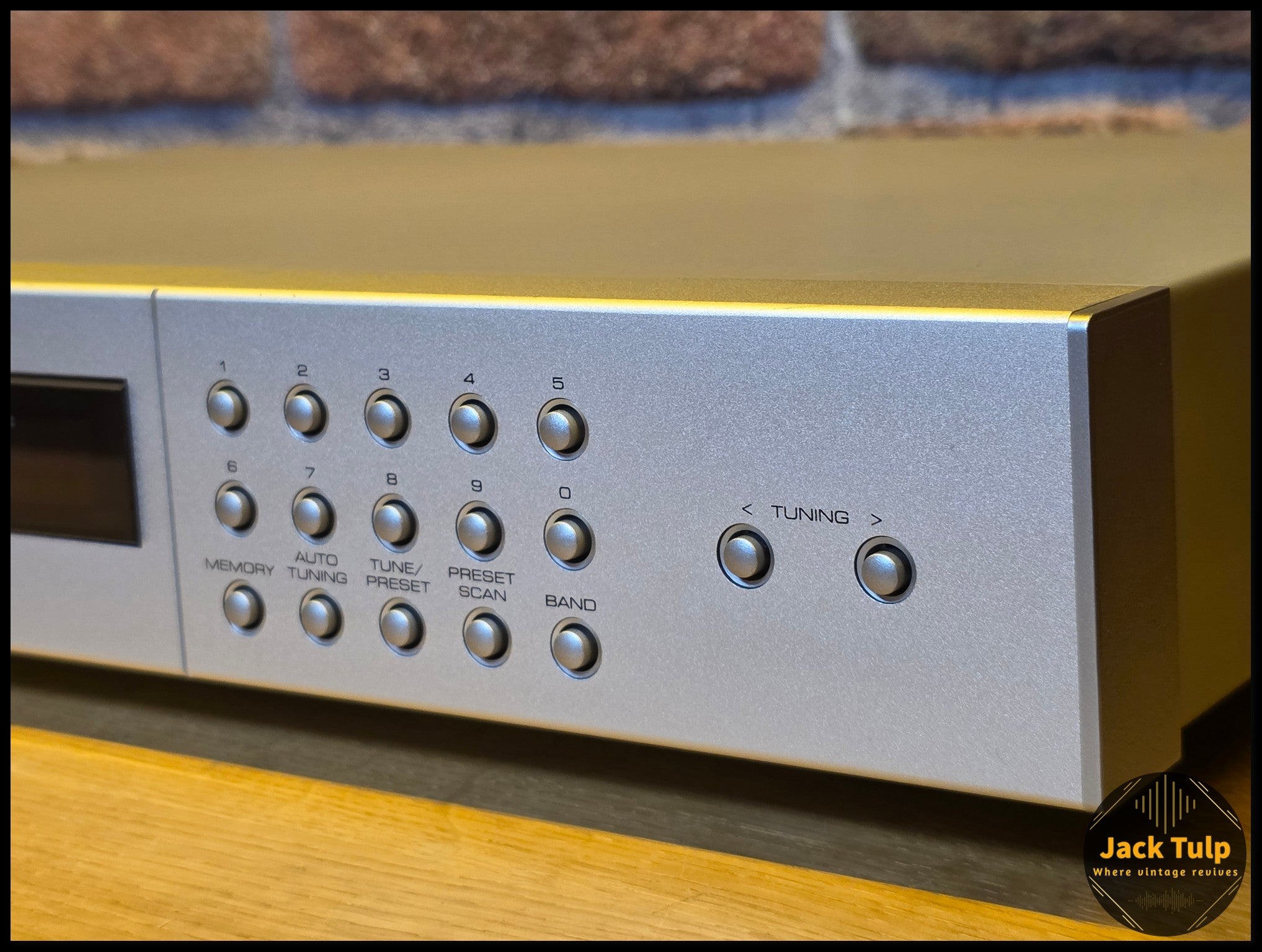

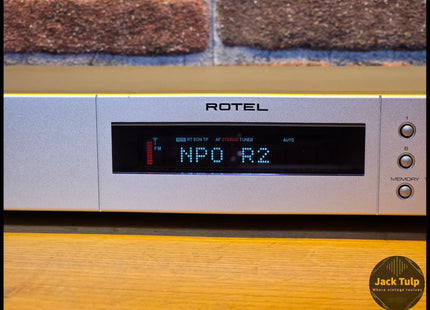

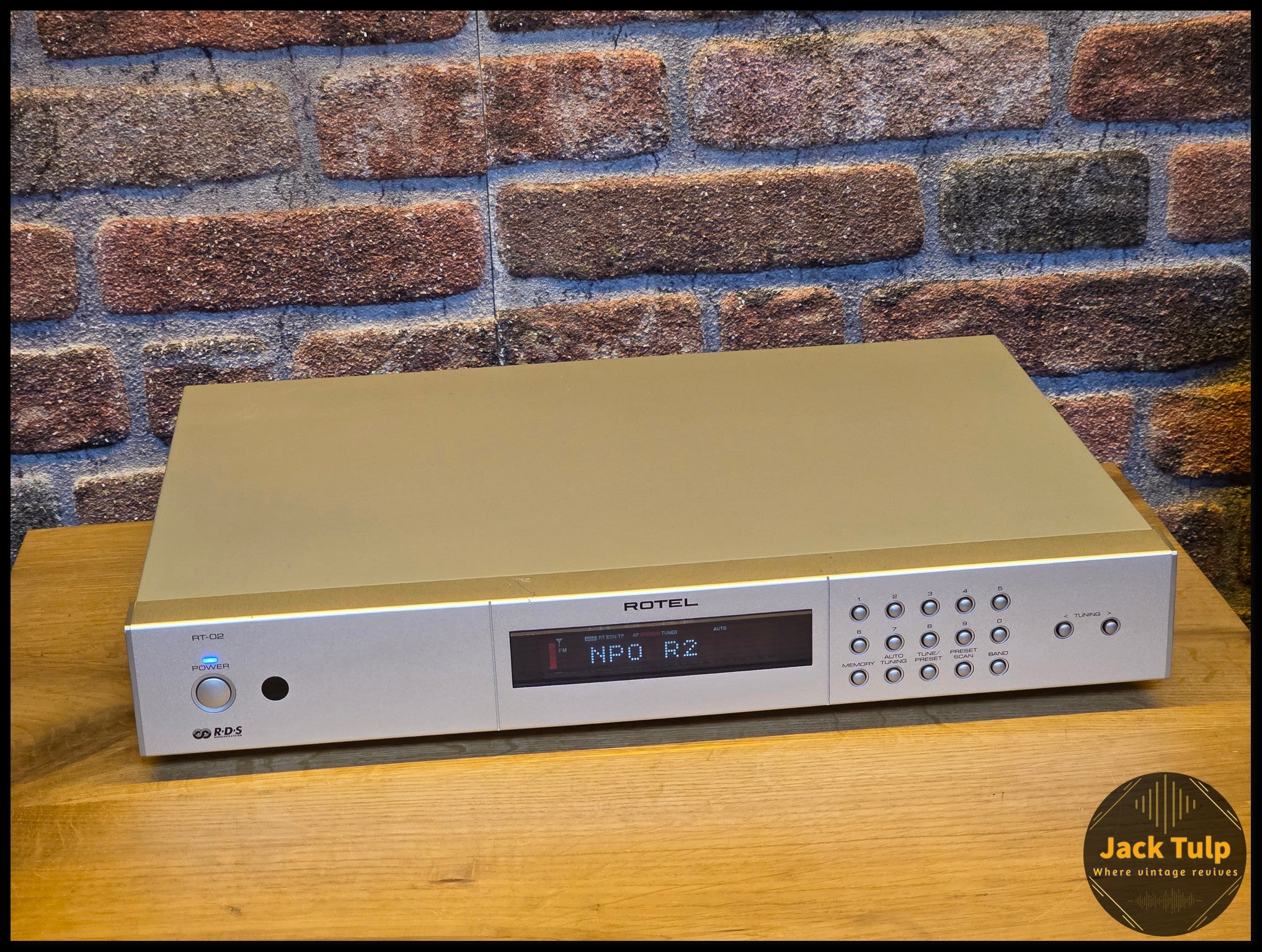

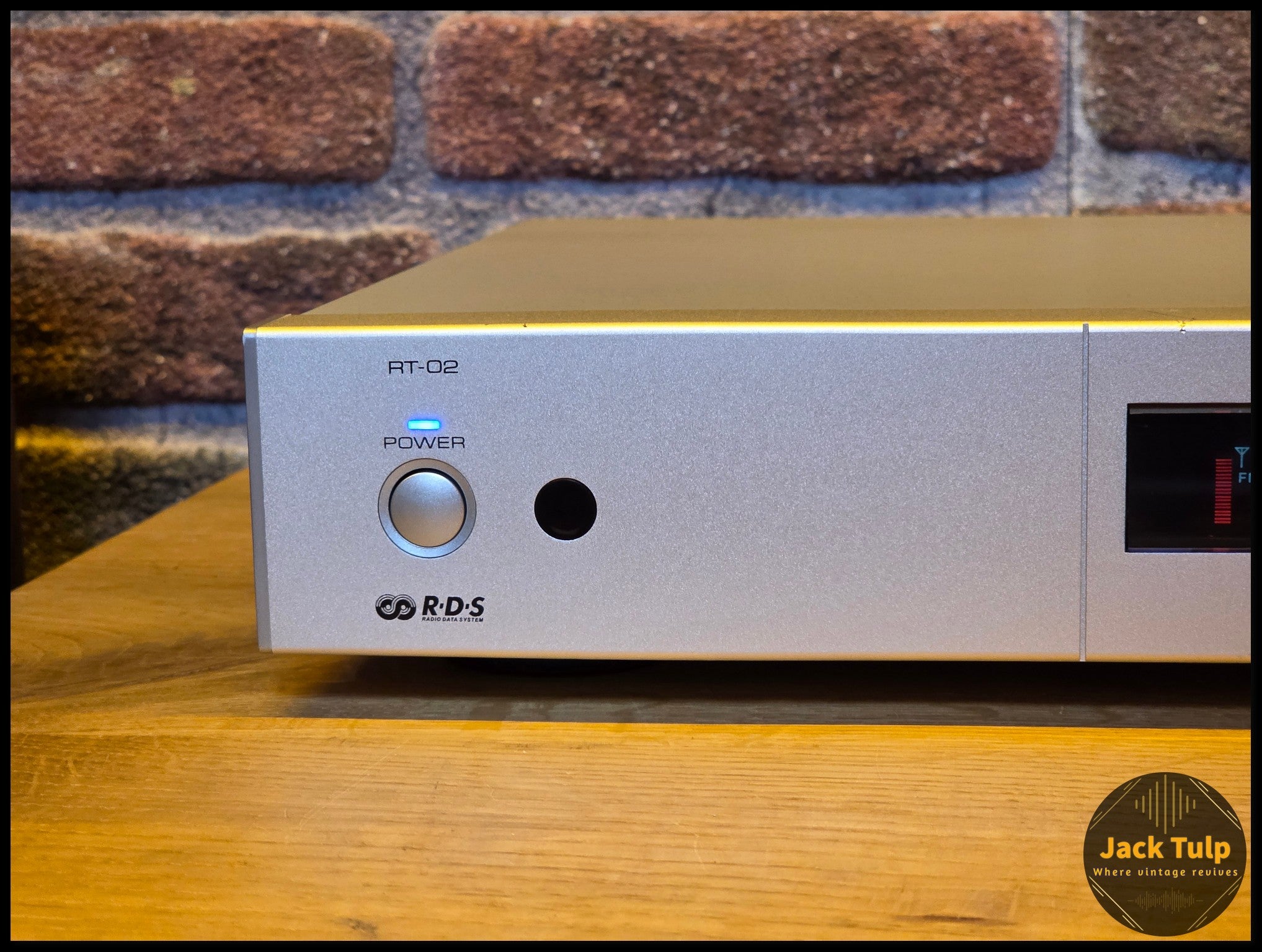

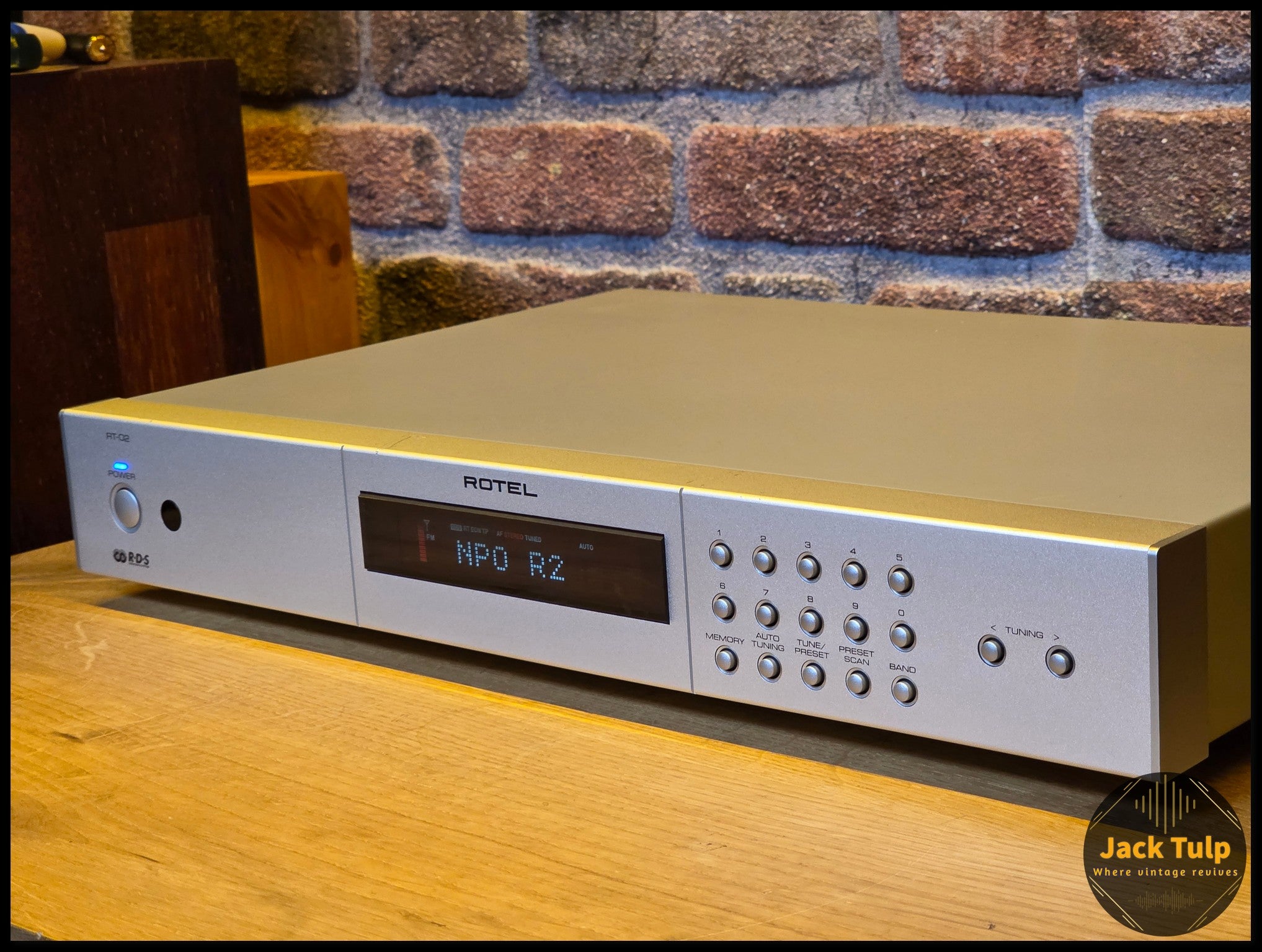

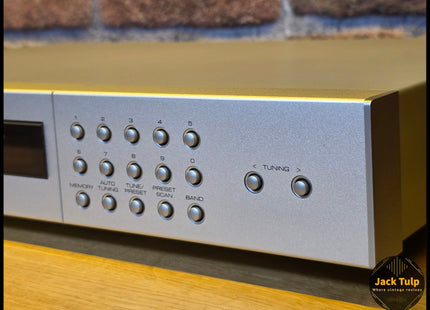

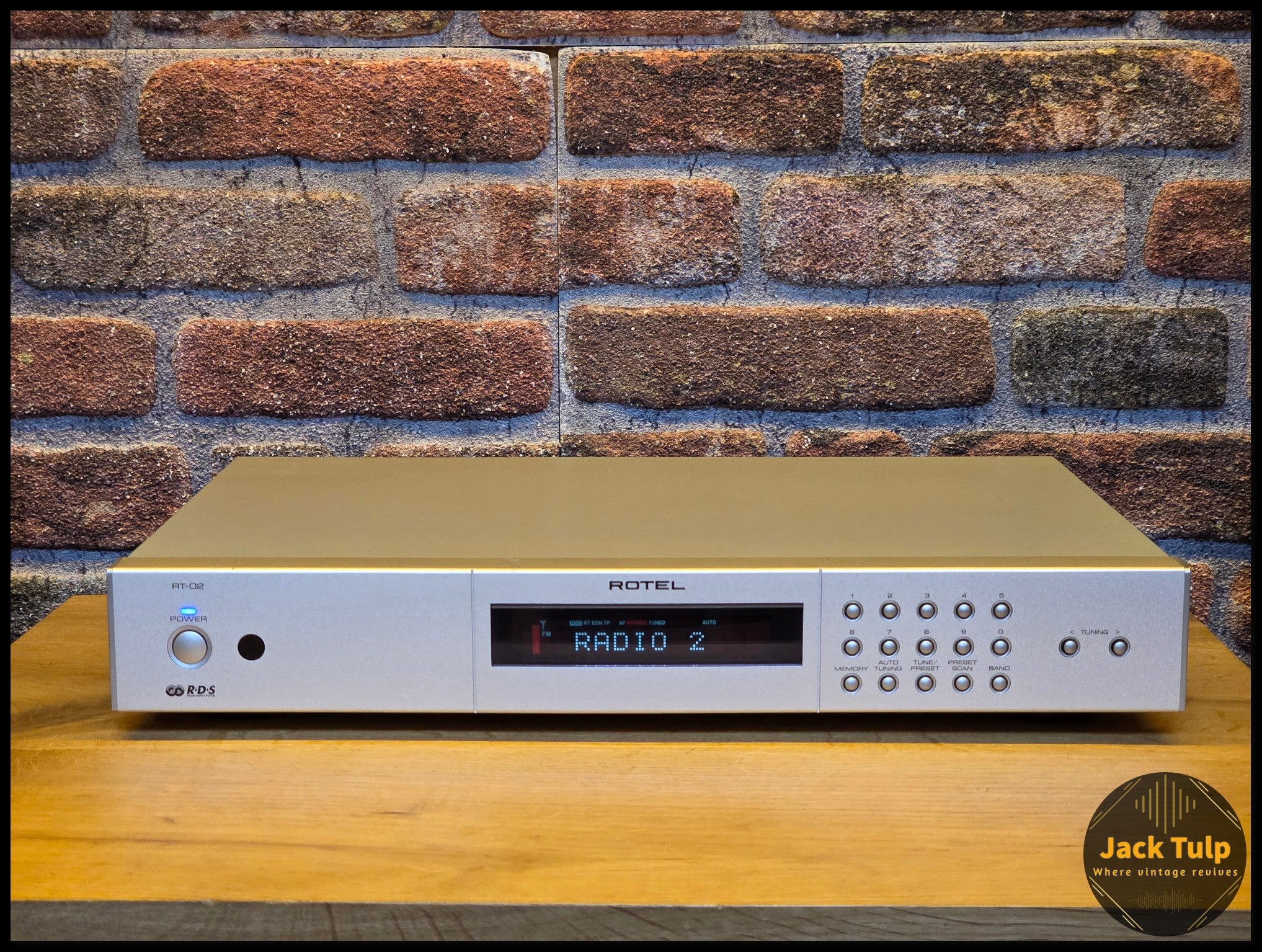

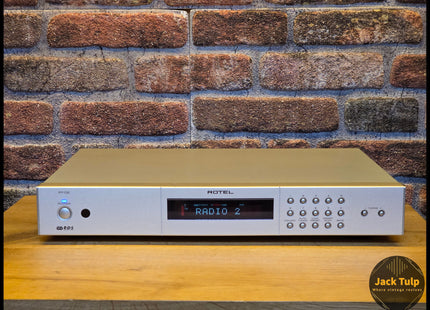

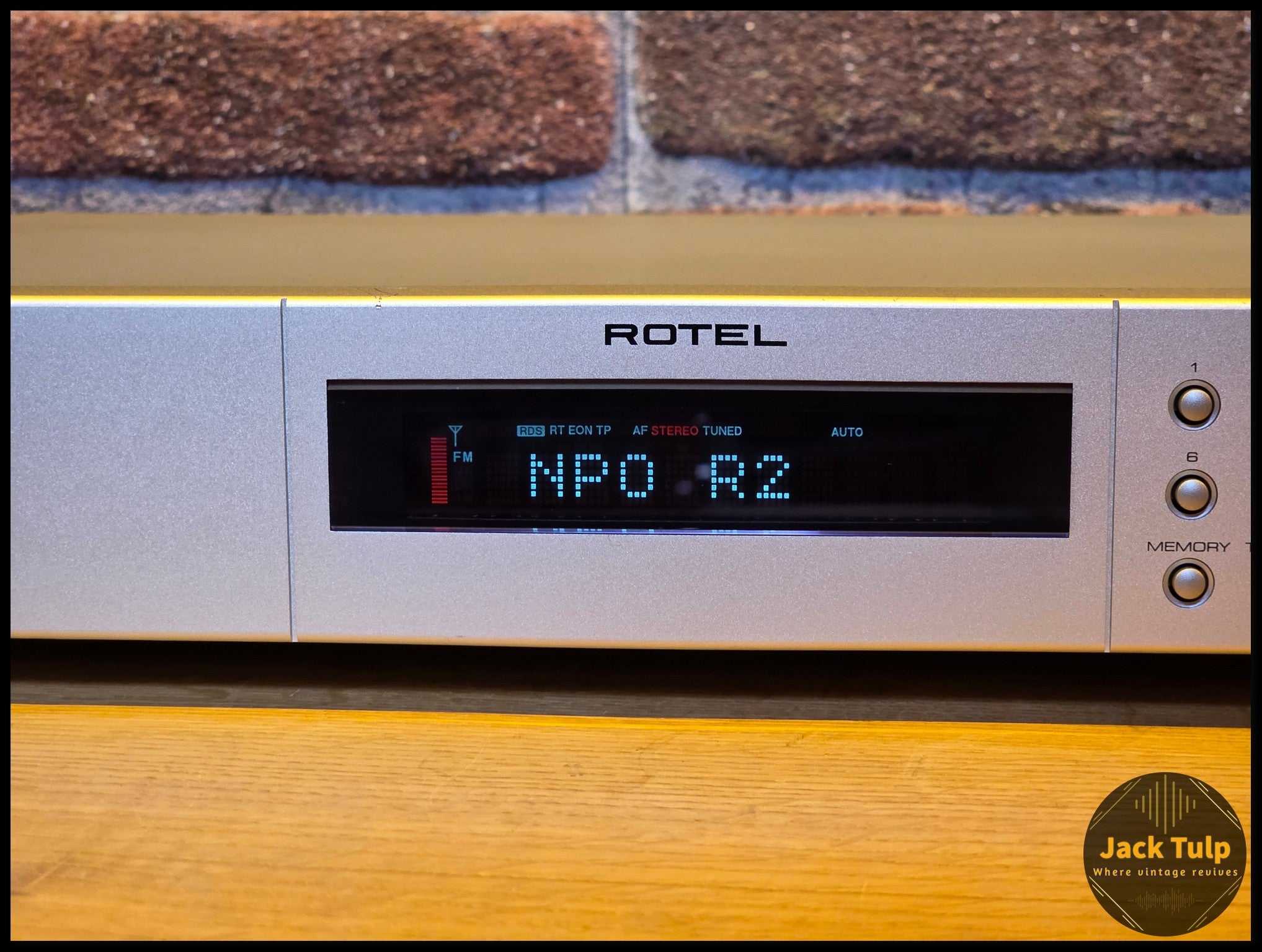

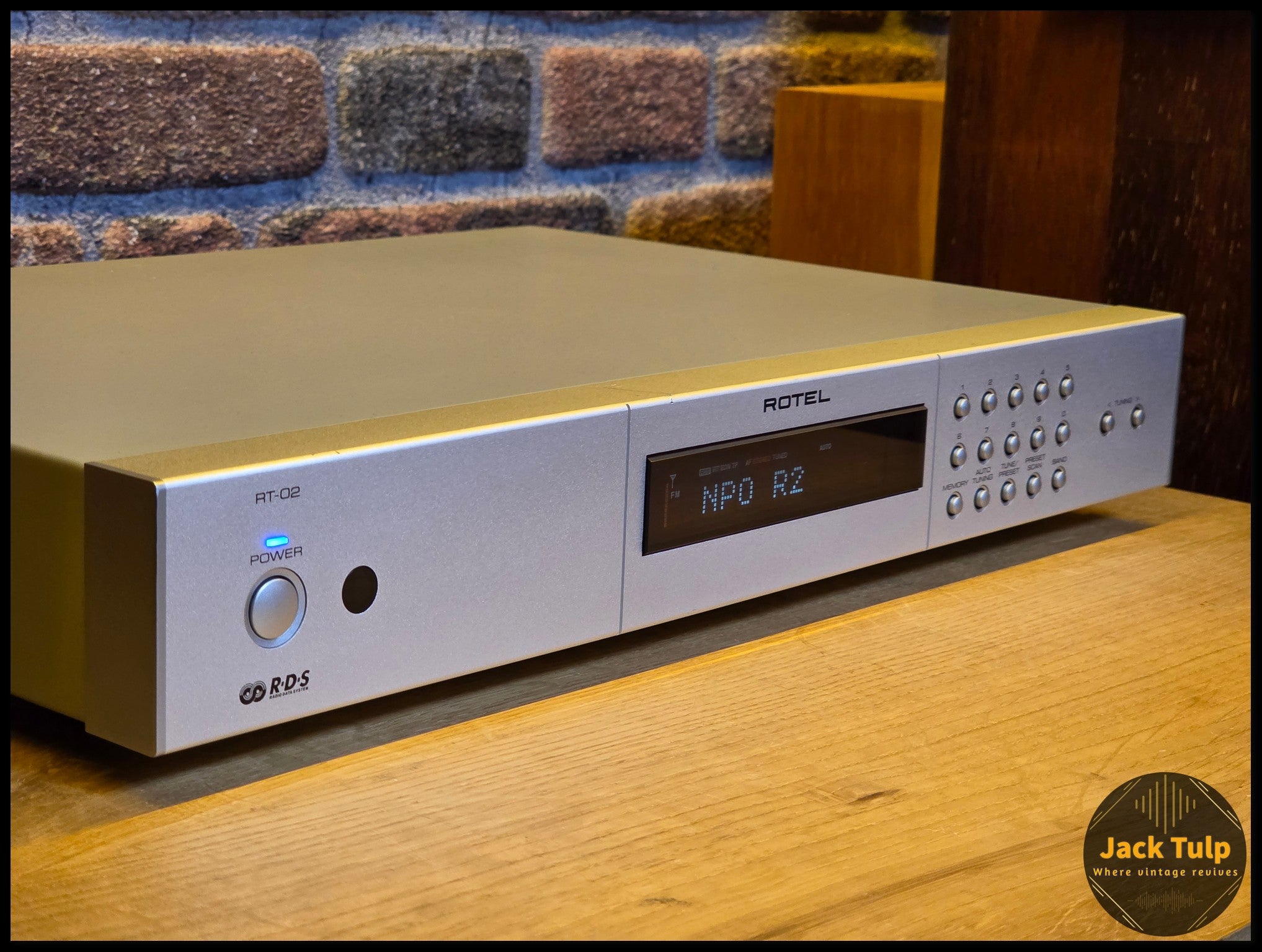

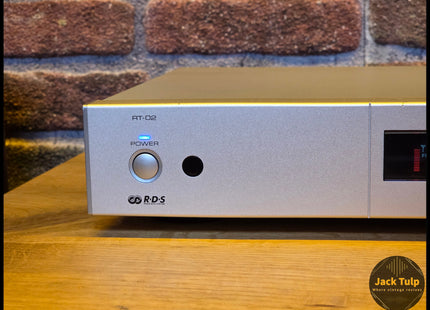

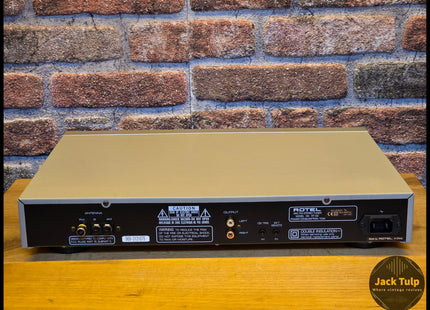

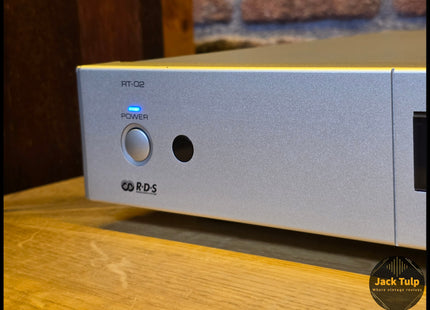

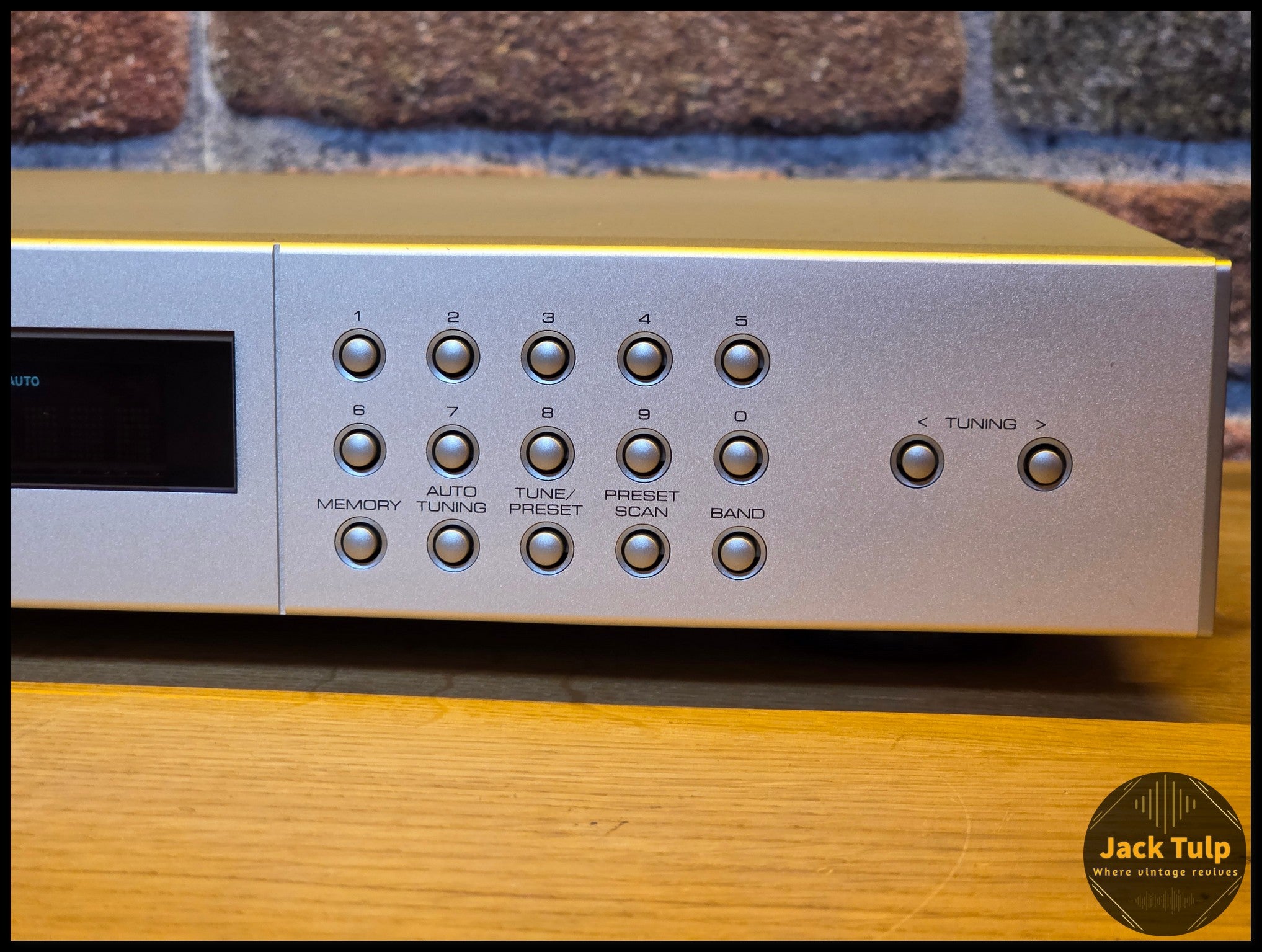

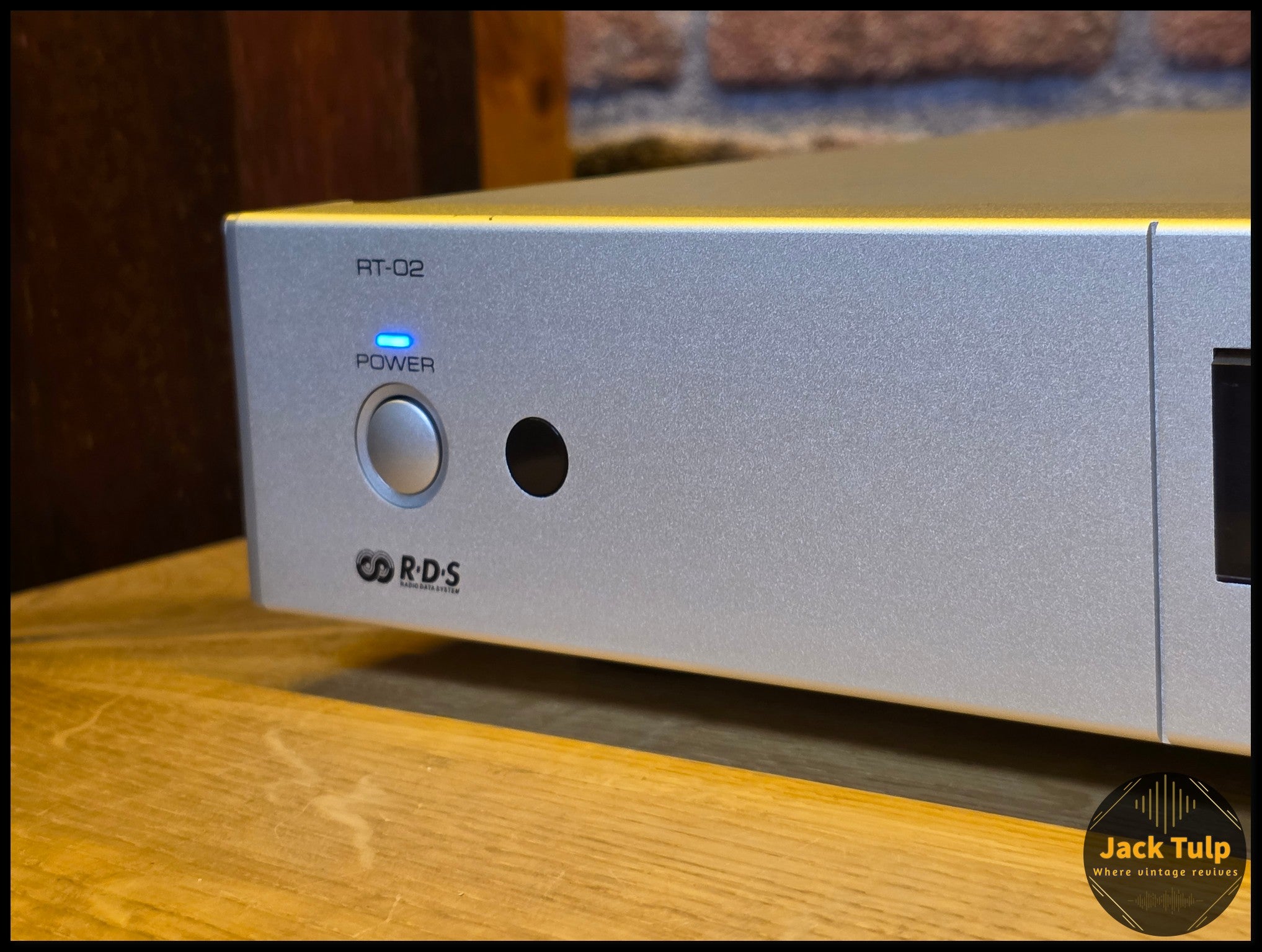

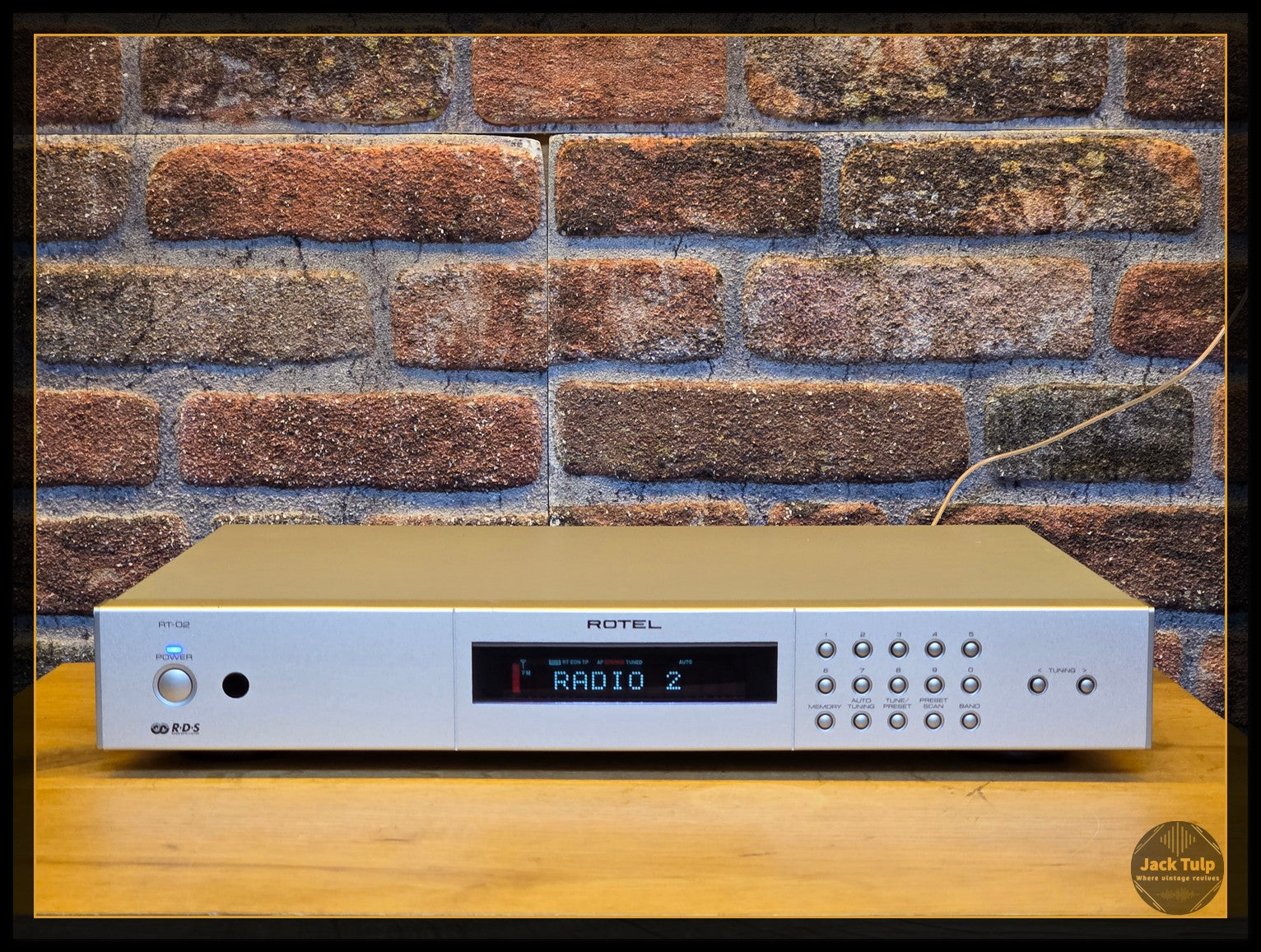

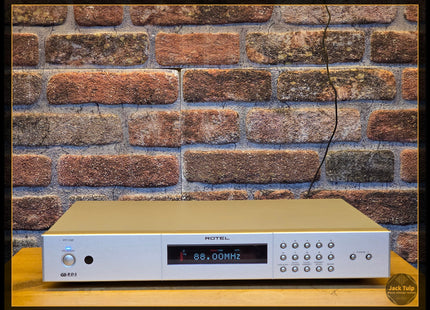

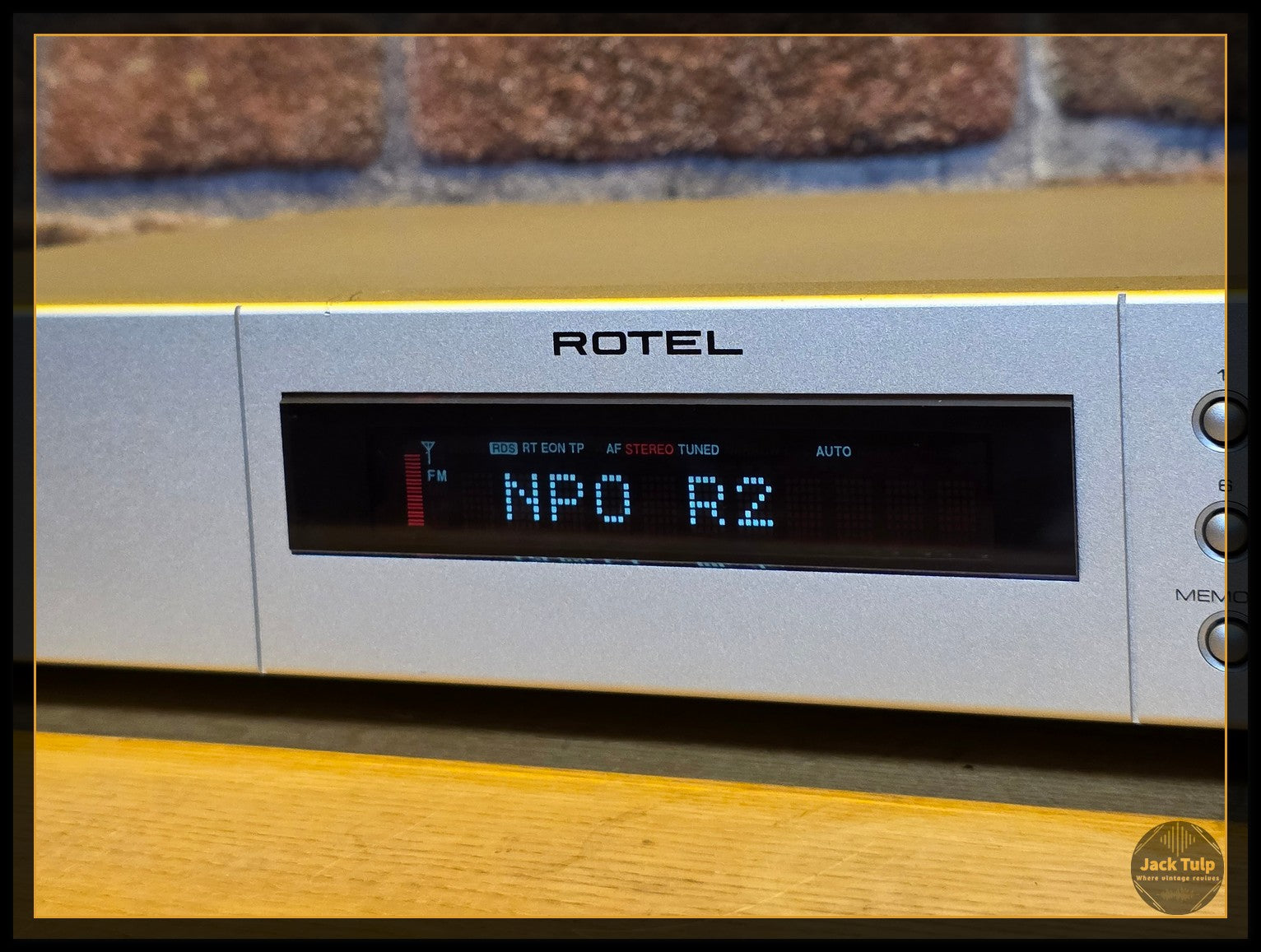

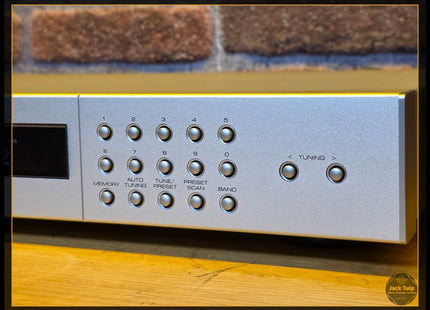

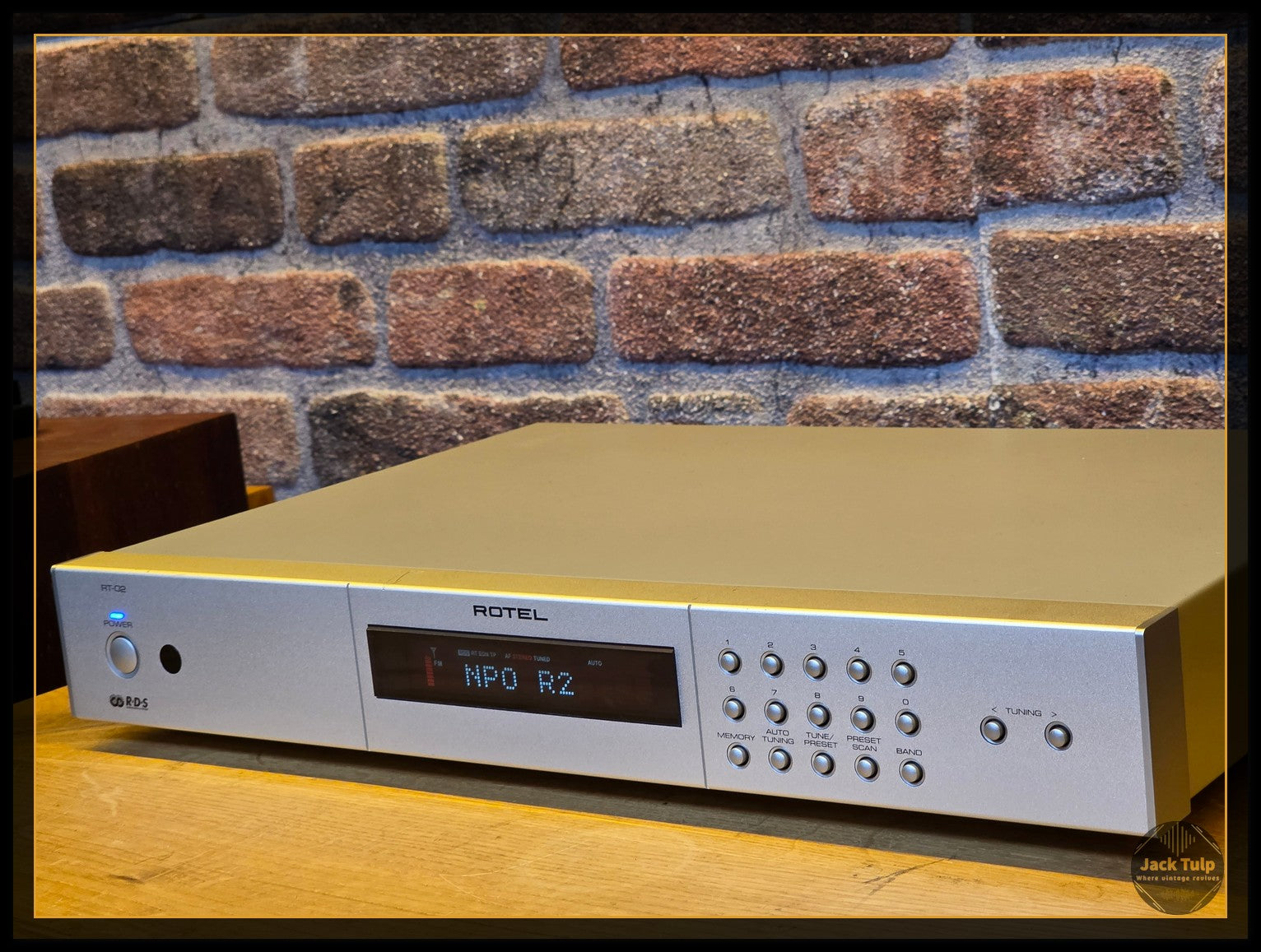

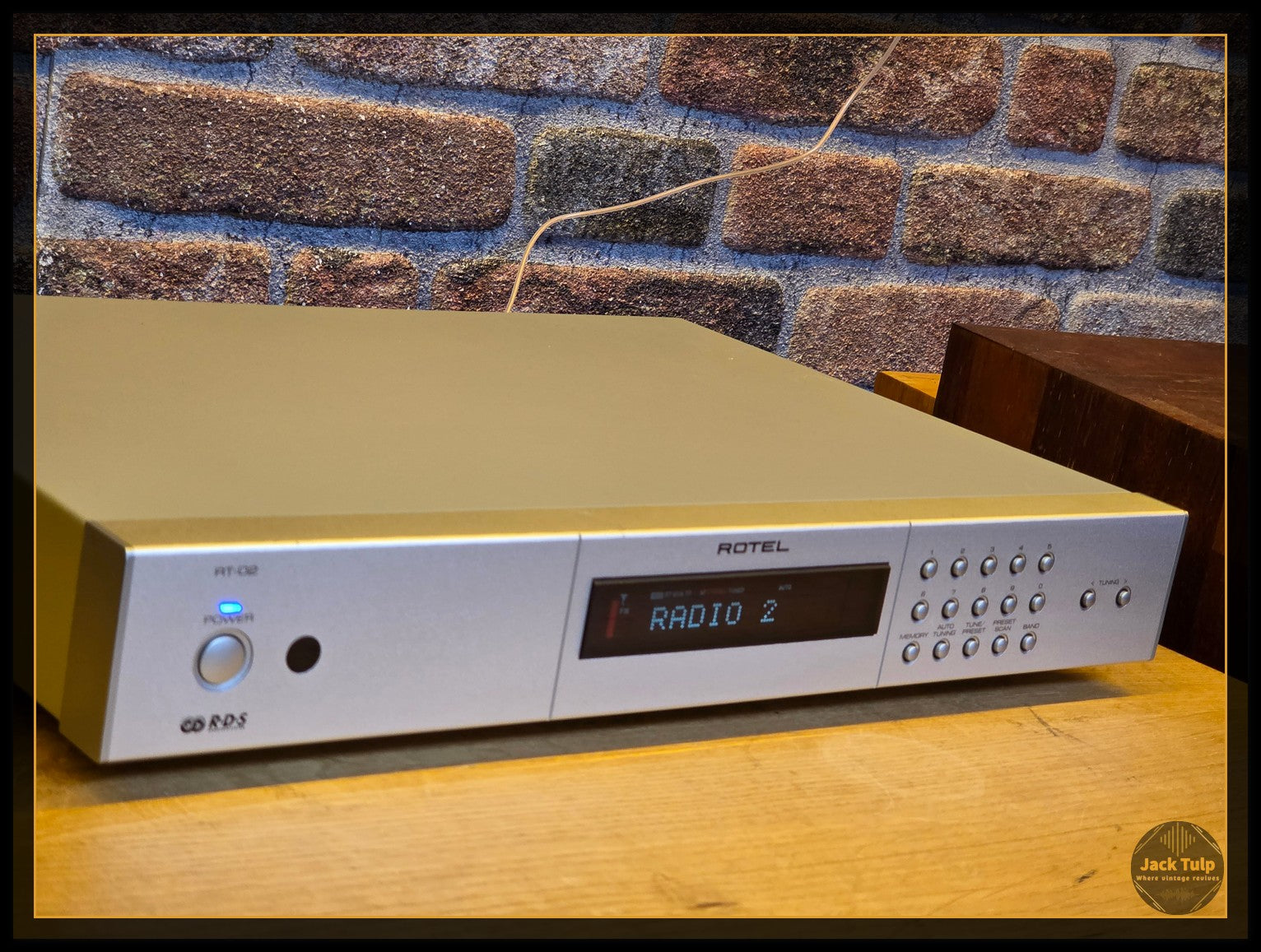

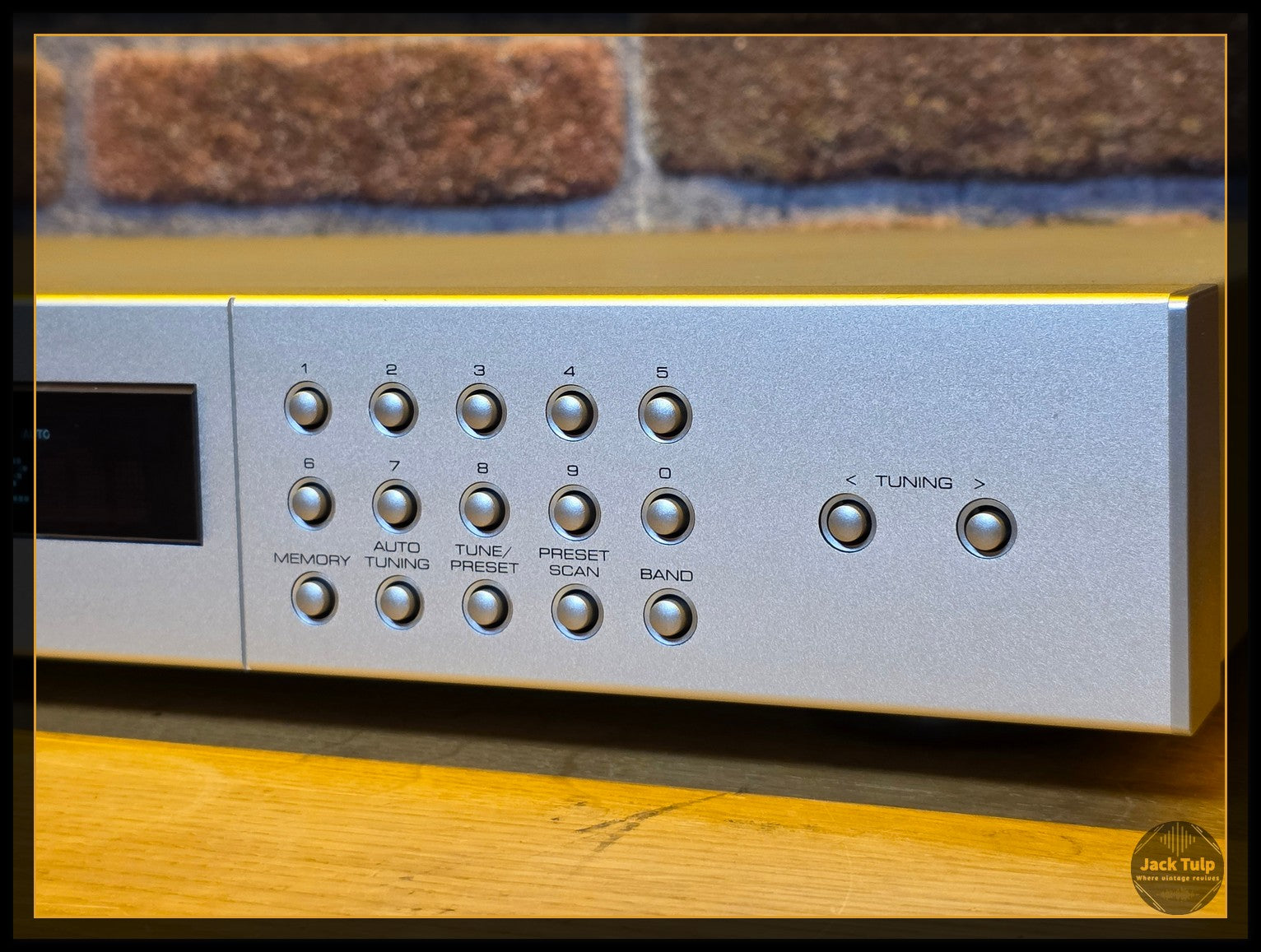

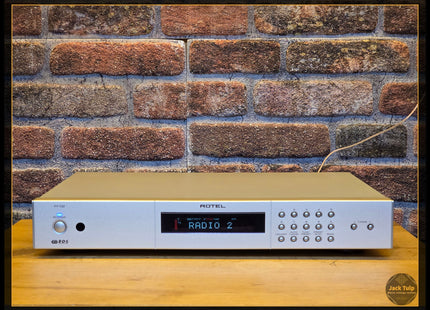

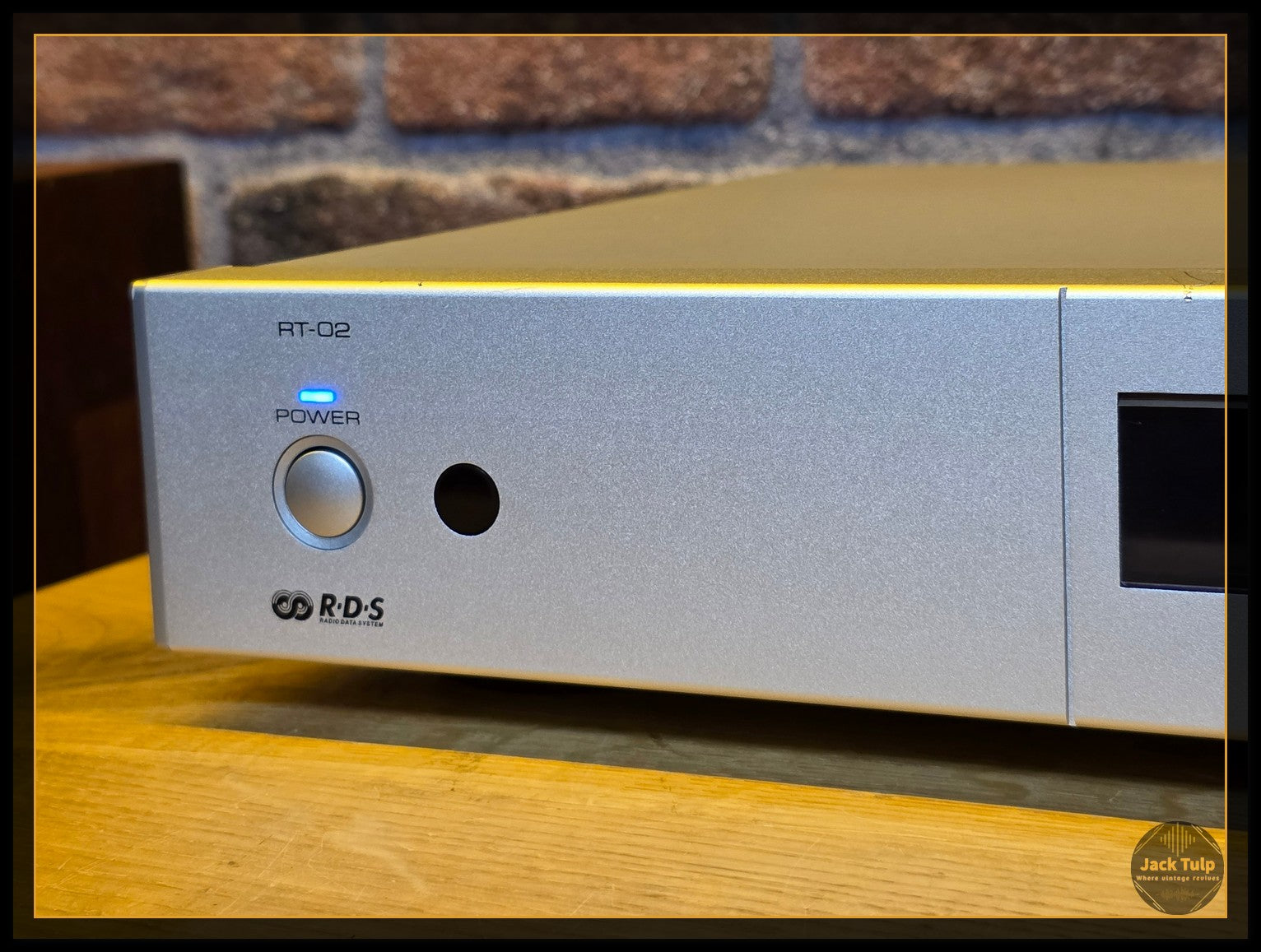

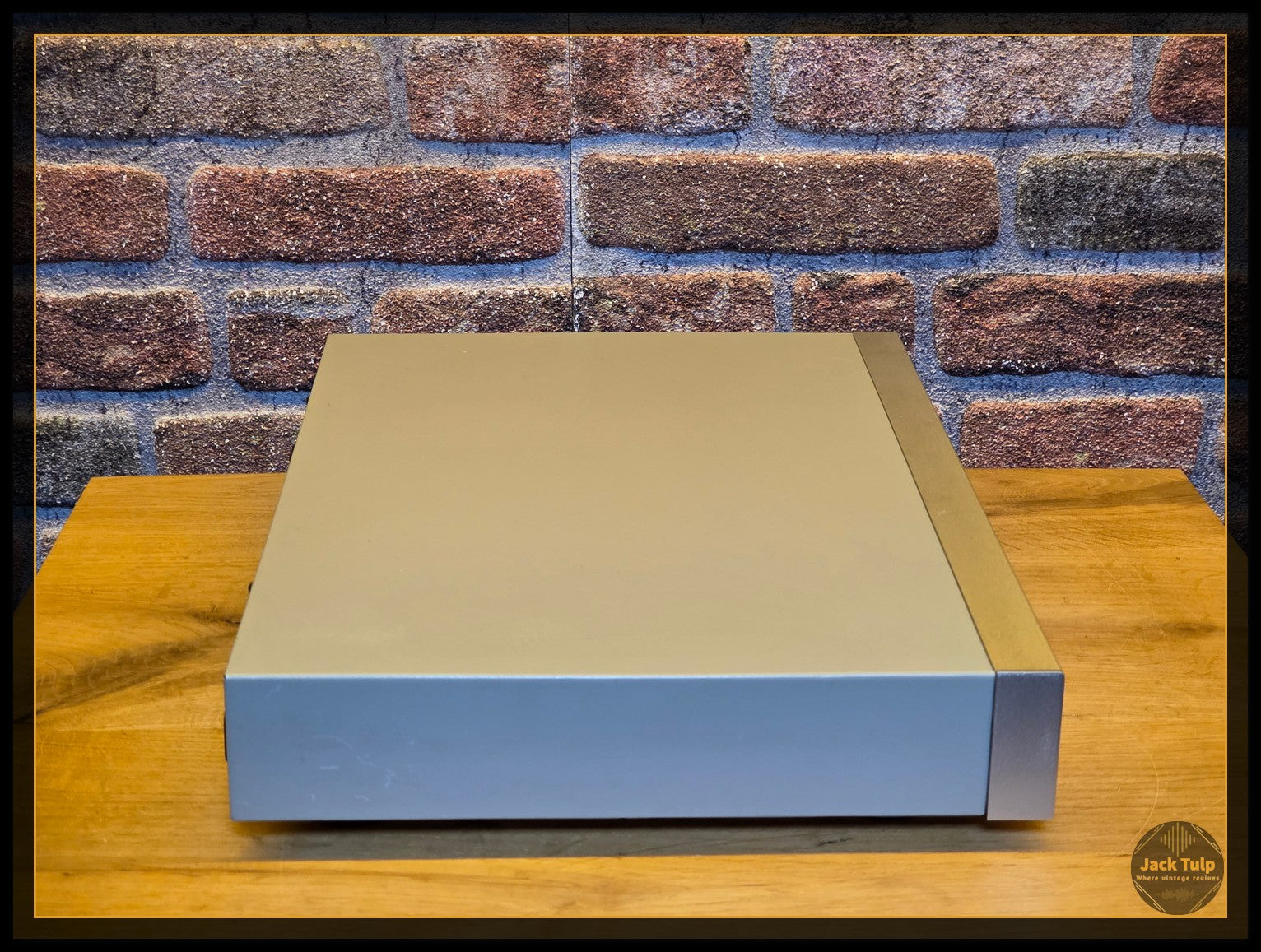

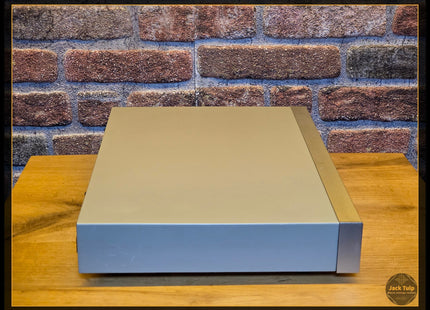

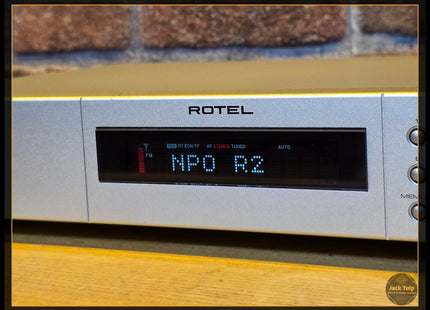

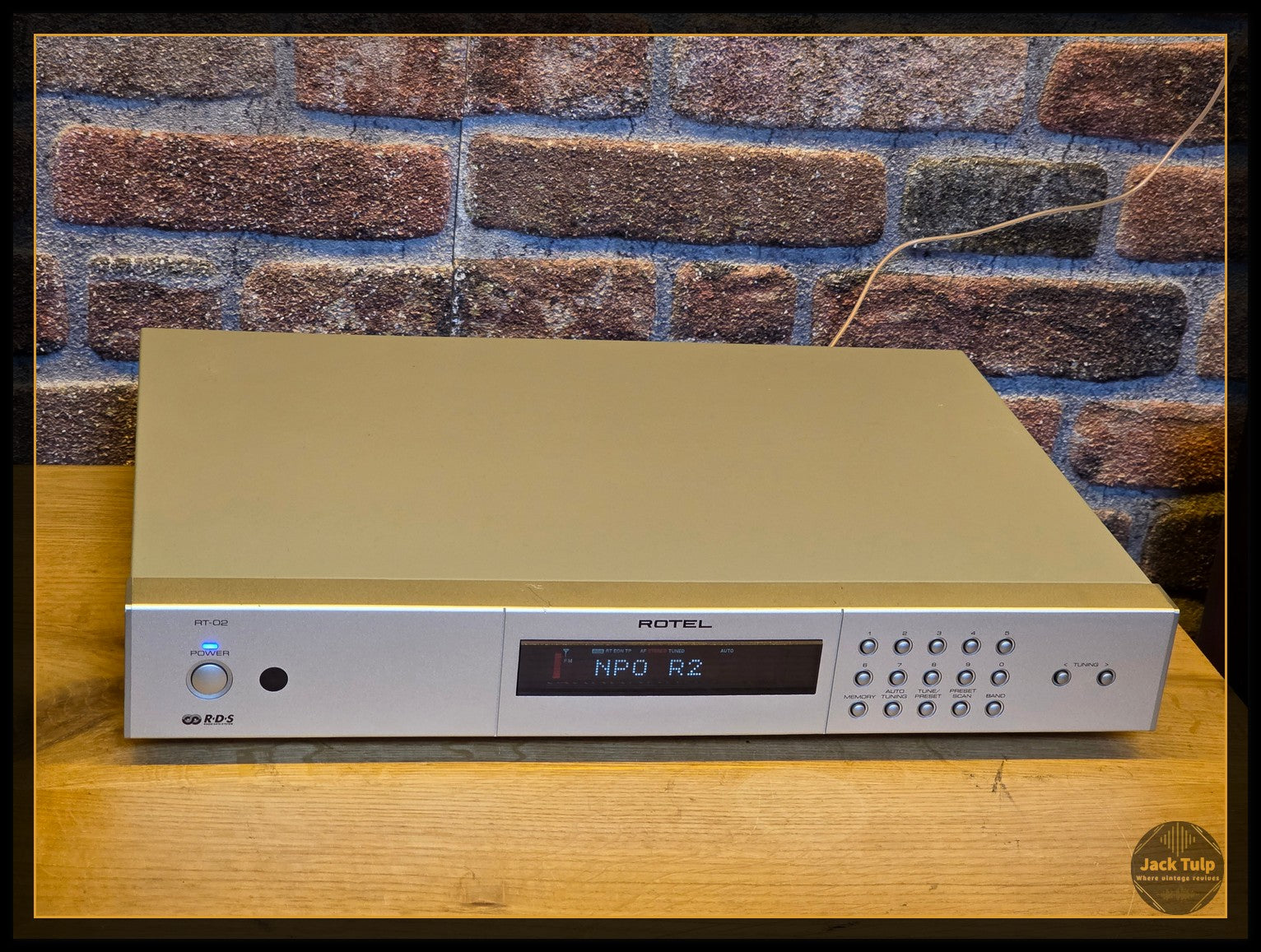

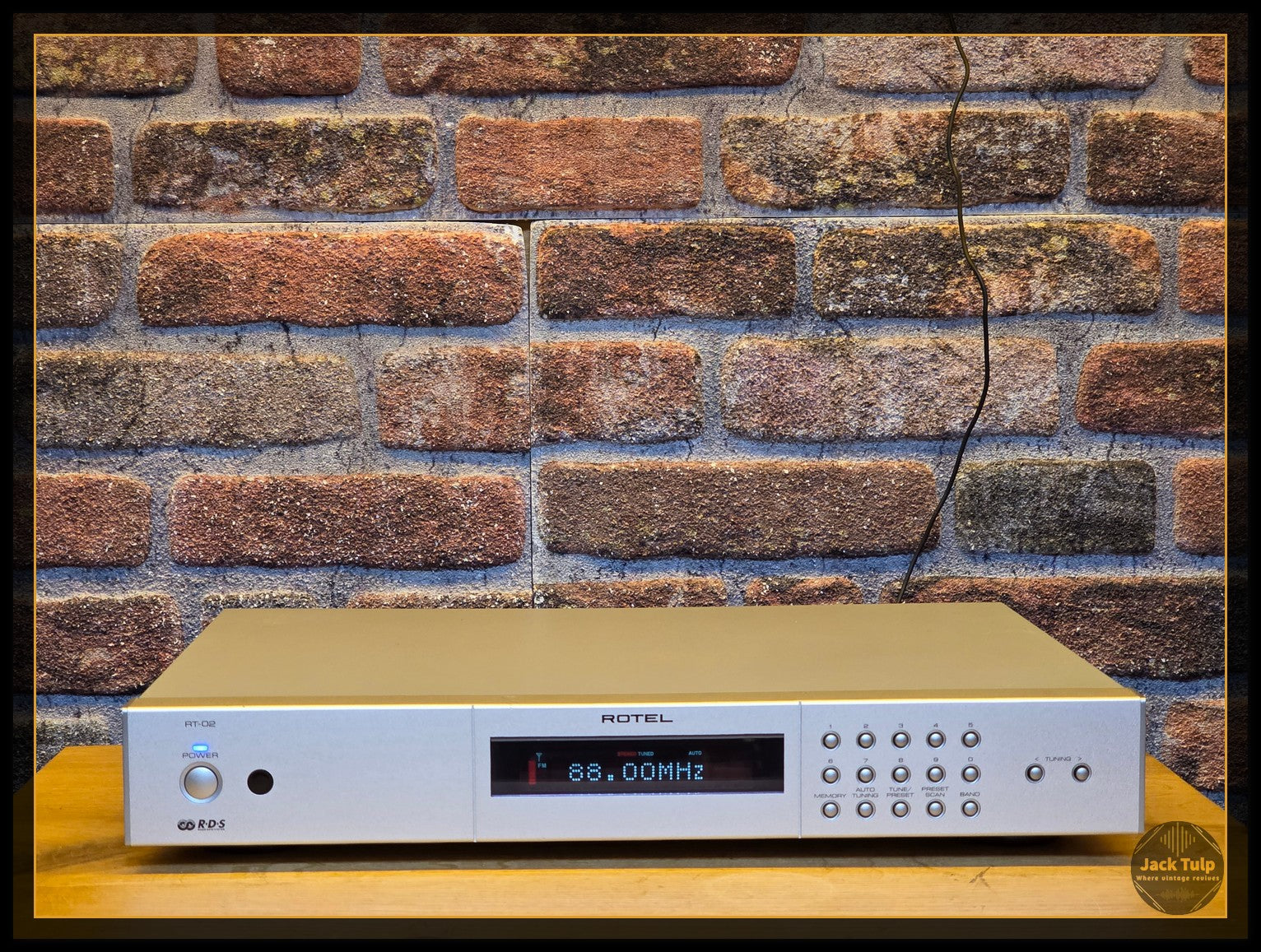

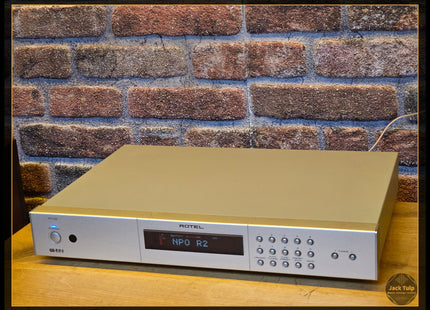

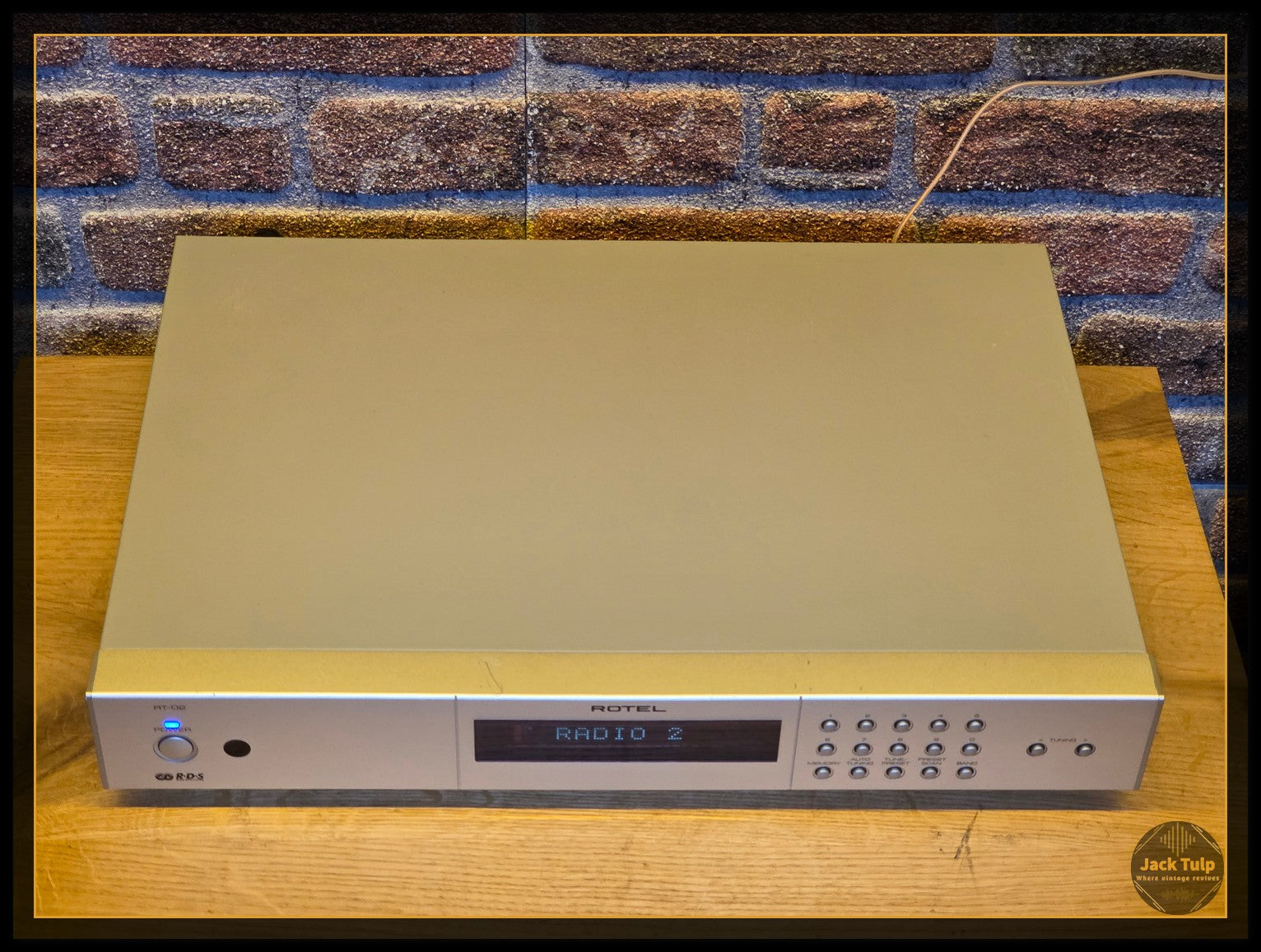

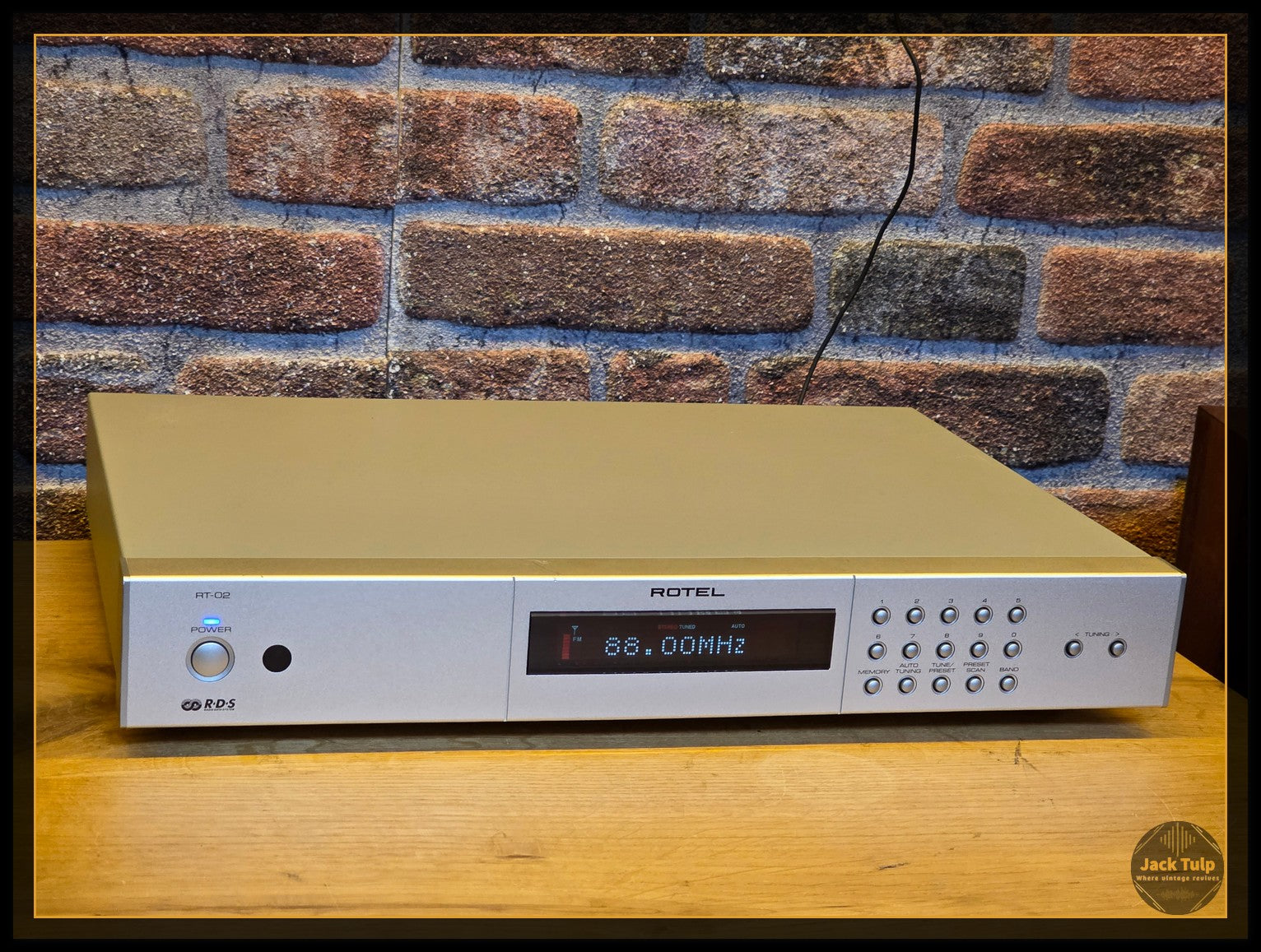

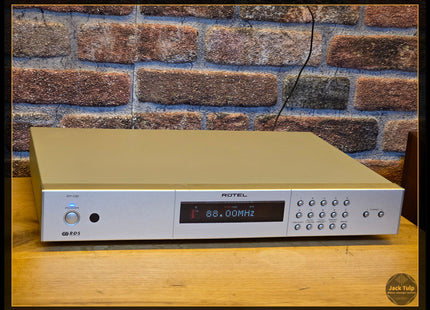

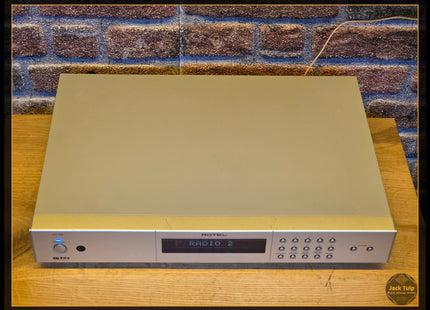

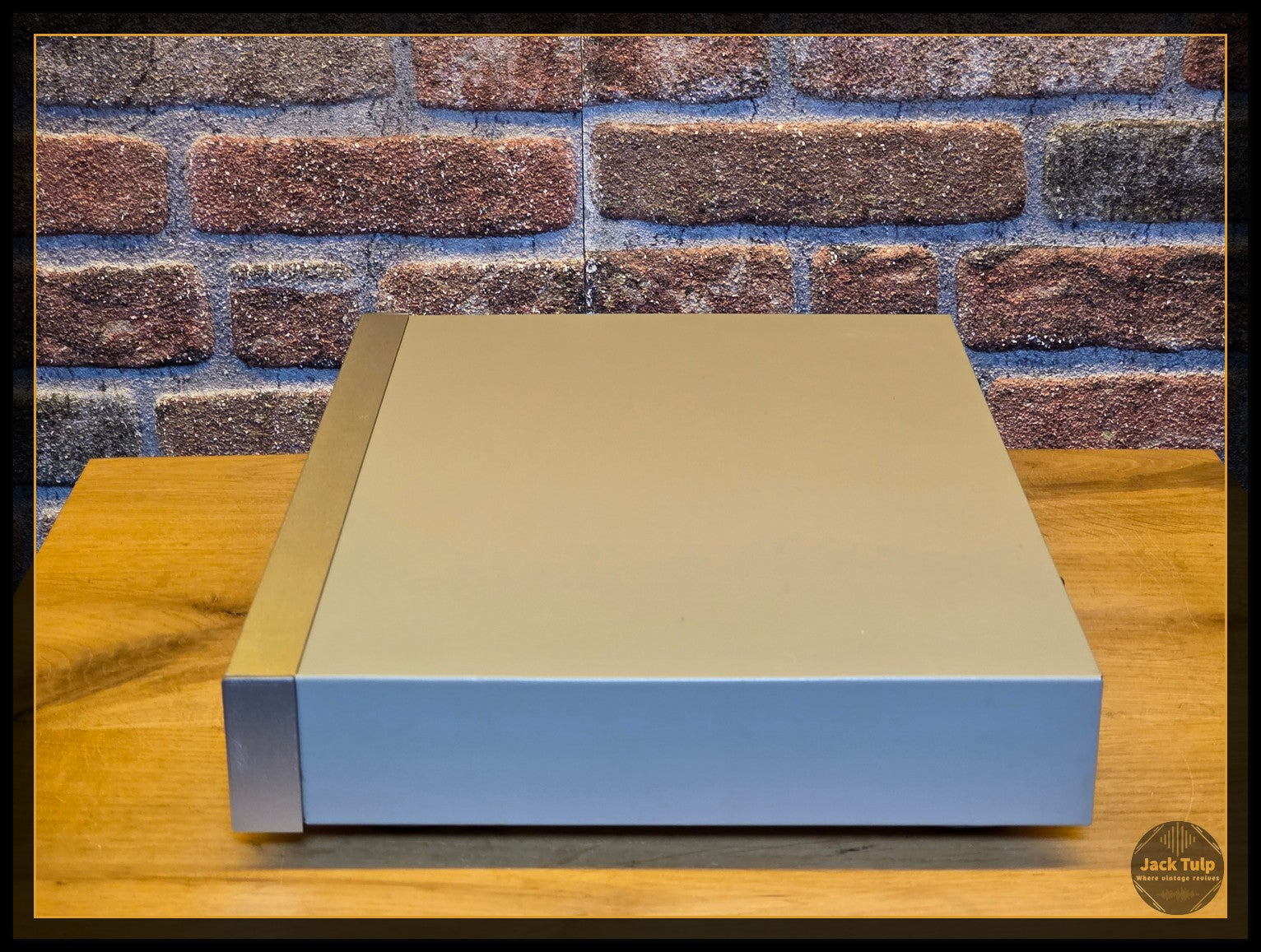

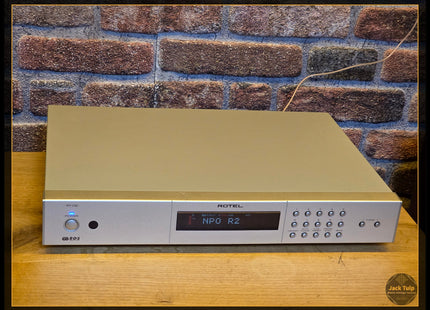

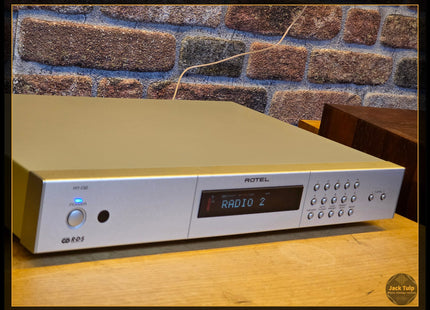

Rotel tuner in the color silver. Cosmetically very good condition.
Technically fully serviced and cleaned.
- Usable Sensitivity: 14.2 dBf 50dB
- Quieting Sensitivity: 20.2 dBf (mono) 45.3 dBf (stereo)
- Signal to Noise Ratio (at 65 dBf): 73 dBf (mono) 70 dBf (stereo)
- Harmonic Distortion (at 65 dBf): 0.2% (mono) 0.3% (stereo)
- Frequency Response: 10 Hz-15 kHz, ±3 dB
- Capture Ratio: 2.0 dB
- Alternate Channel Selectivity: 47 dB (±400 kHz)
- Spurious Response Ratio: 90 dB
- Image Rejection Ratio: 80 dB
- IF Rejection Ratio: 80 dB AM Suppression Ratio: 55 dB
- Stereo Separation (100Hz/1 kHz/10 kHz): 40 dB/45 dB/35 dB

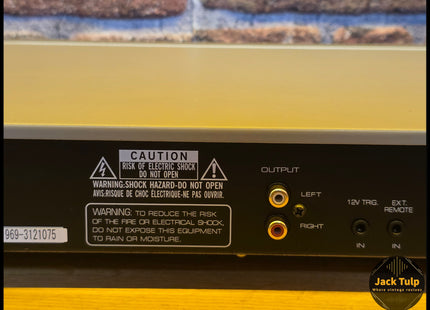

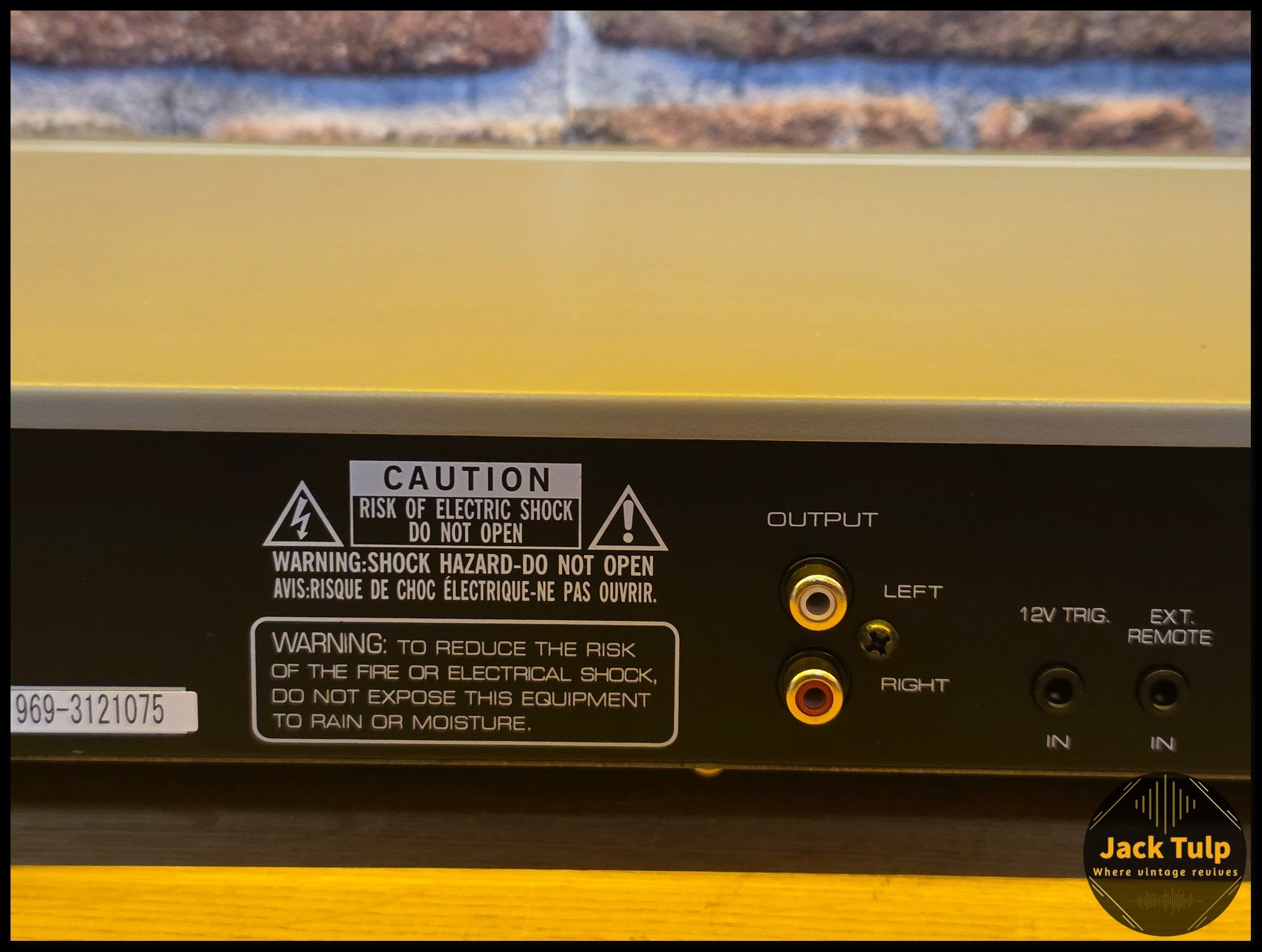

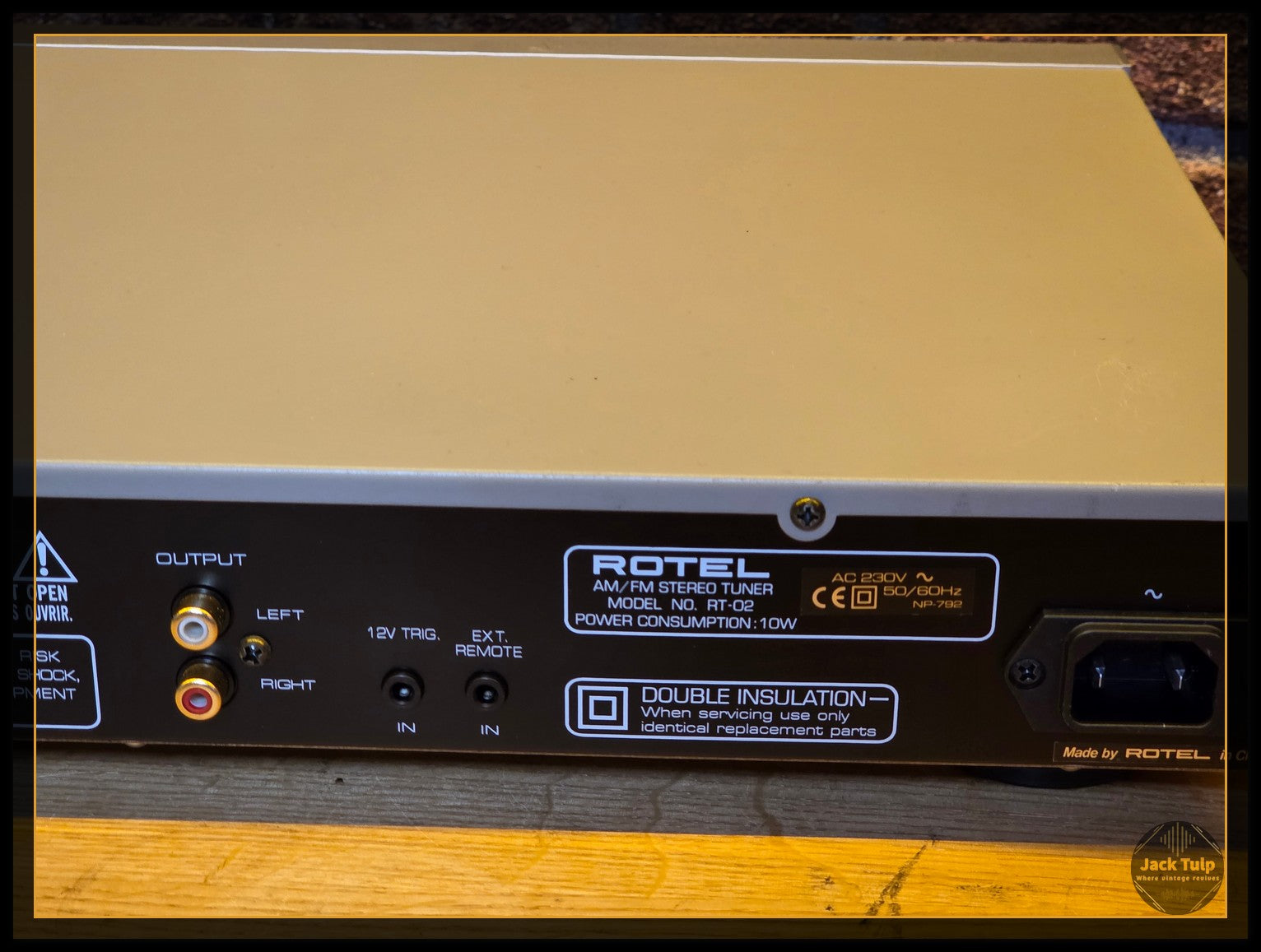

- Output level: 1V

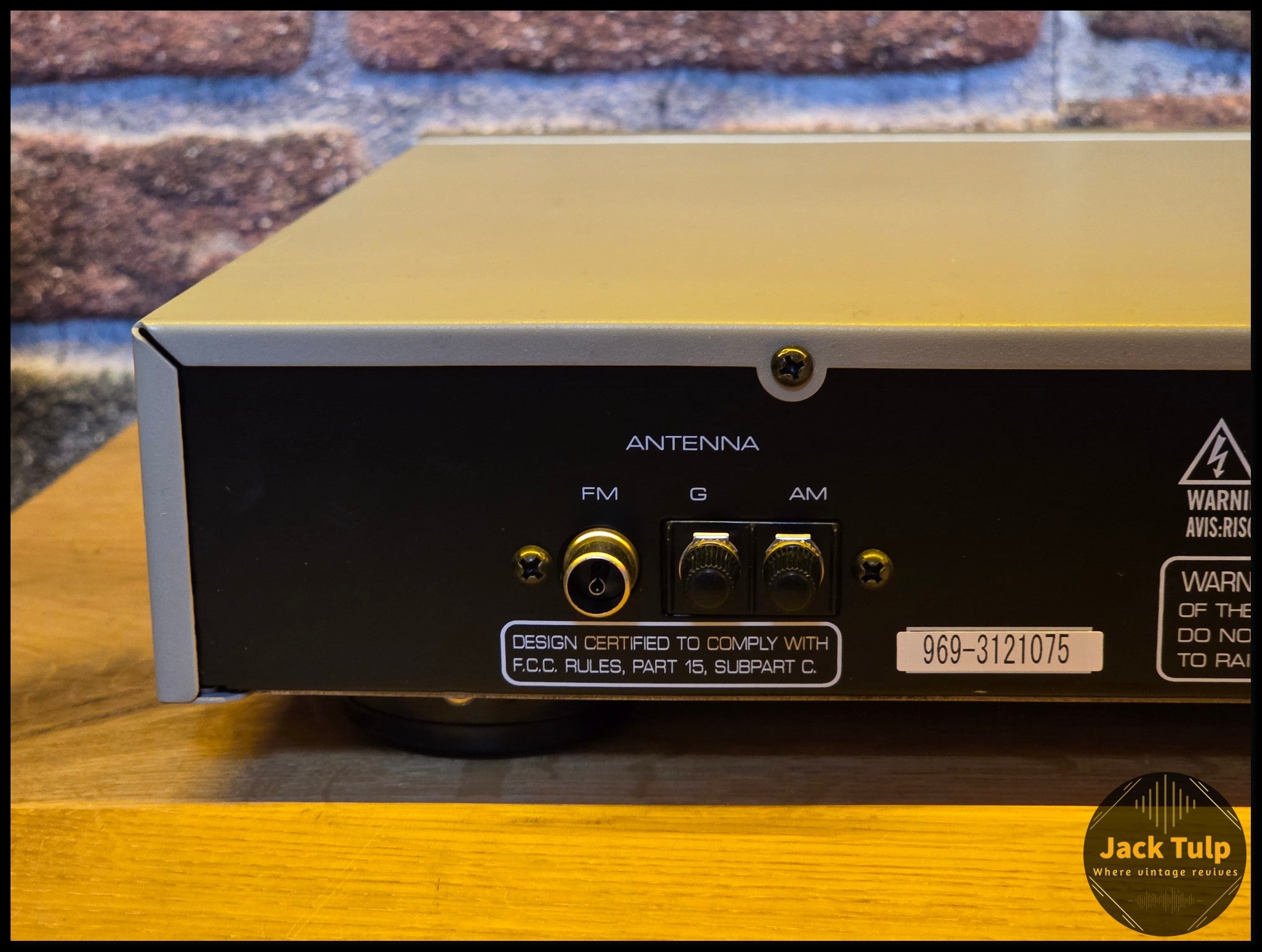

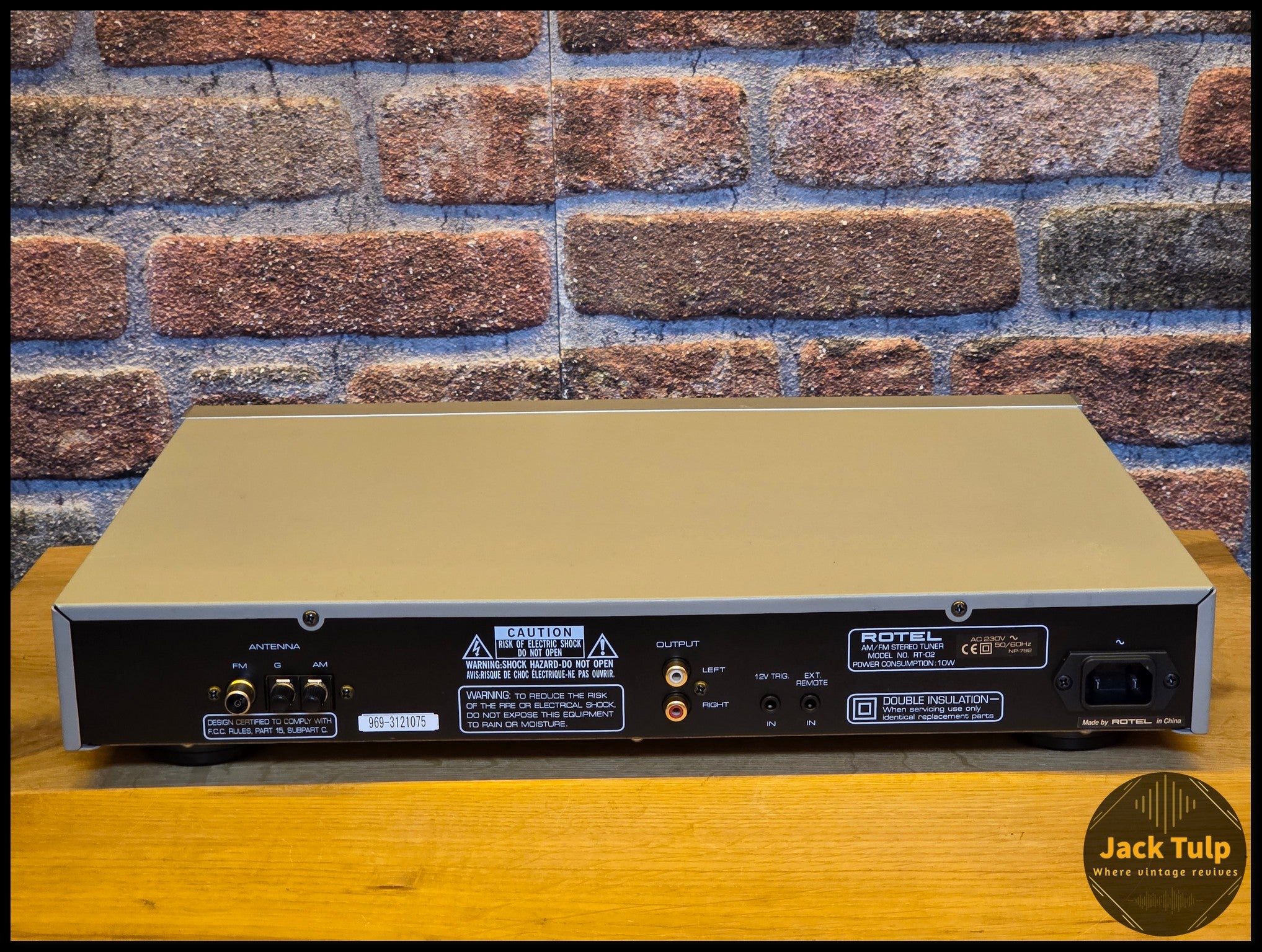

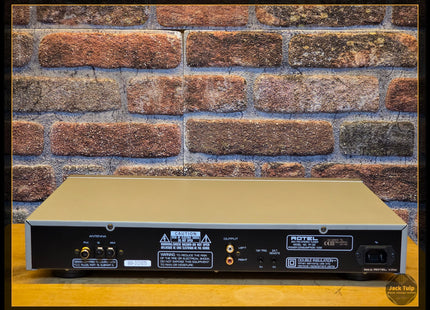

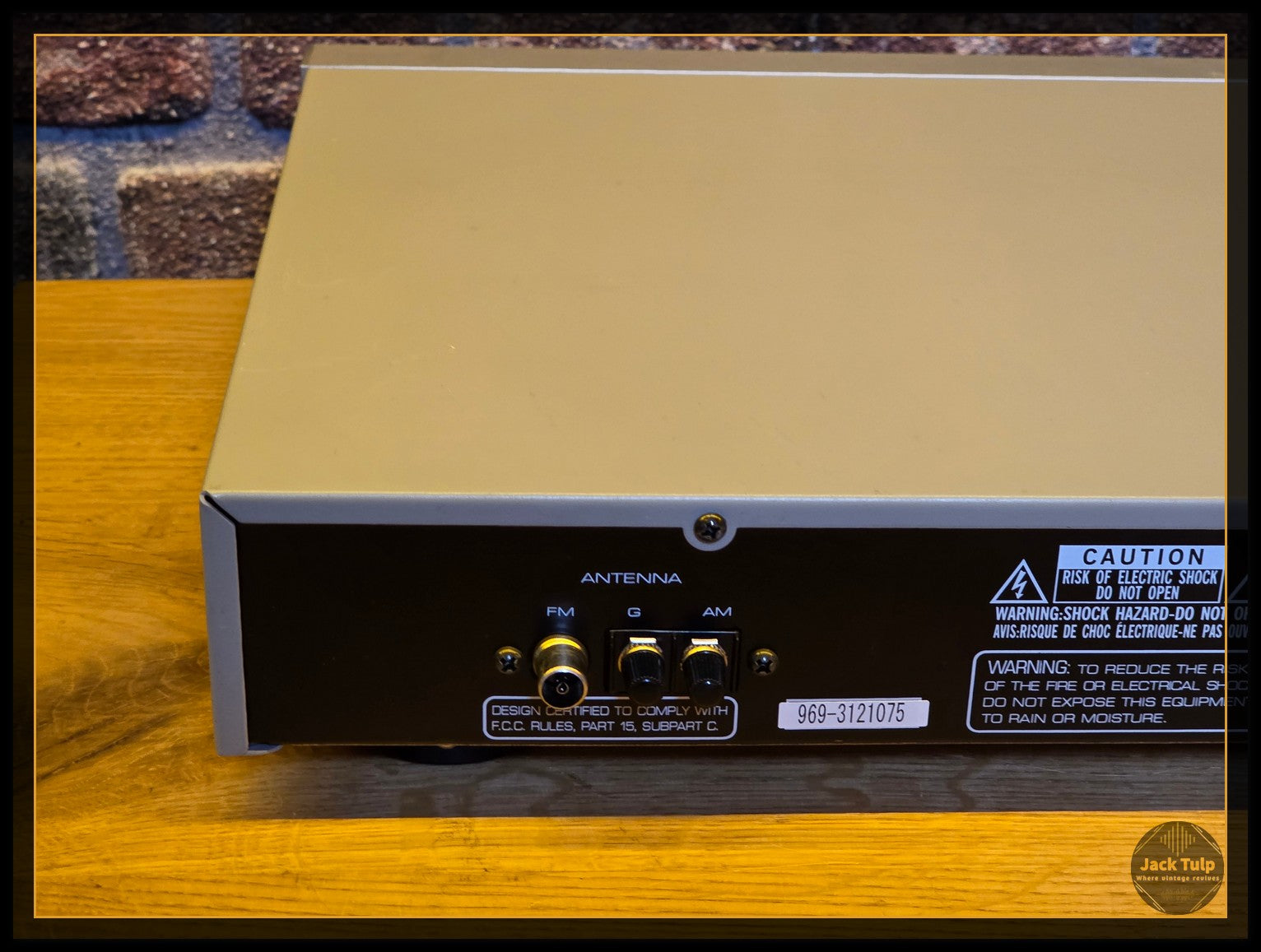

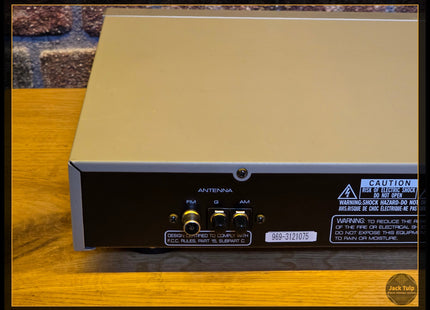

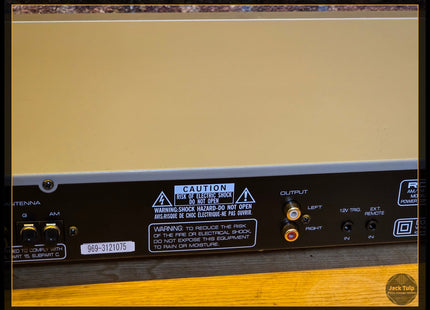

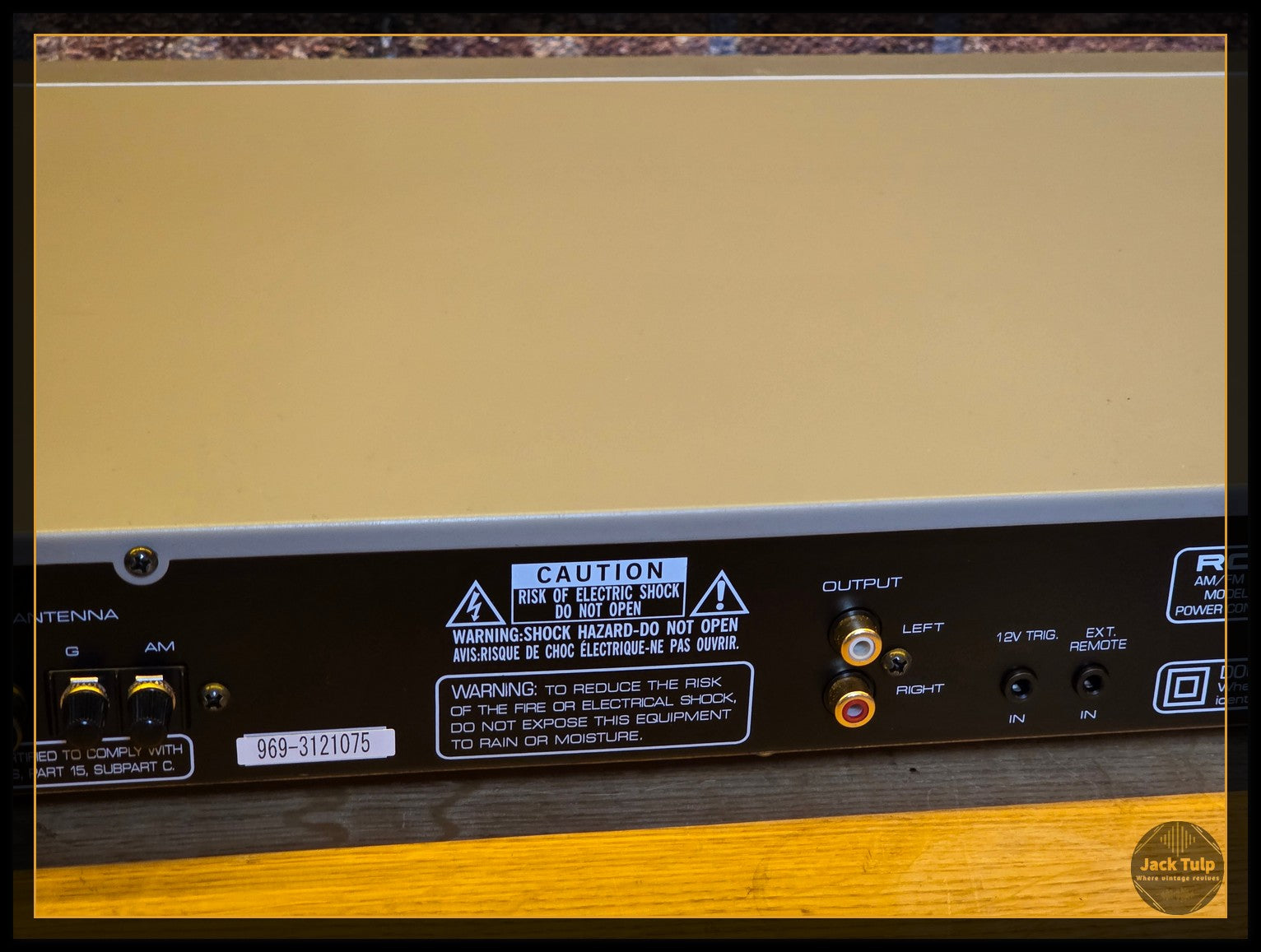

- Antenna Input: 75 ohms unbalanced

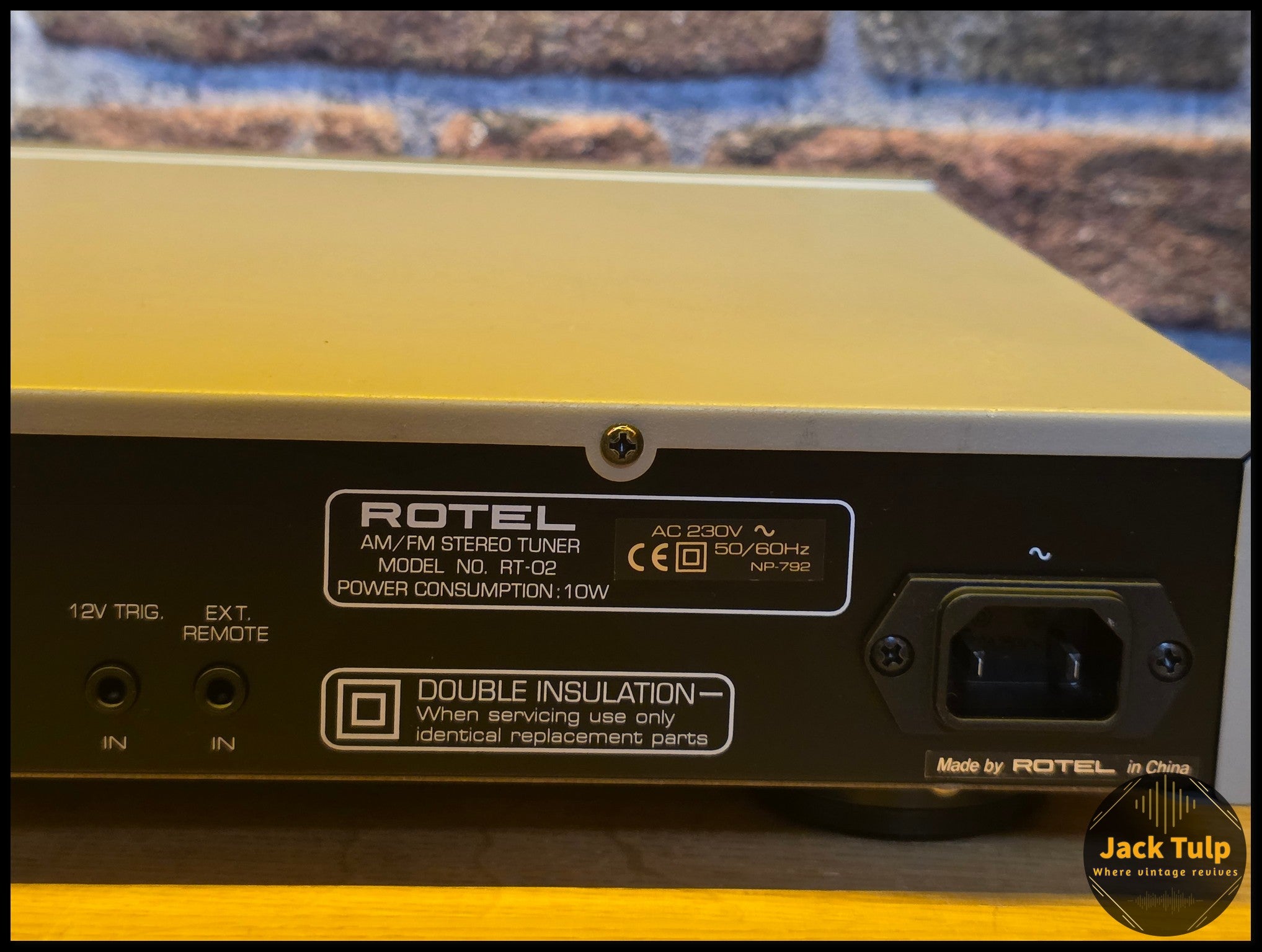

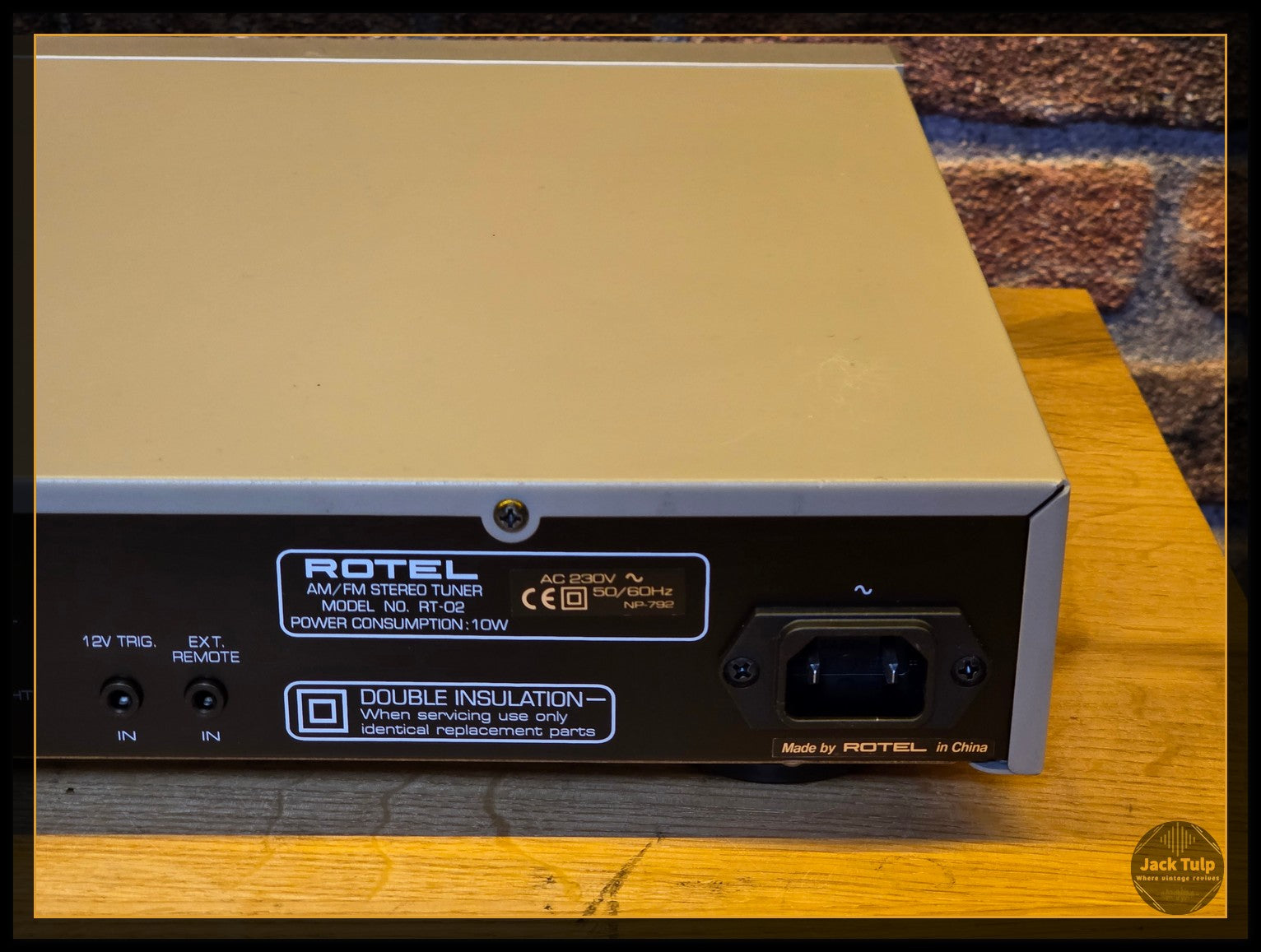

- Power Consumption: 10 watts
- Power Requirements (AC): 115 volts, 60 Hz (USA version), 230 volts, 50 Hz (European version)
- Weight: 3.9 Kg
- Dimensions (W x H x D): 435 x 72 x 319 mm
- Panel Height 60 mm
