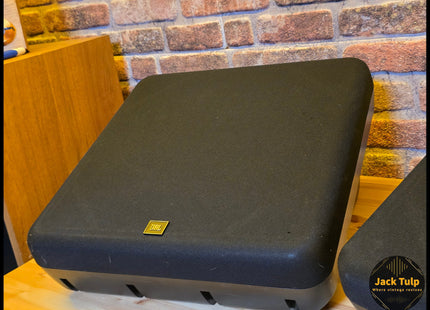

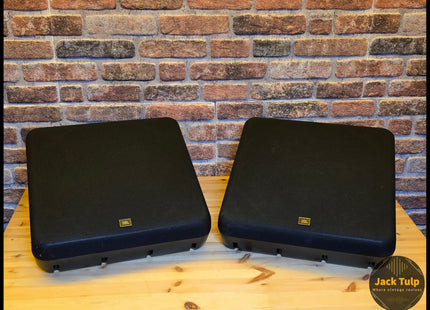

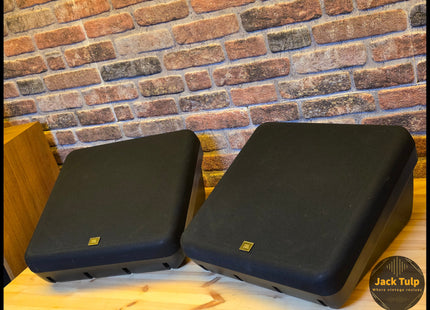

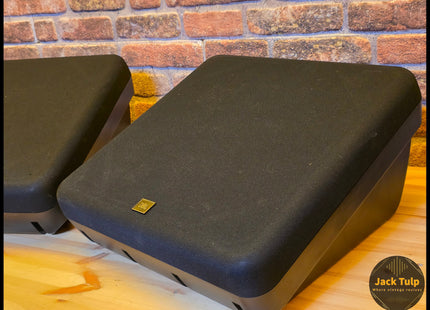

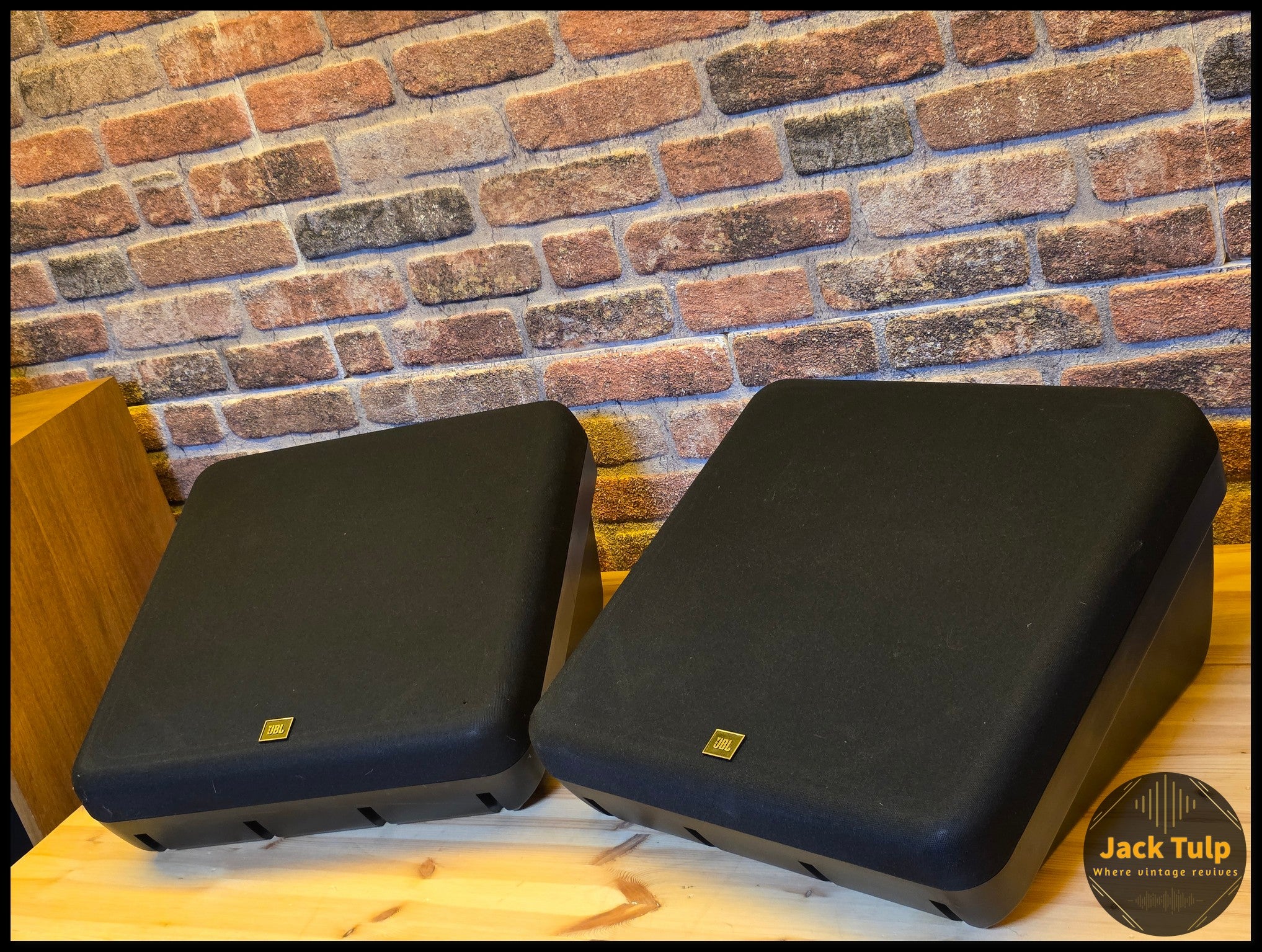

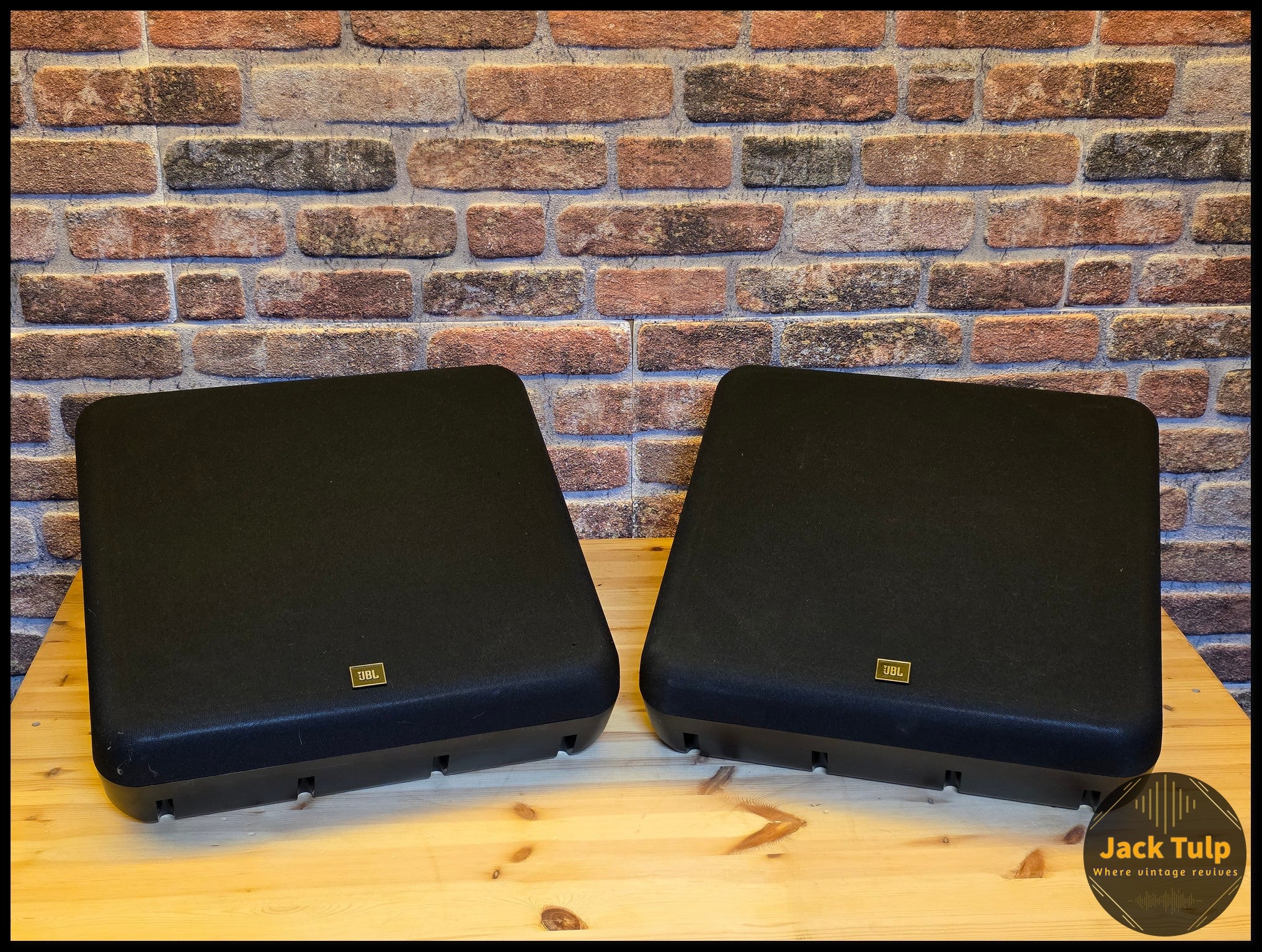

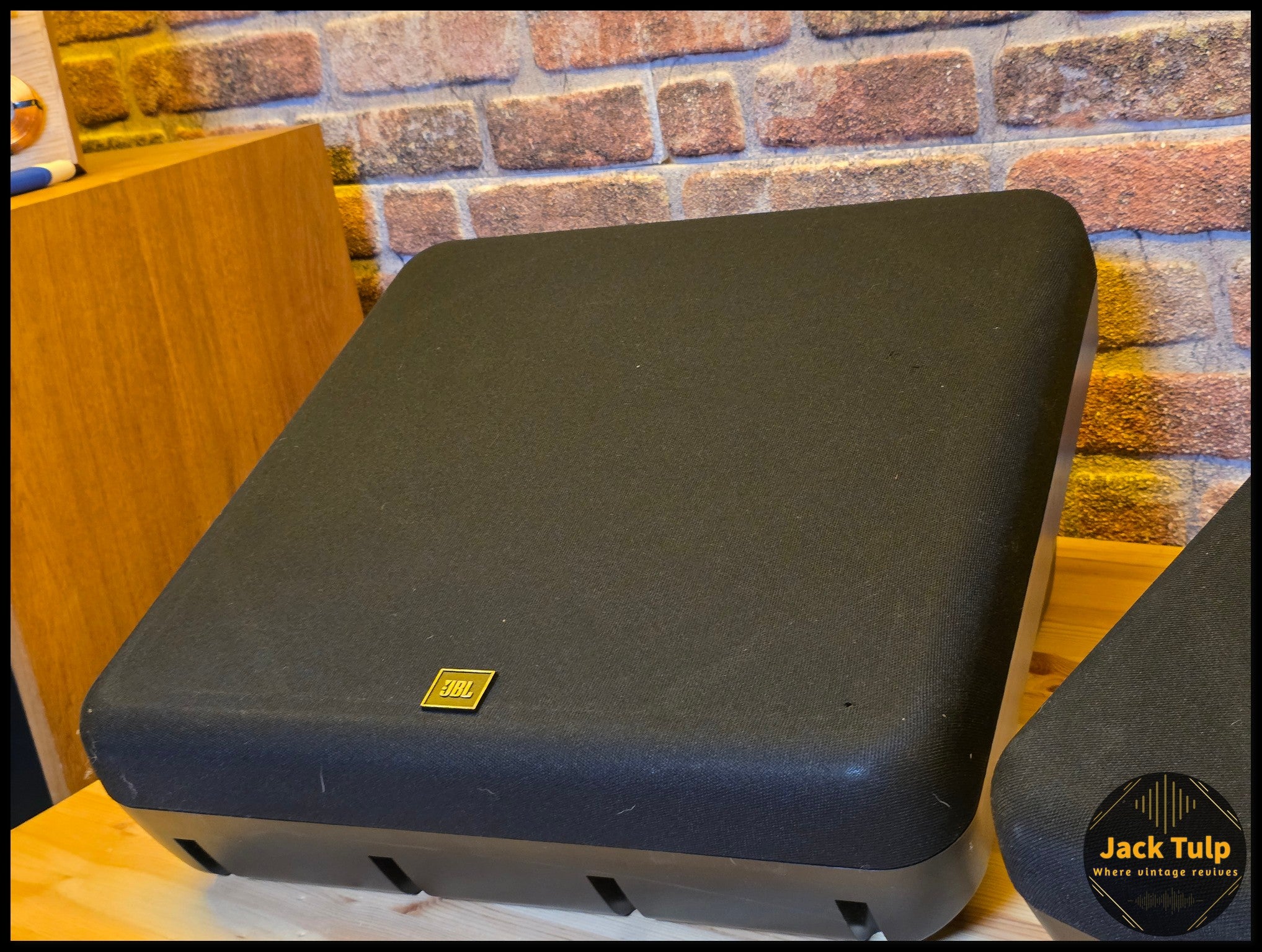

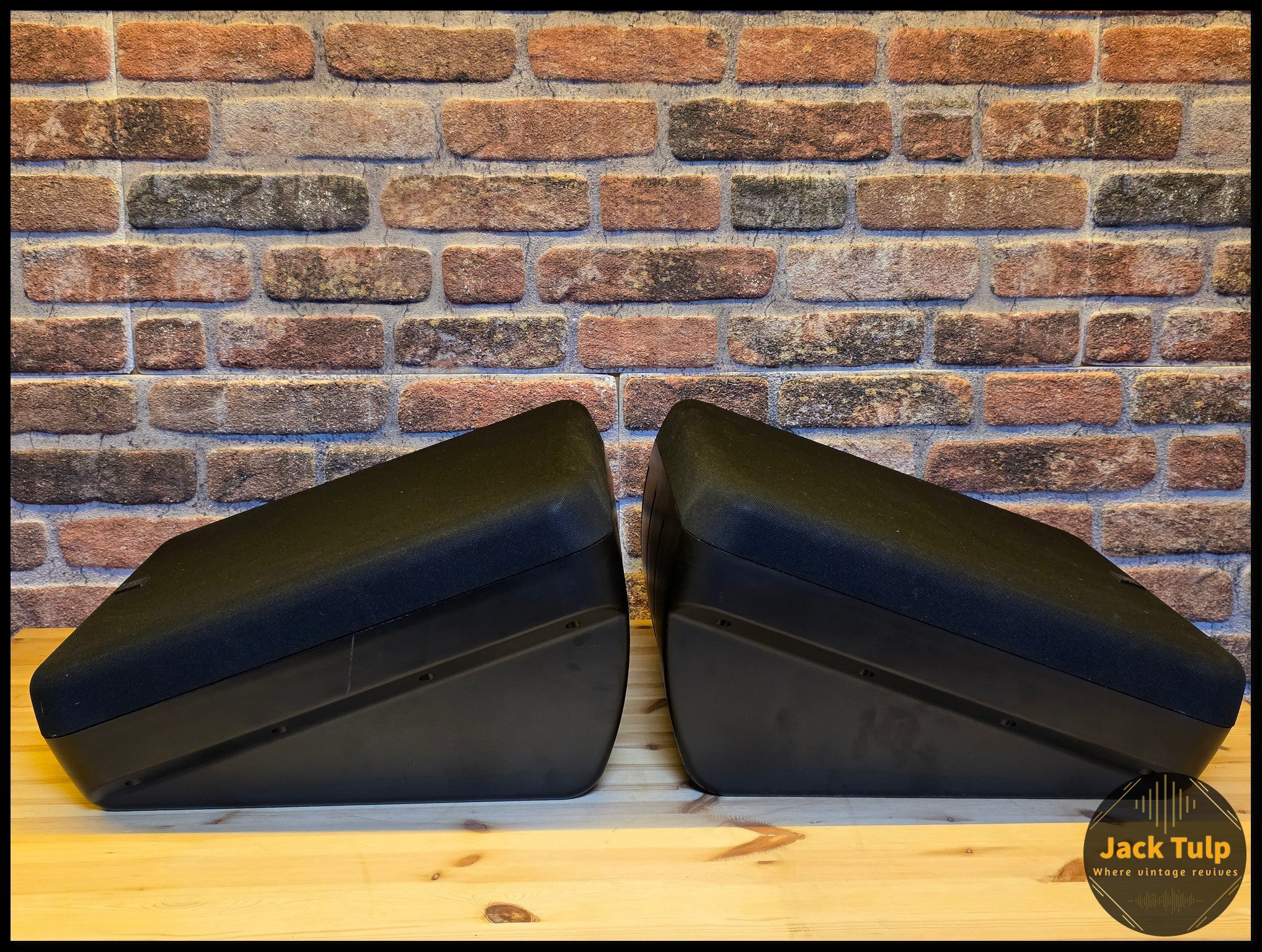

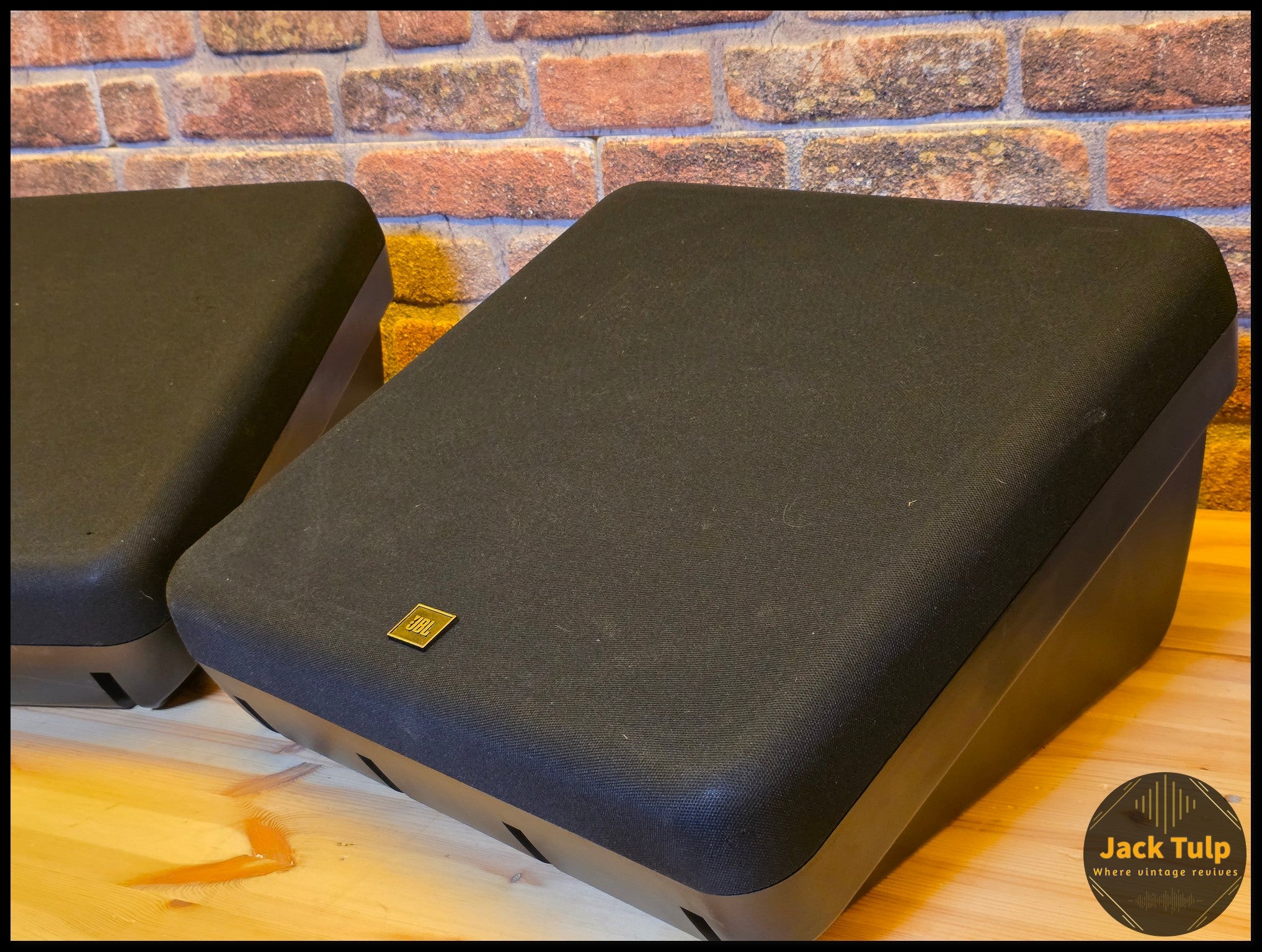

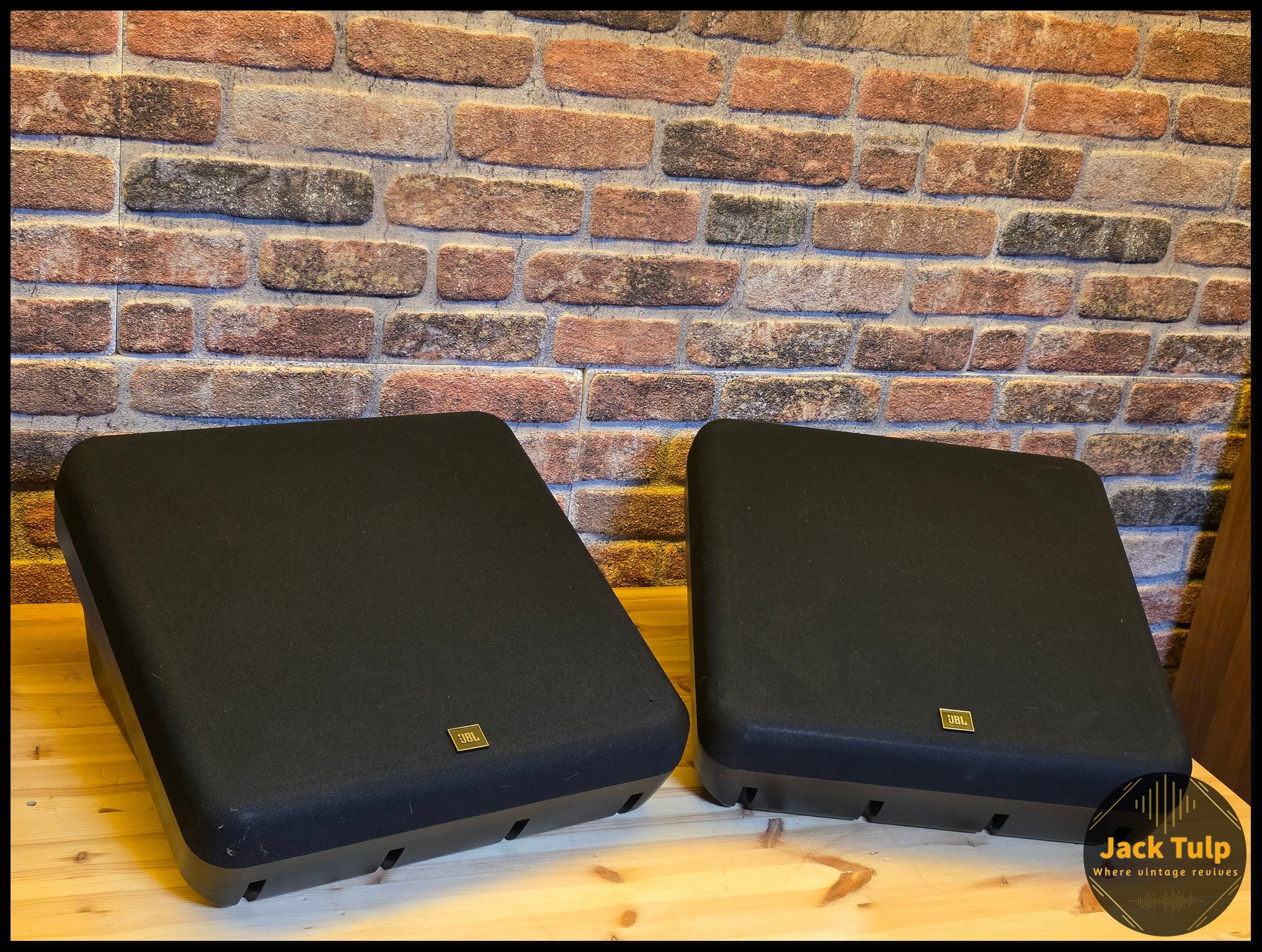

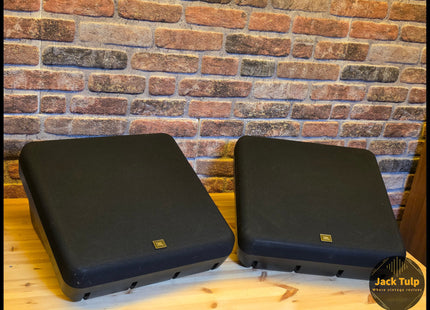

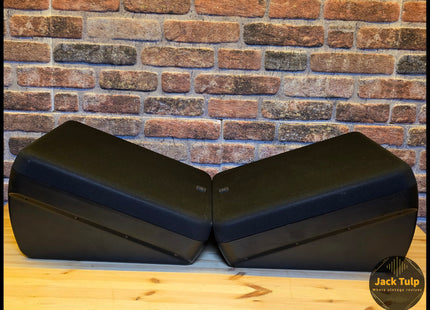

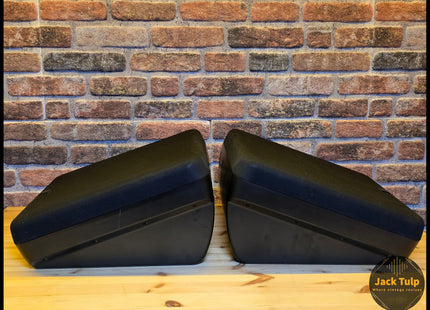

JBL 8330A

Description

  • Frequency Range (-10 dB): 40 Hz - 20 kHz
  • Frequency Response (±3 dB): 70 Hz - 14 kHz
  • Power Rating: 100 watts continuous pink noise, 400 watts peak
  • Sensitivity: 91 dB SPL, 1W @ 1m (3.3 ft)

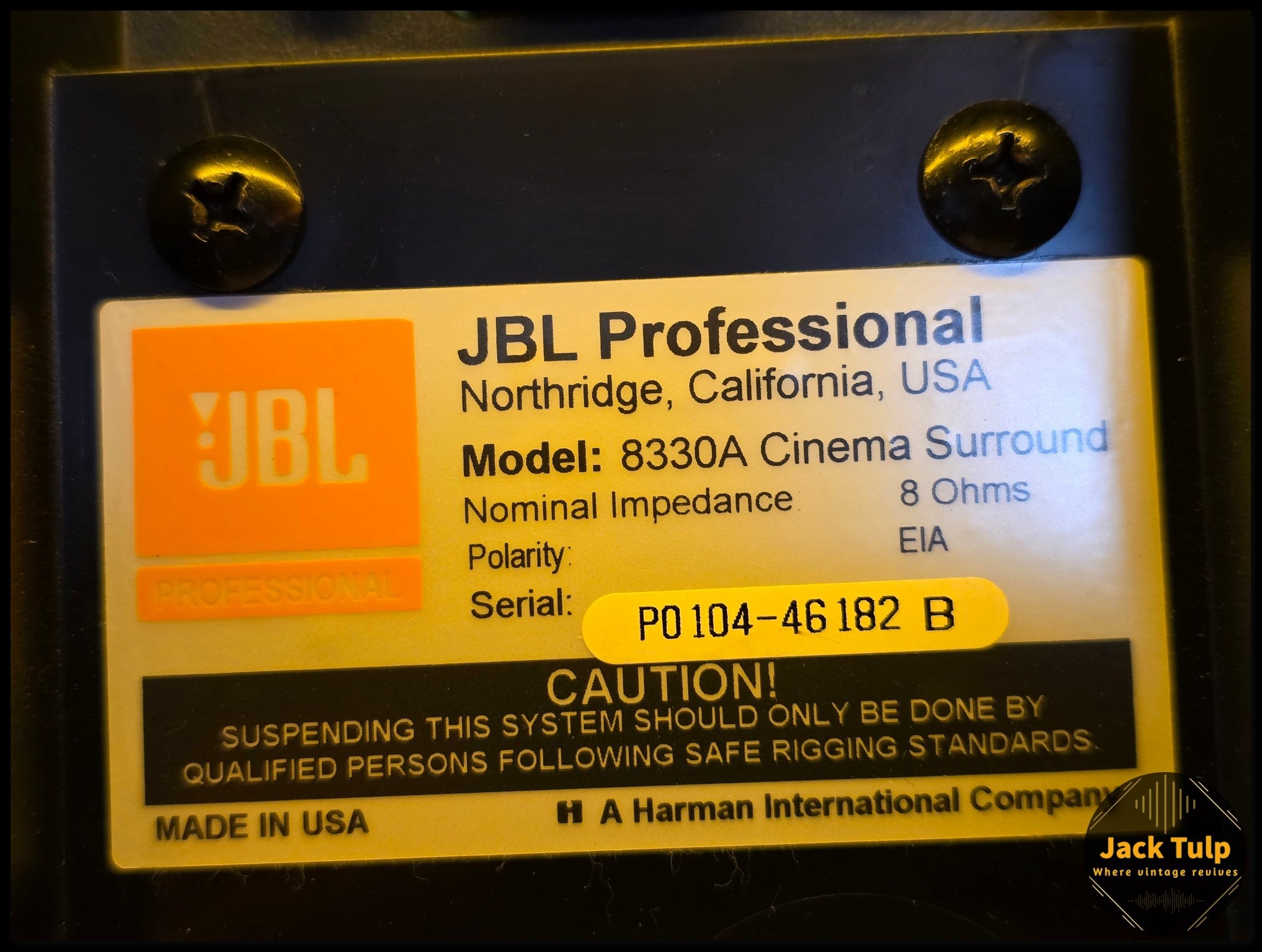

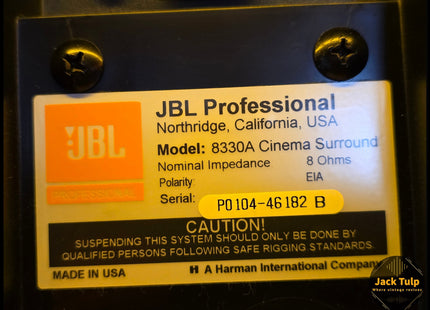

  • Nominal Impedance: 8 ohms
  • Hor. Coverage Angle (-6 dB): 110° averaged 400 Hz to 12 kHz
  • Vert. Coverage Angle (-6 dB): 105° averaged 400 Hz to 12 kHz
  • Directivity Factor (Q): 4.5 averaged 400 Hz to 12 kHz
  • Directivity Index (DI): 6.5 dB averaged 400 Hz to 12 kHz
  • Crossover Frequencies: 650 Hz, 3.1 kHz
  • Downward Firing Angle: Nominal 20° when mounted flush on back panel
  • Enclosure Material: Textured Black H.I.P.S. Plastic
  • Grille Color: Black

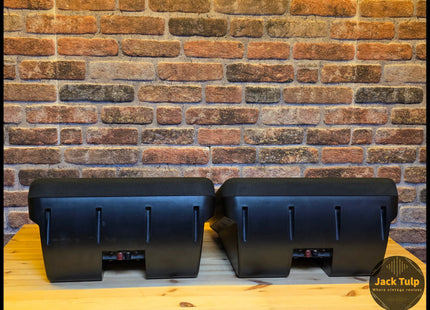

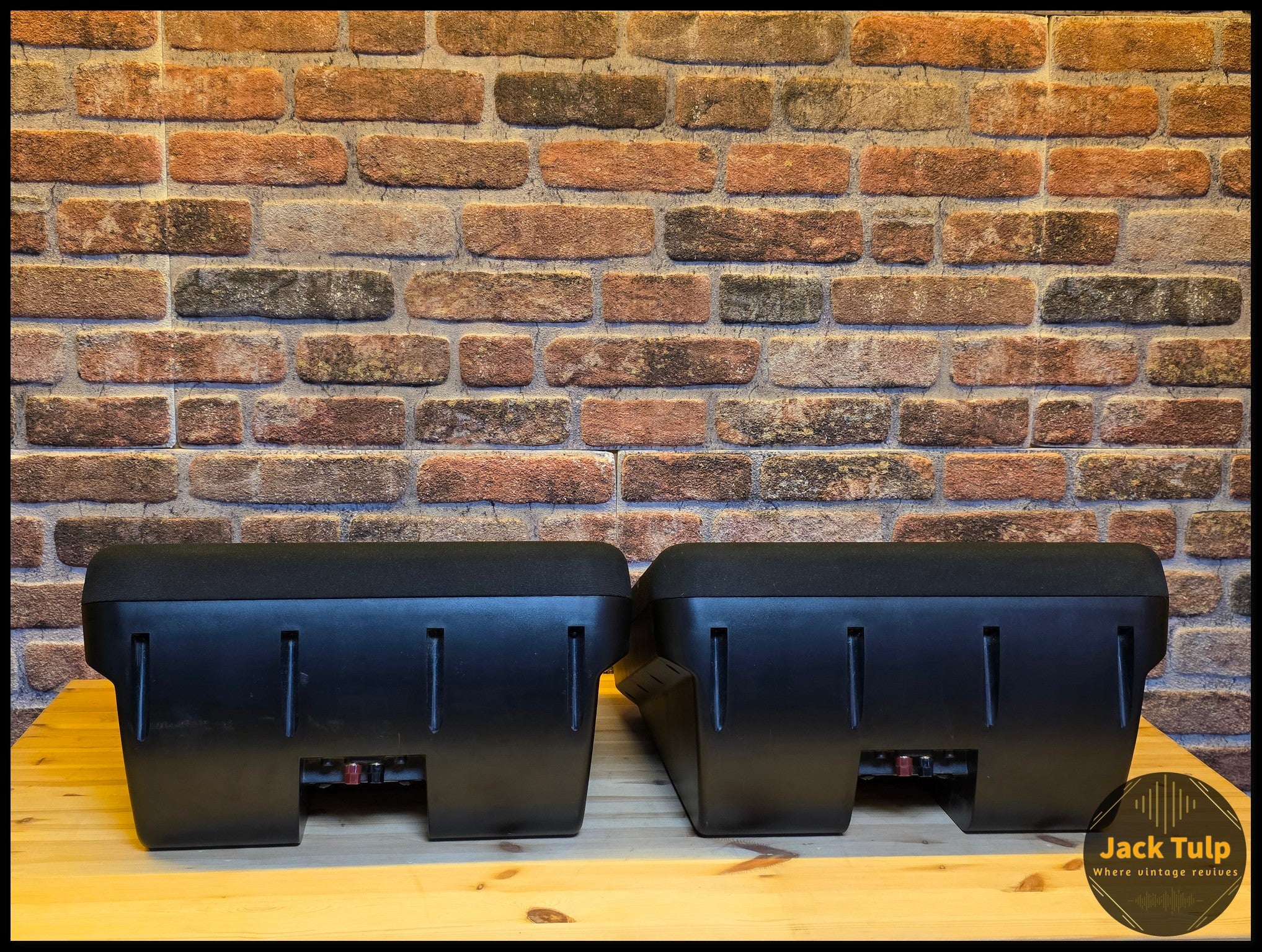

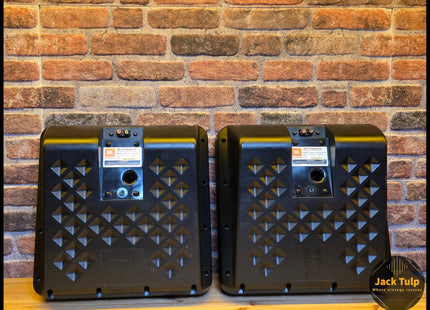

  • Input Connectors: 5-way binding posts
  • Dimensions (H x W x D): 457 mm x 457 mm x 260 mm
  • Net Weight: 8.6 kg (19 lb)

JBL 8330A

Product form
    • Color: Black
    • Technical condition: 10/10
    • Cosmetical condition: 9/10

€379,00 Incl. VAT

    Description

    • Frequency Range (-10 dB): 40 Hz - 20 kHz
    • Frequency Response (±3 dB): 70 Hz - 14 kHz
    • Power Rating: 100 watts continuous pink noise, 400 watts peak
    • Sensitivity: 91 dB SPL, 1W @ 1m (3.3 ft)
    • Nominal Impedance: 8 ohms
    • Hor. Coverage Angle (-6 dB): 110° averaged 400 Hz to 12 kHz
    • Vert. Coverage Angle (-6 dB): 105° averaged 400 Hz to 12 kHz
    • Directivity Factor (Q): 4.5 averaged 400 Hz to 12 kHz
    • Directivity Index (DI): 6.5 dB averaged 400 Hz to 12 kHz
    • Crossover Frequencies: 650 Hz, 3.1 kHz
    • Downward Firing Angle: Nominal 20° when mounted flush on back panel
    • Enclosure Material: Textured Black H.I.P.S. Plastic
    • Grille Color: Black
    • Input Connectors: 5-way binding posts
    • Dimensions (H x W x D): 457 mm x 457 mm x 260 mm
    • Net Weight: 8.6 kg (19 lb)
