Description

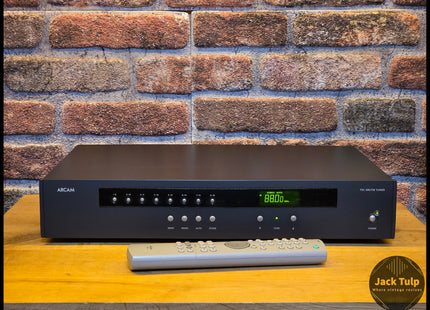

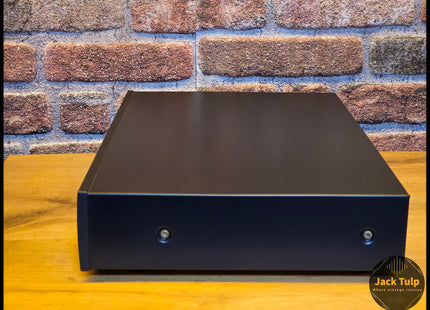

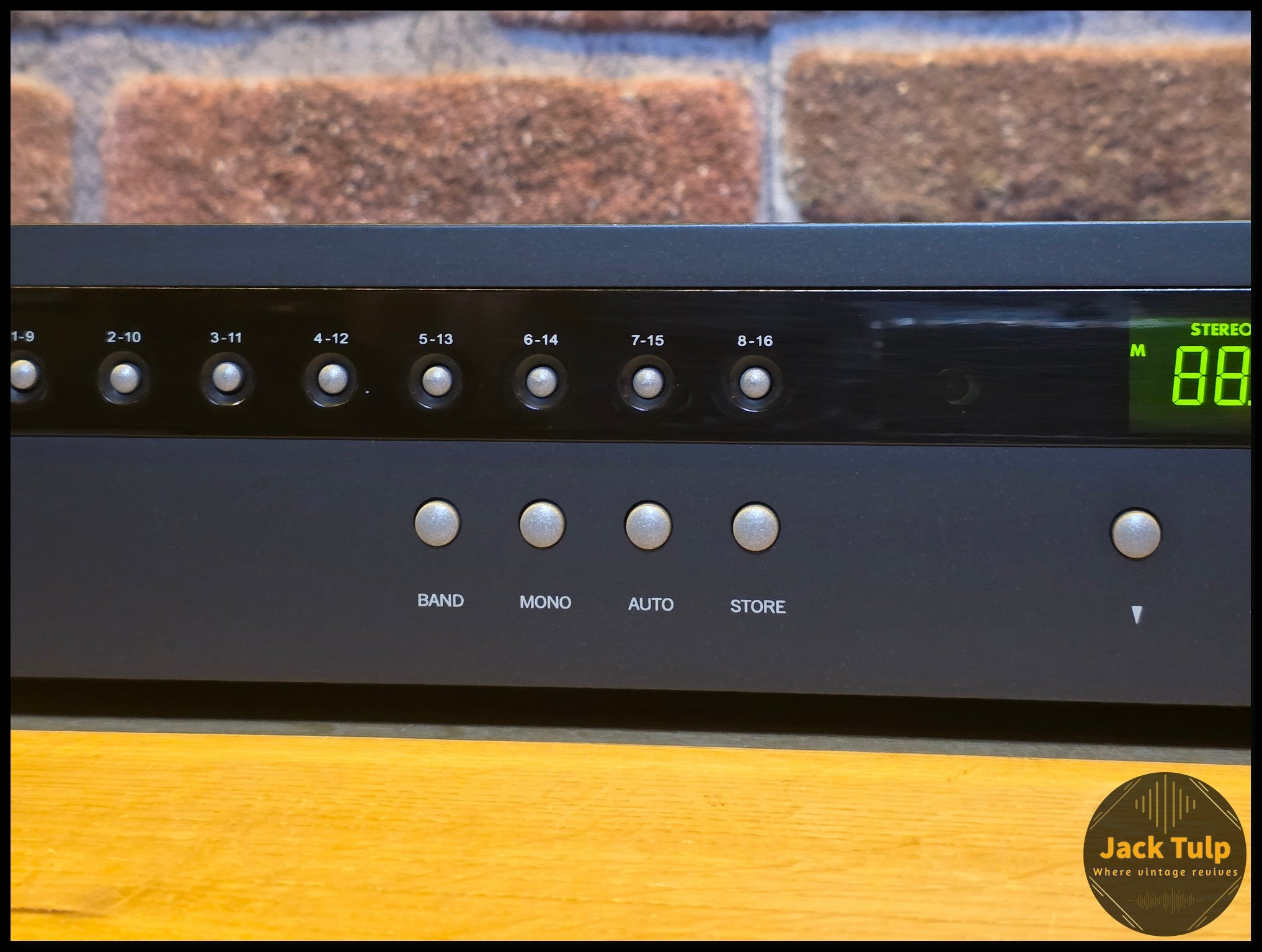

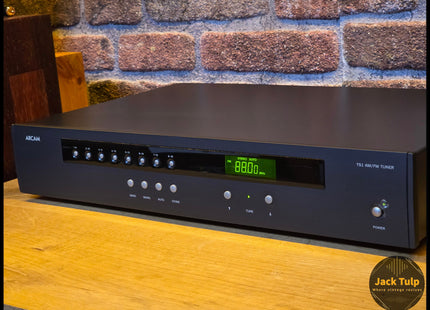

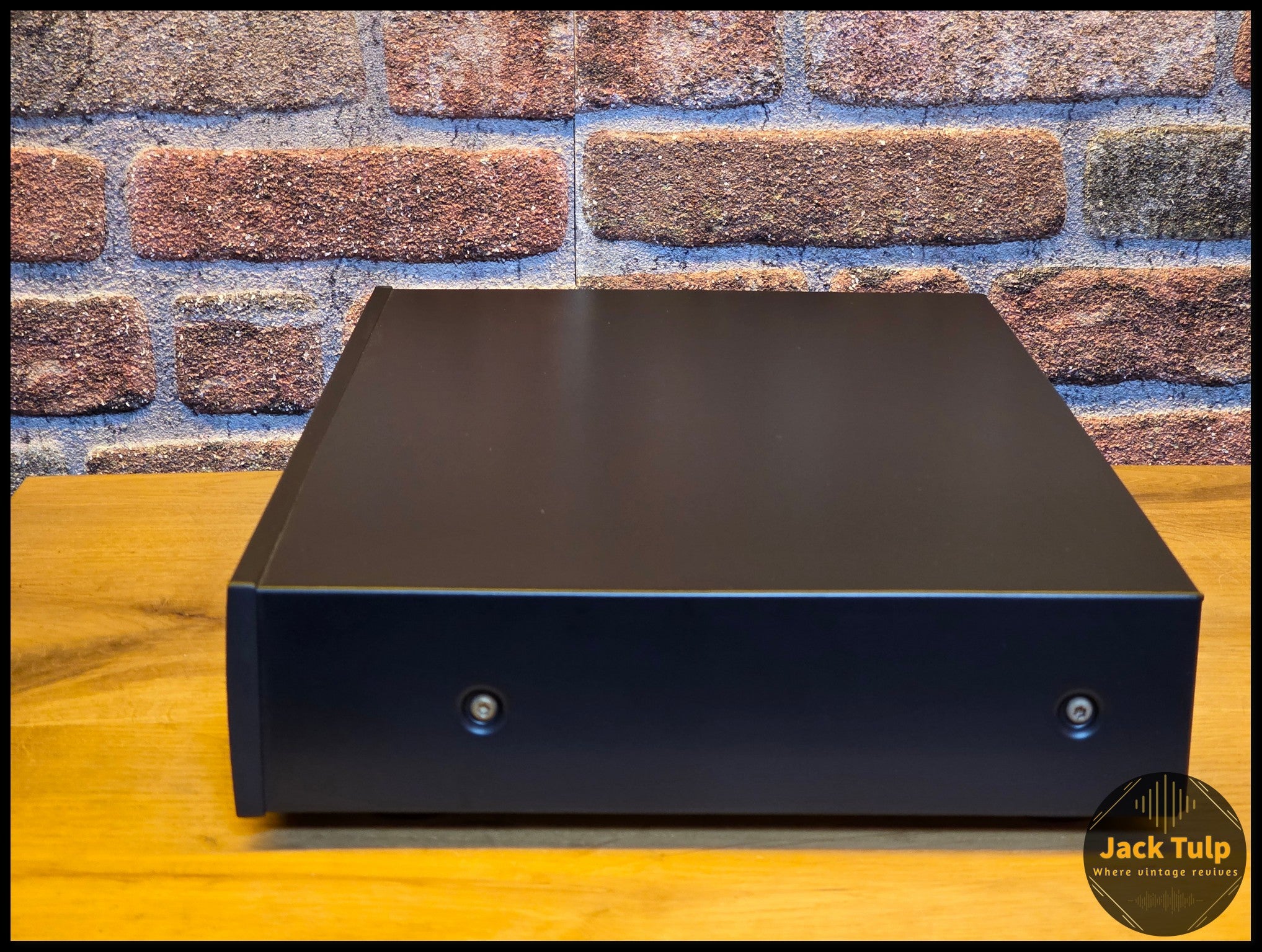

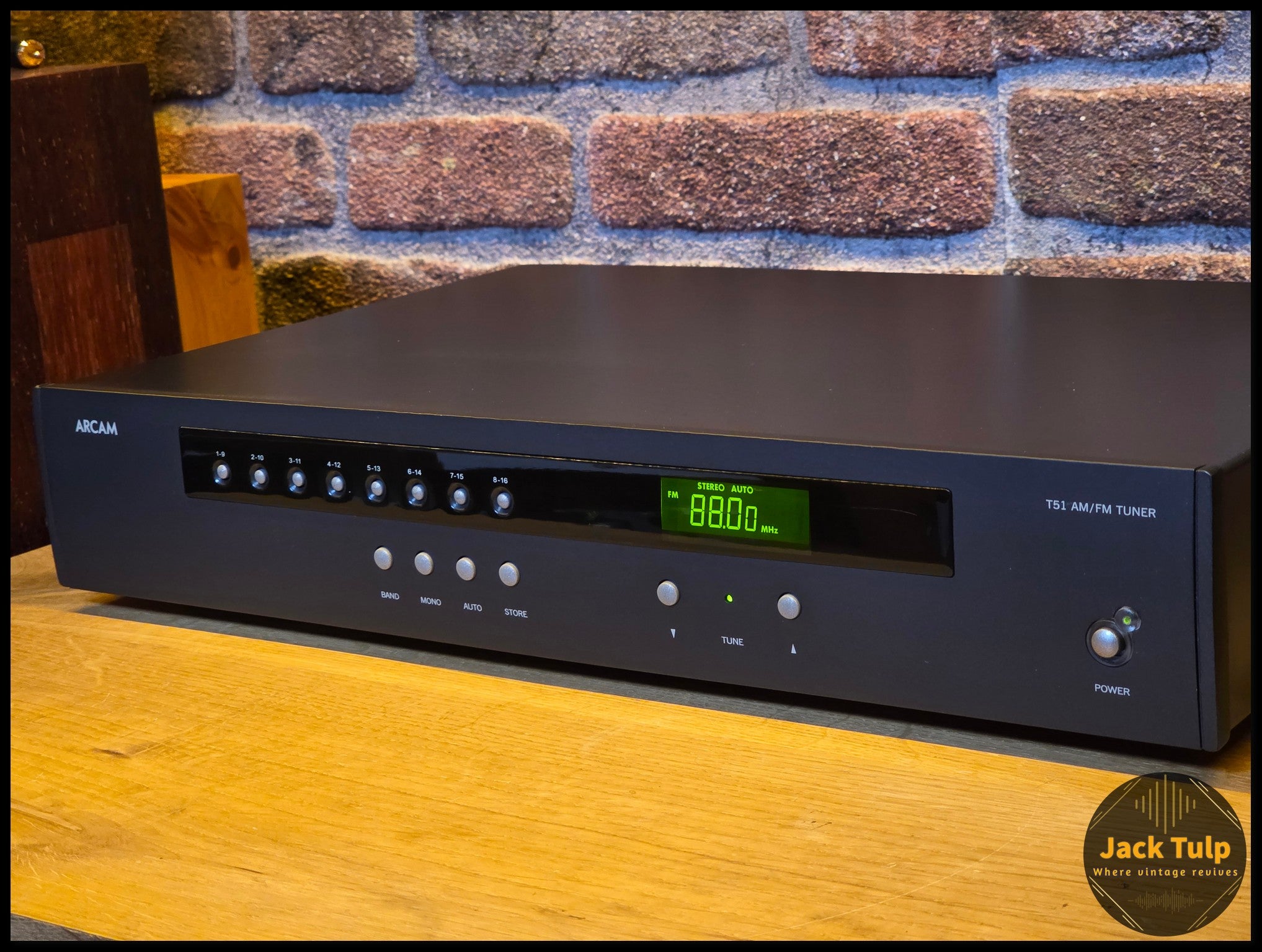

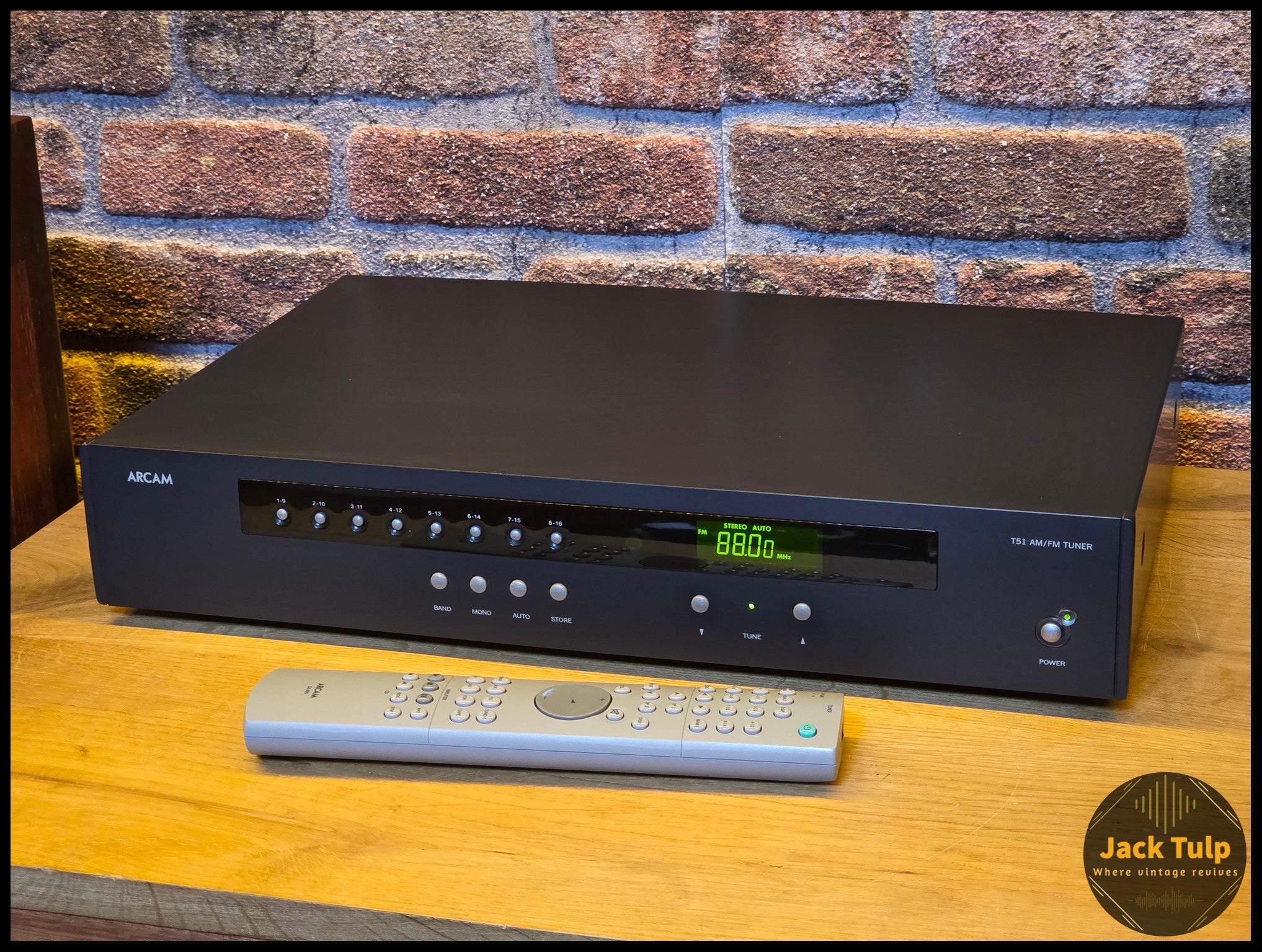

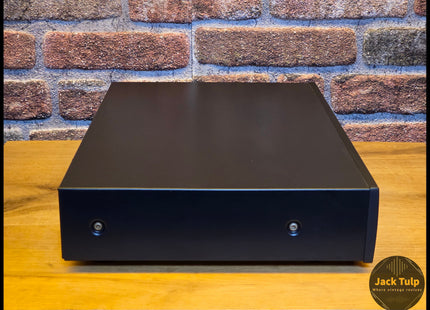

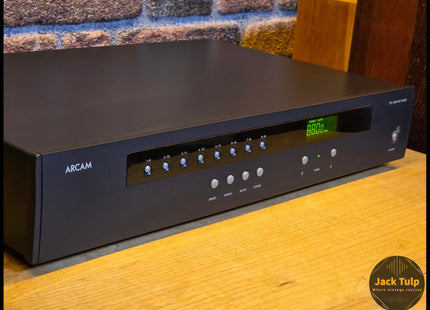

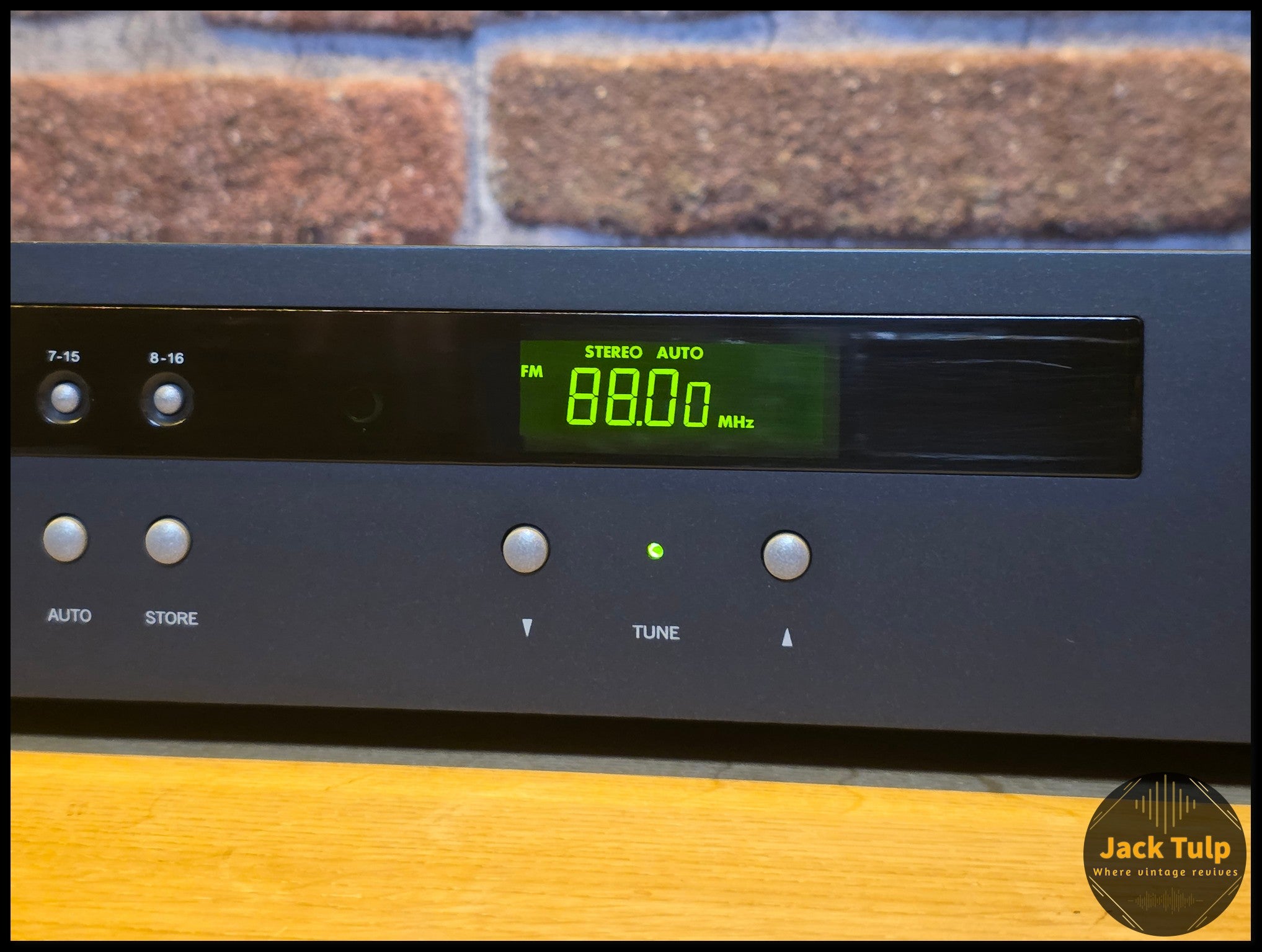

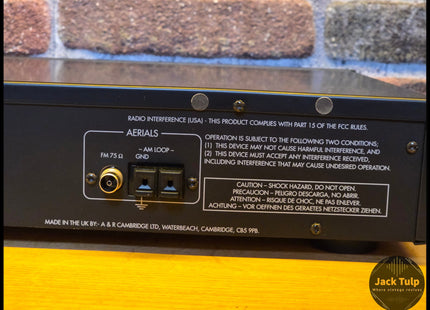

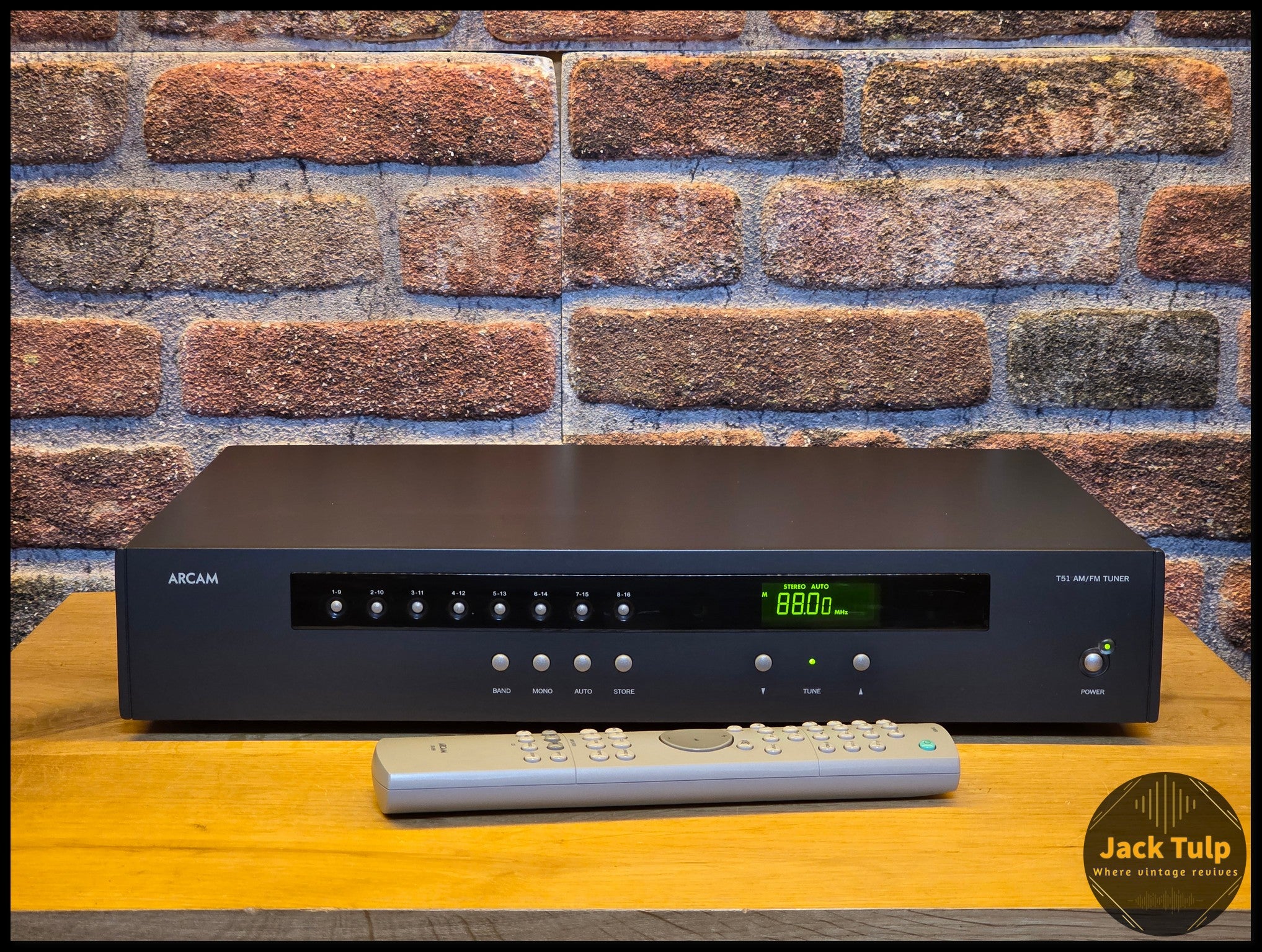

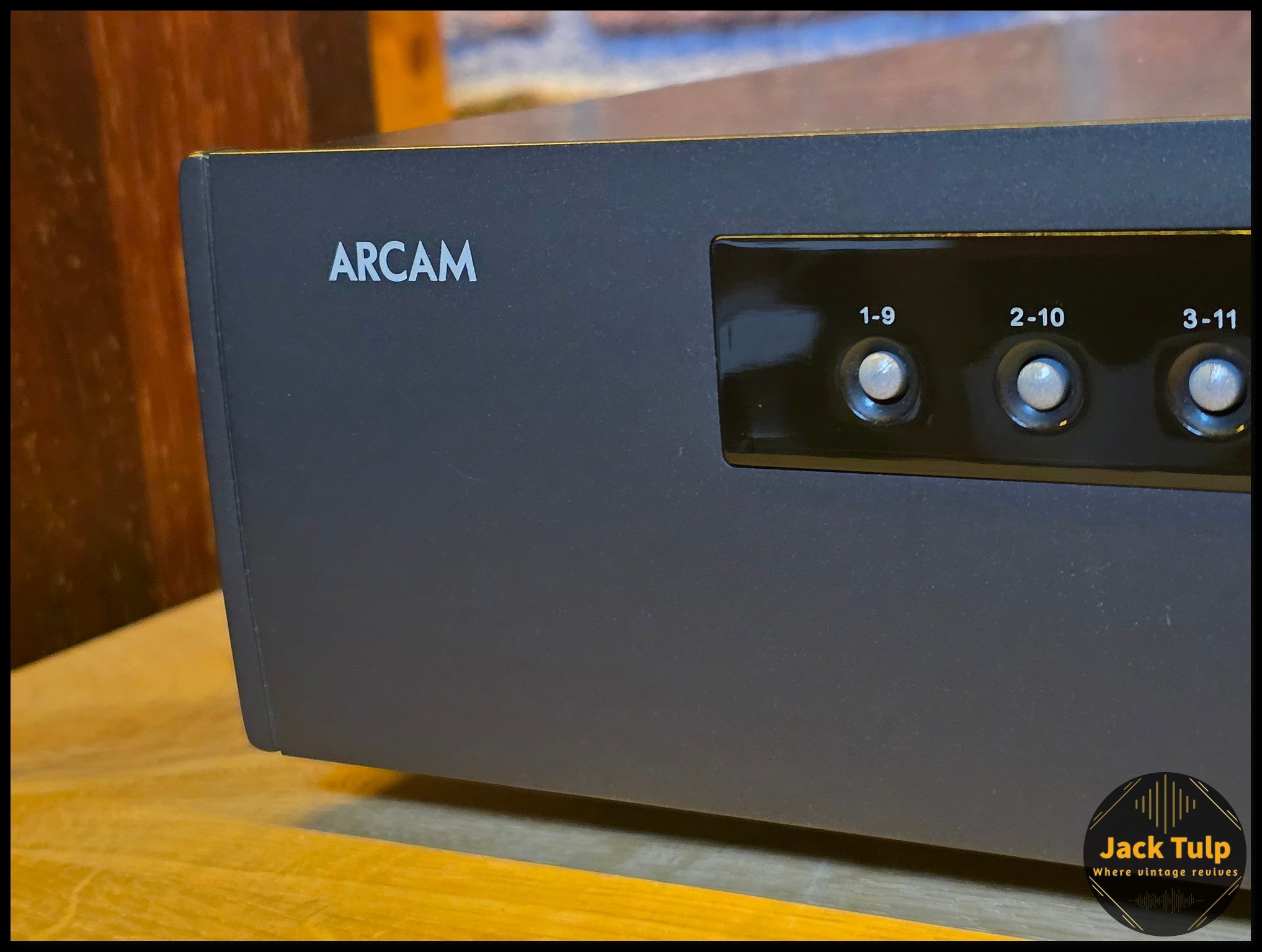

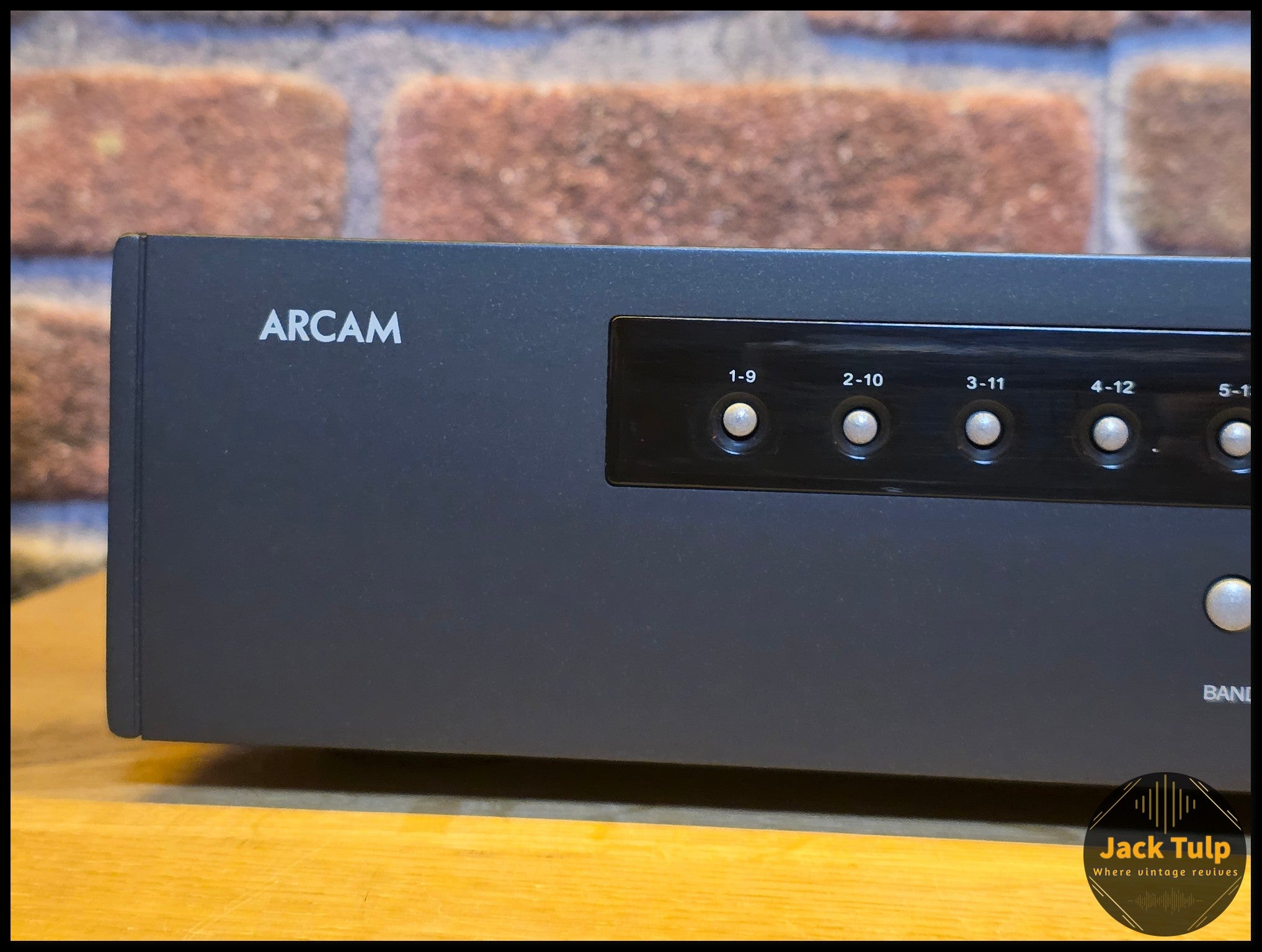

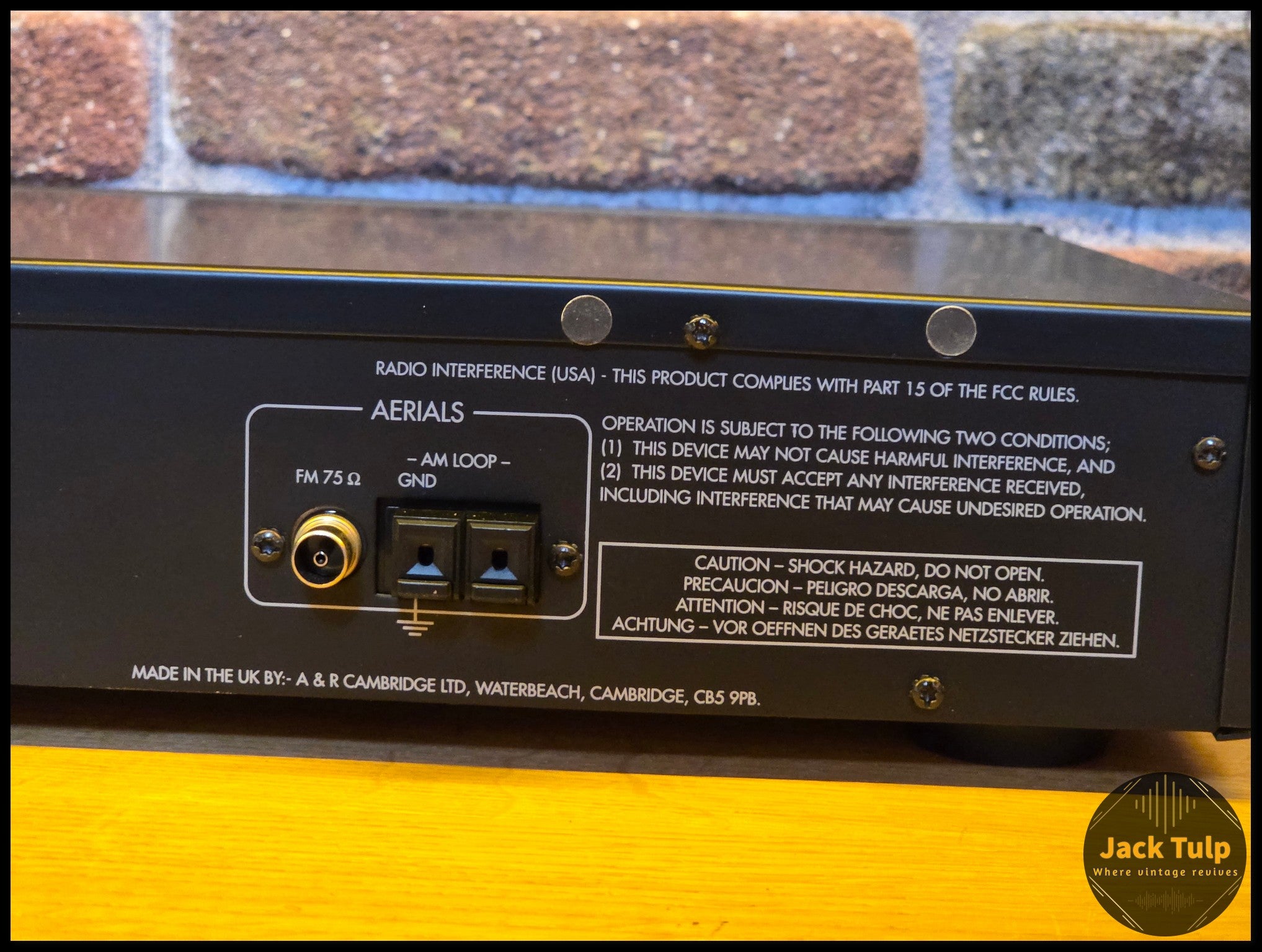

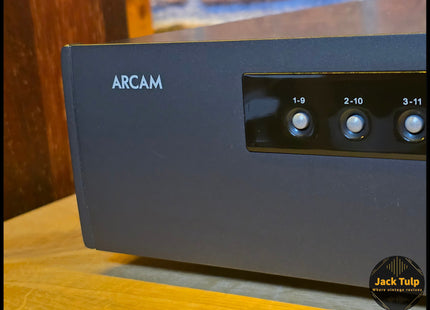

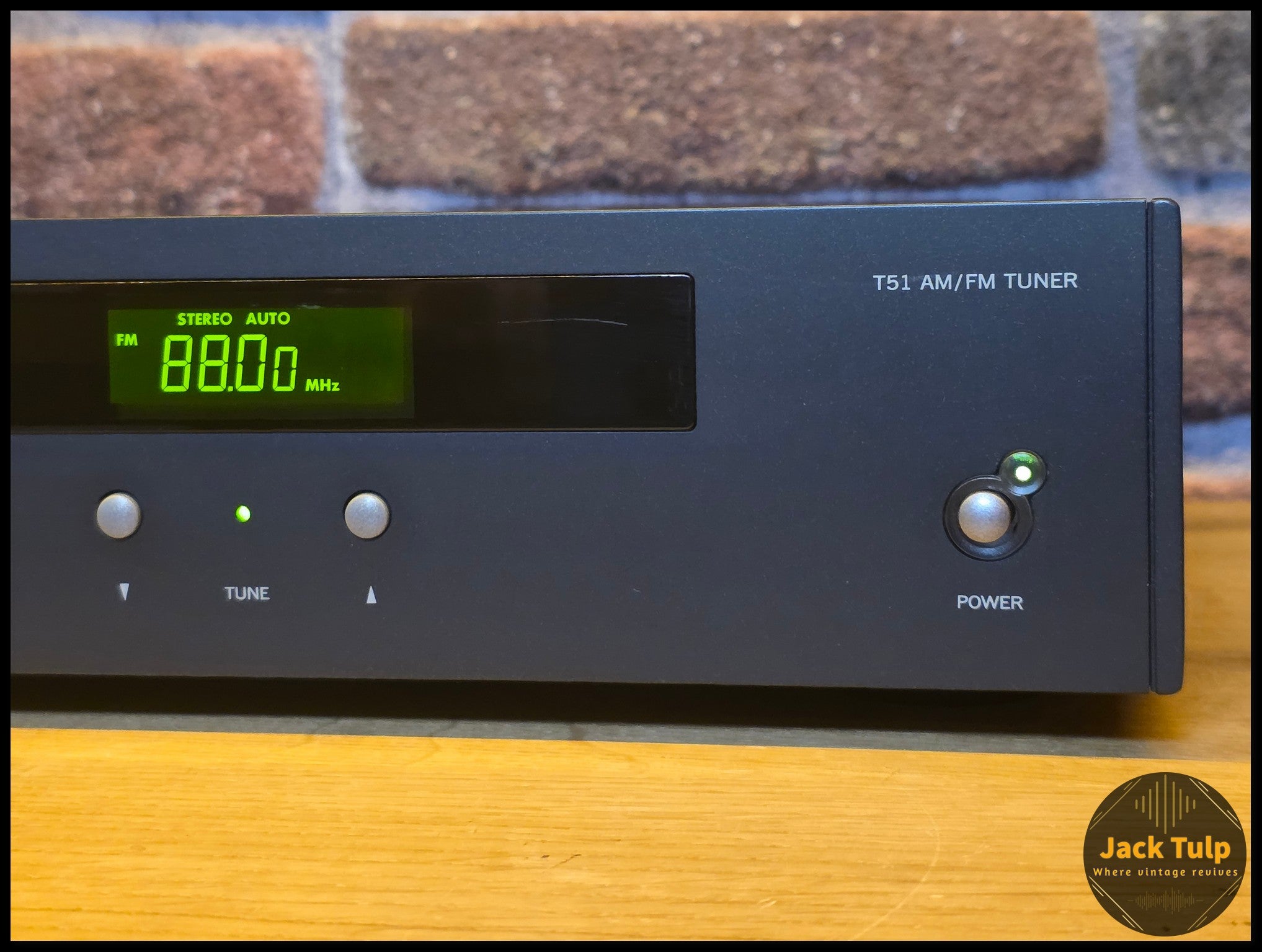

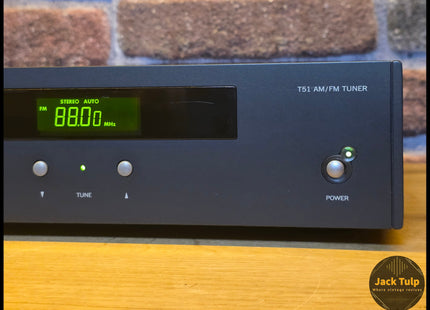

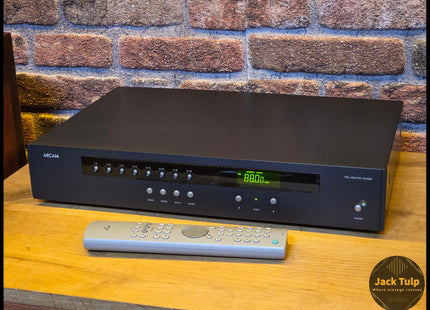

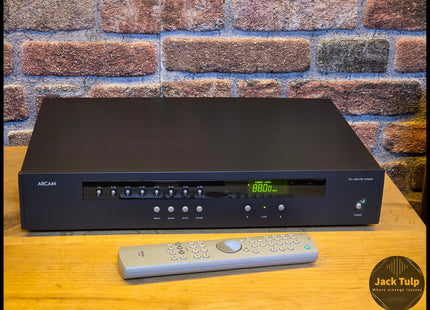

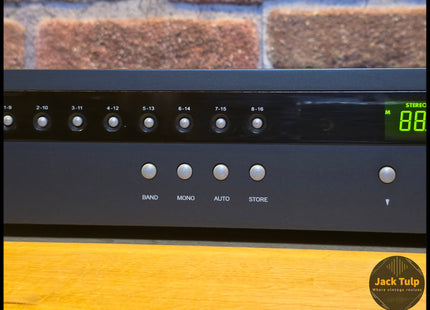

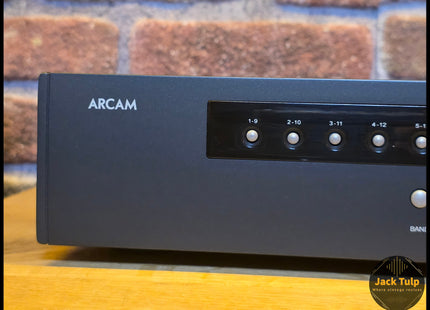

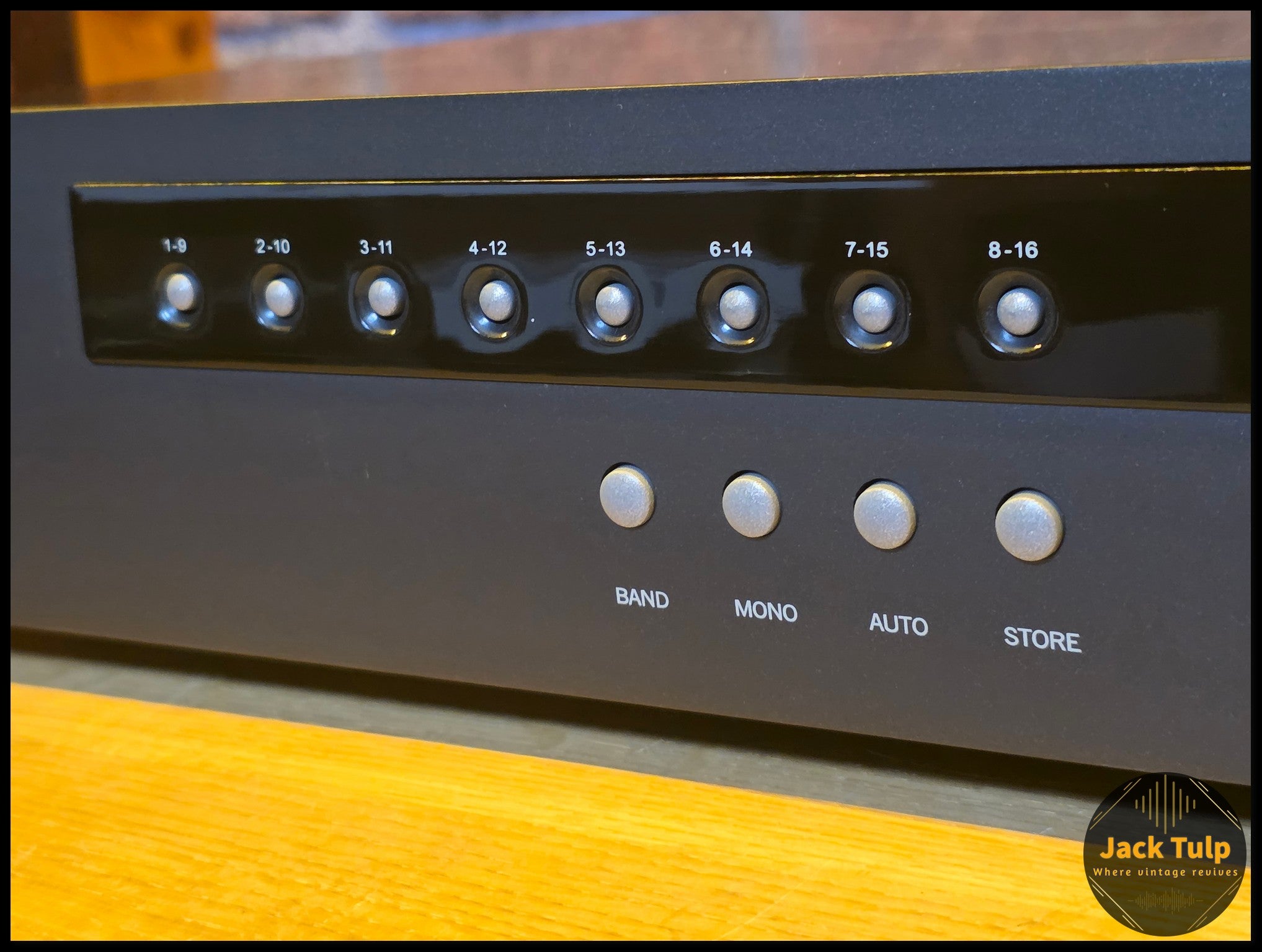

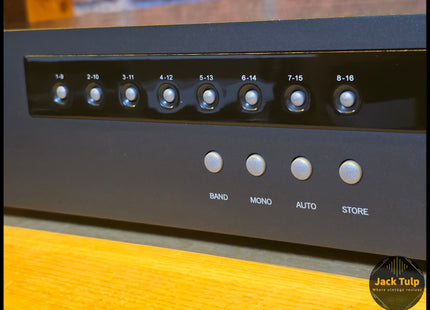

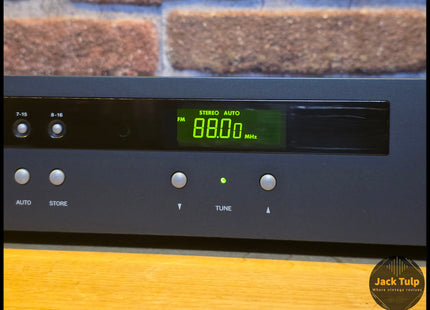

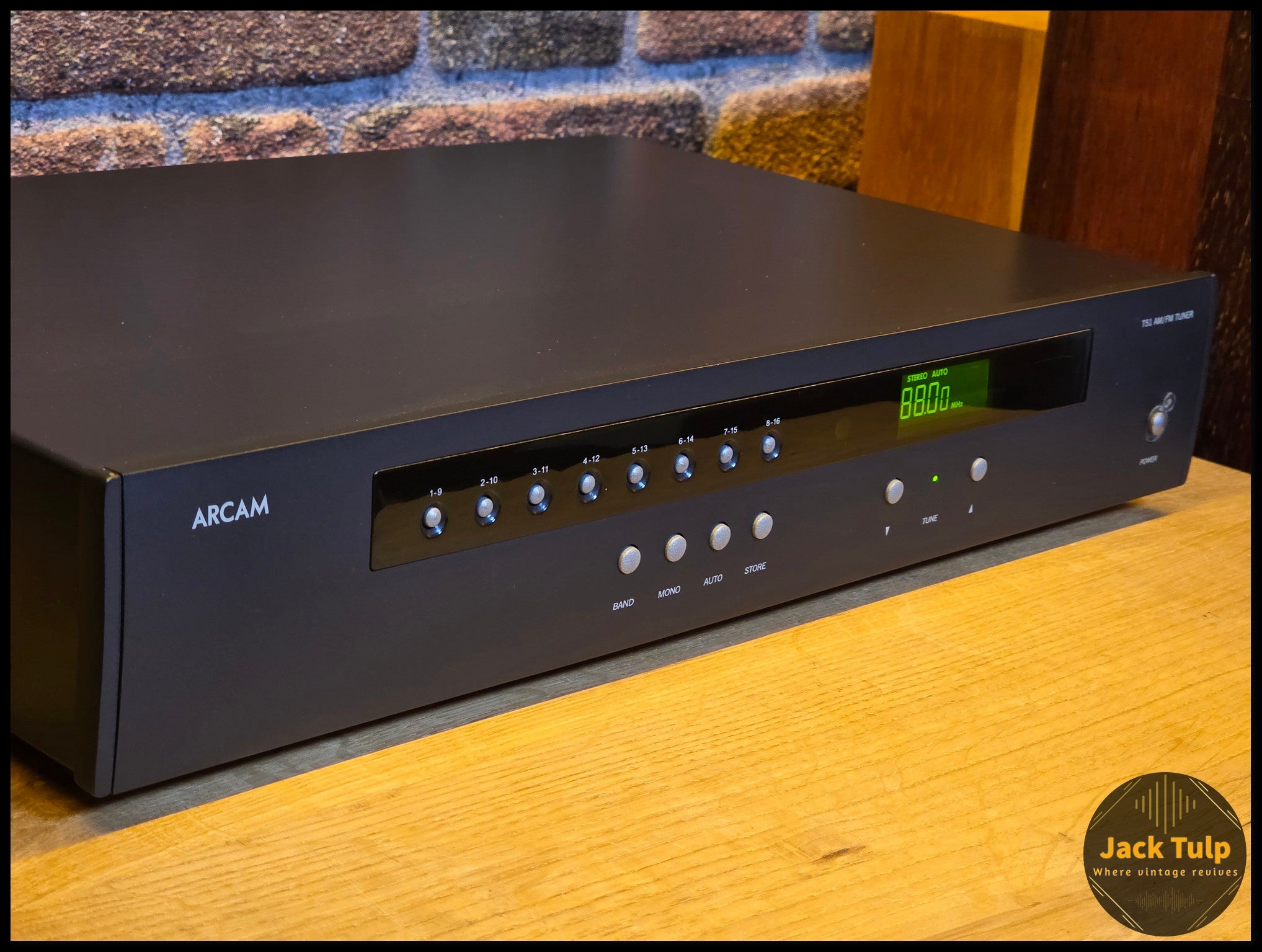

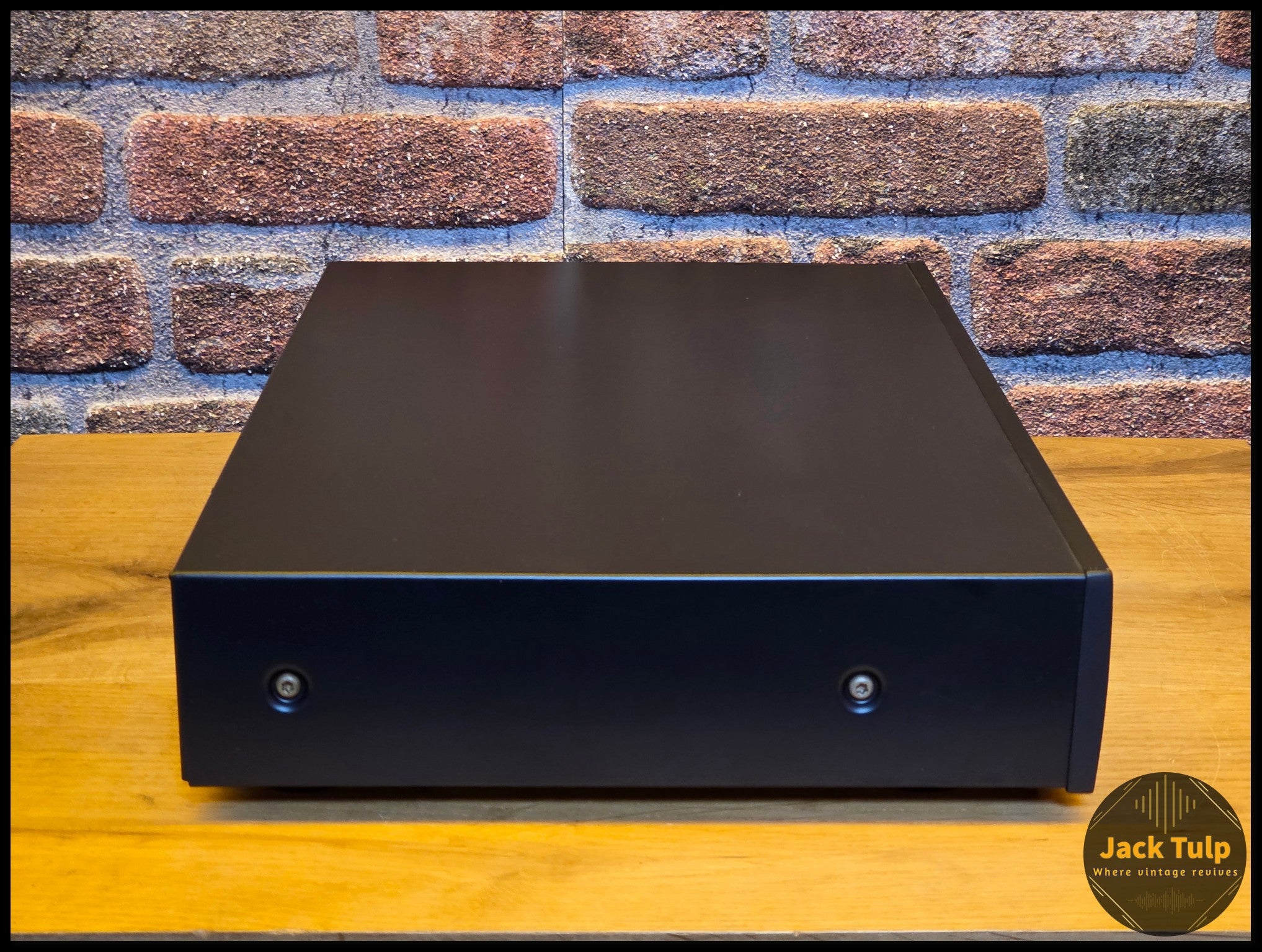

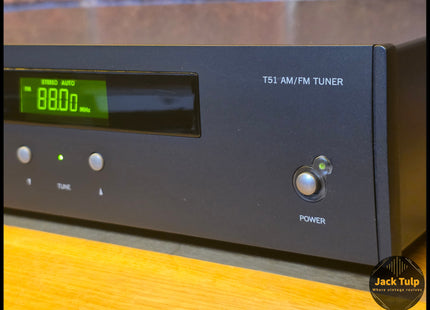

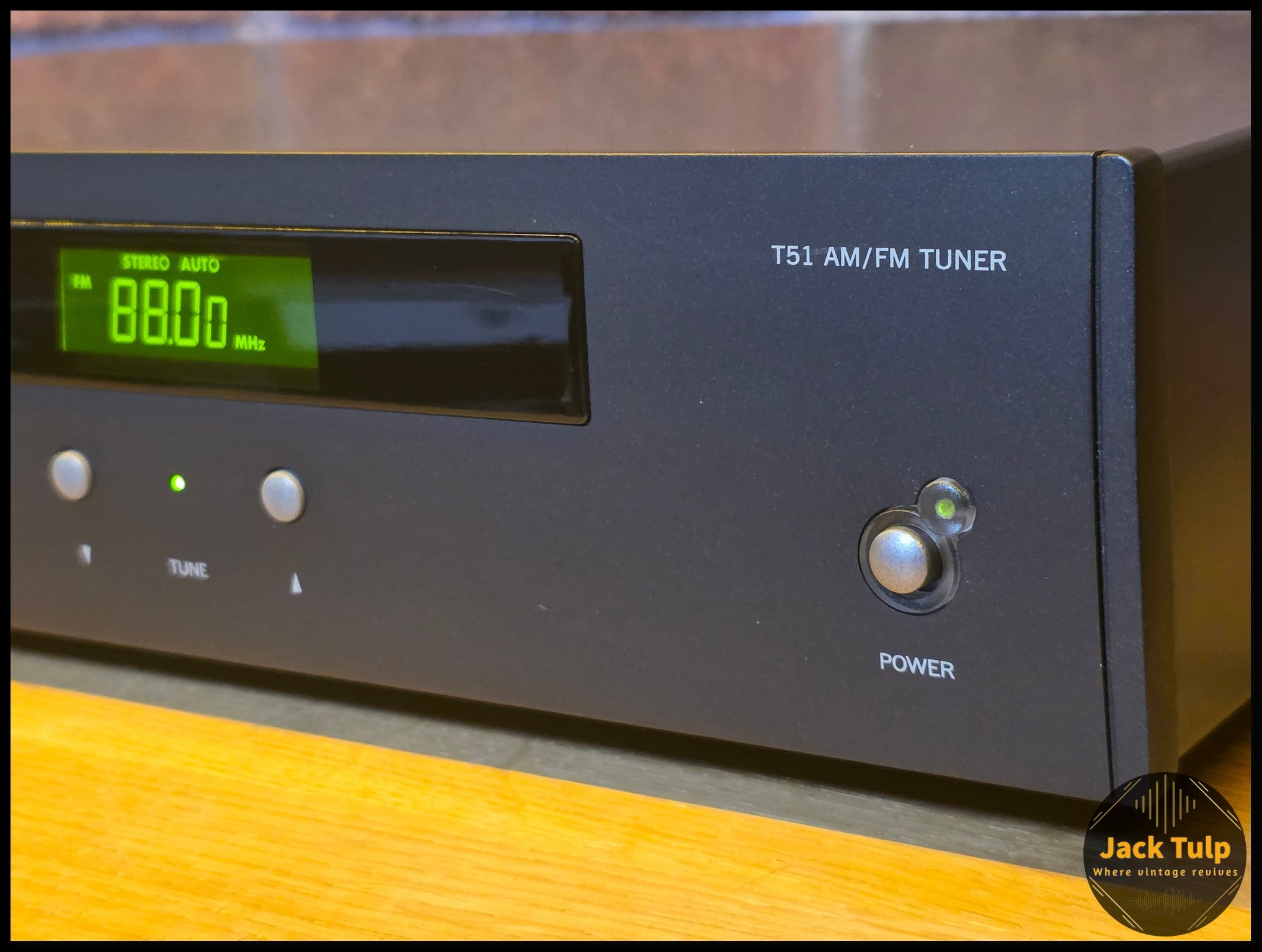

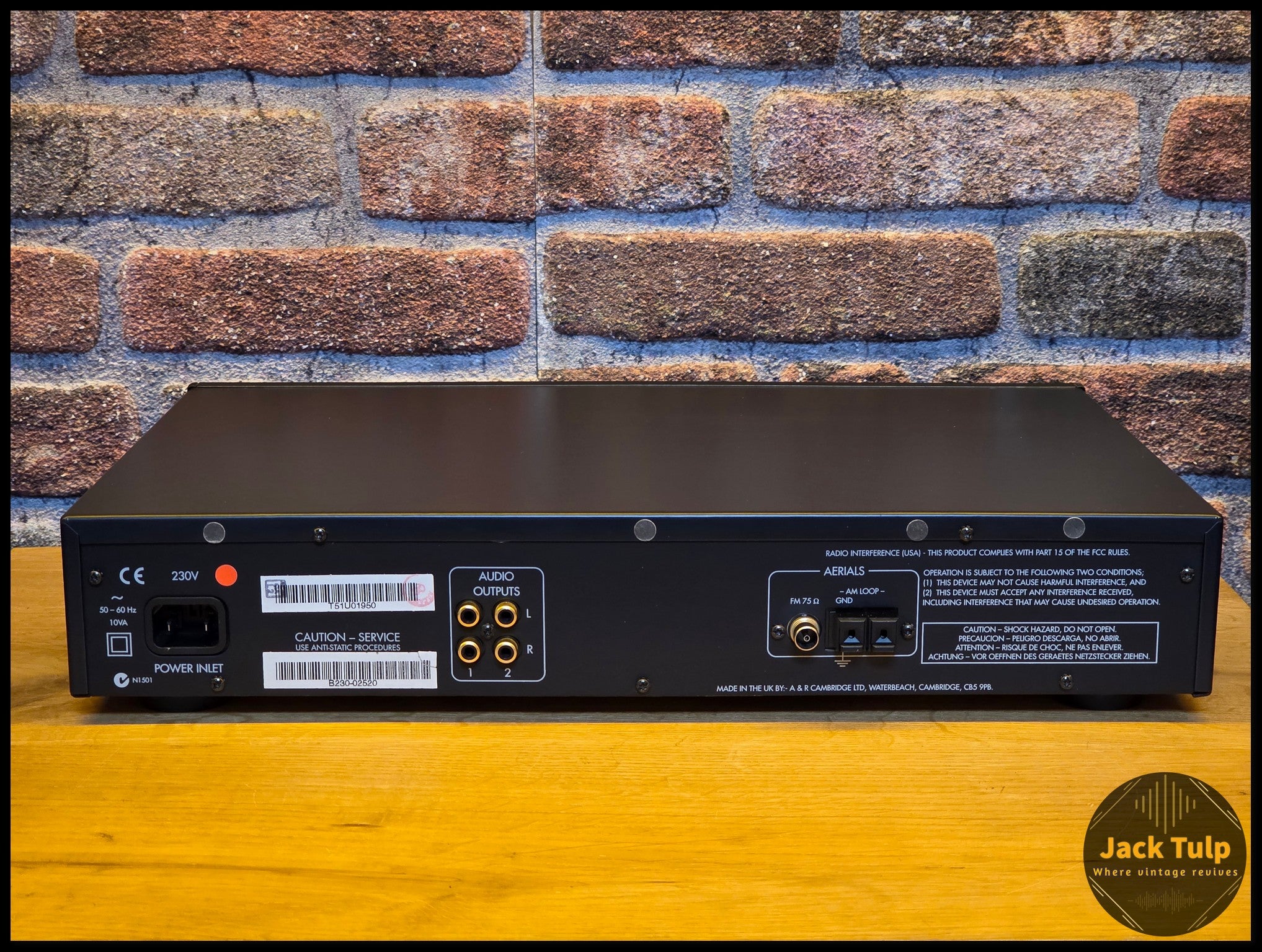

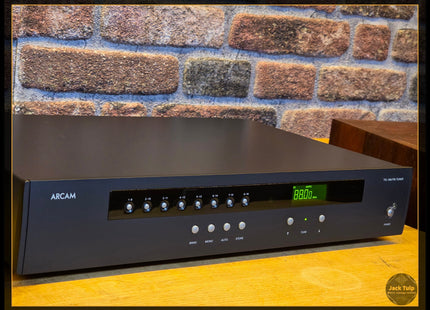

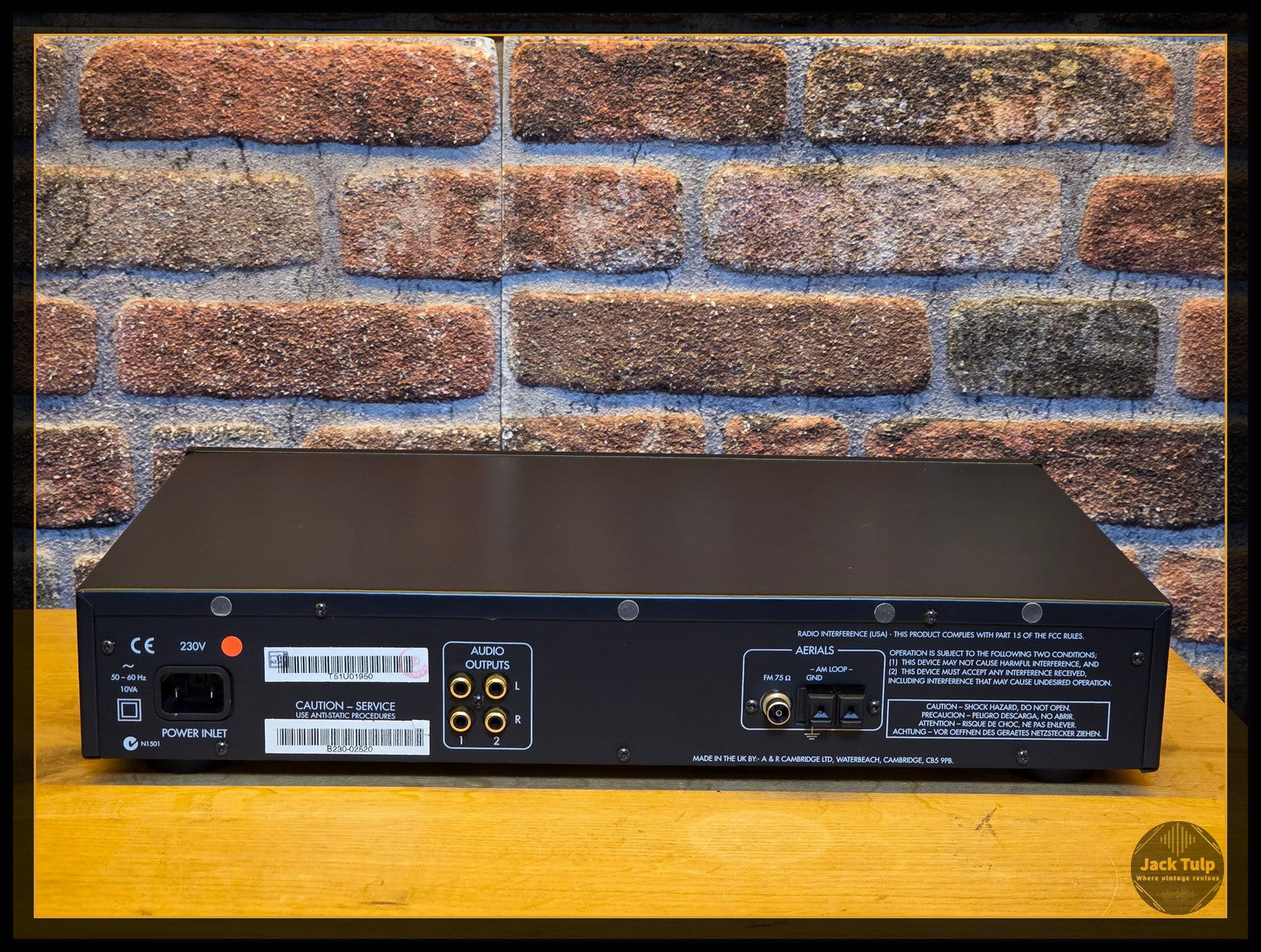

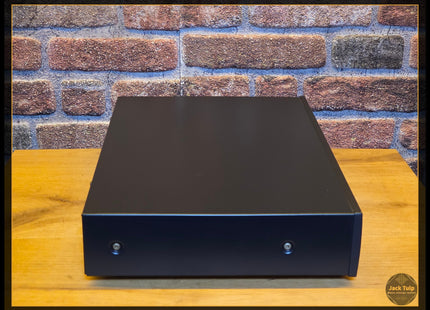

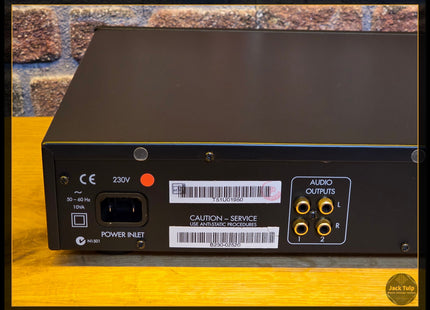

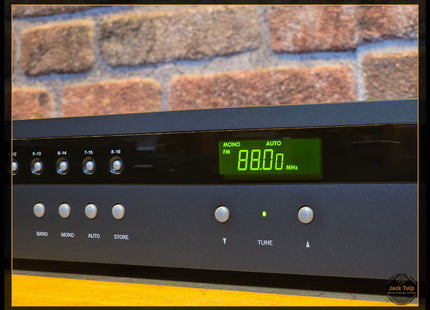

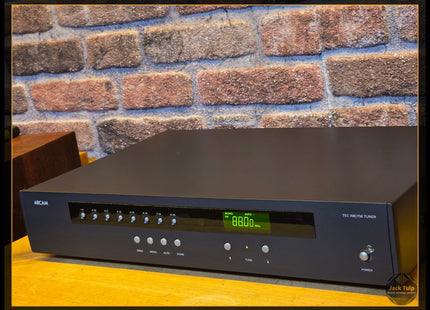

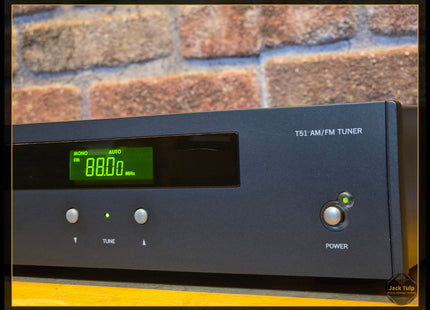

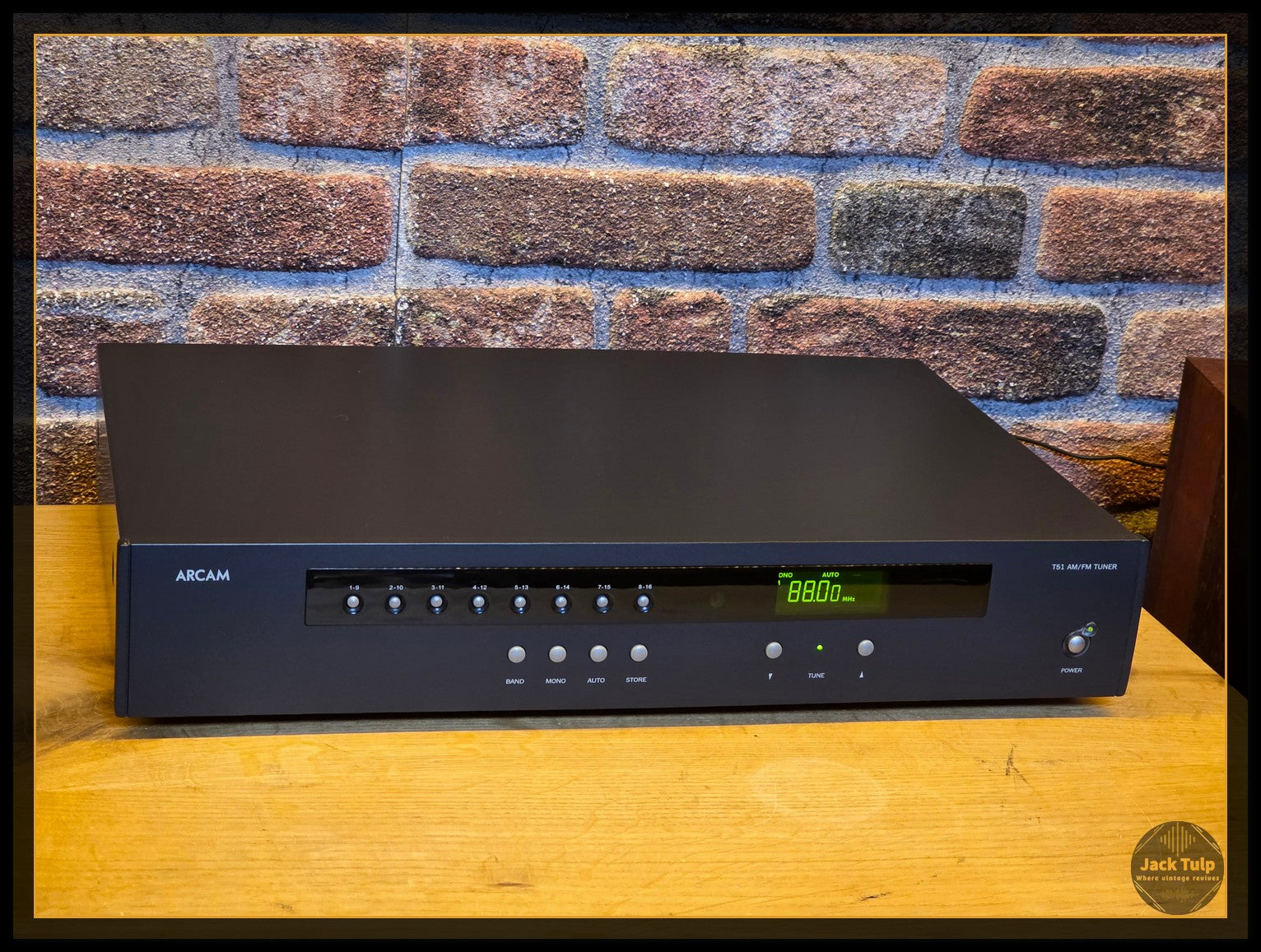

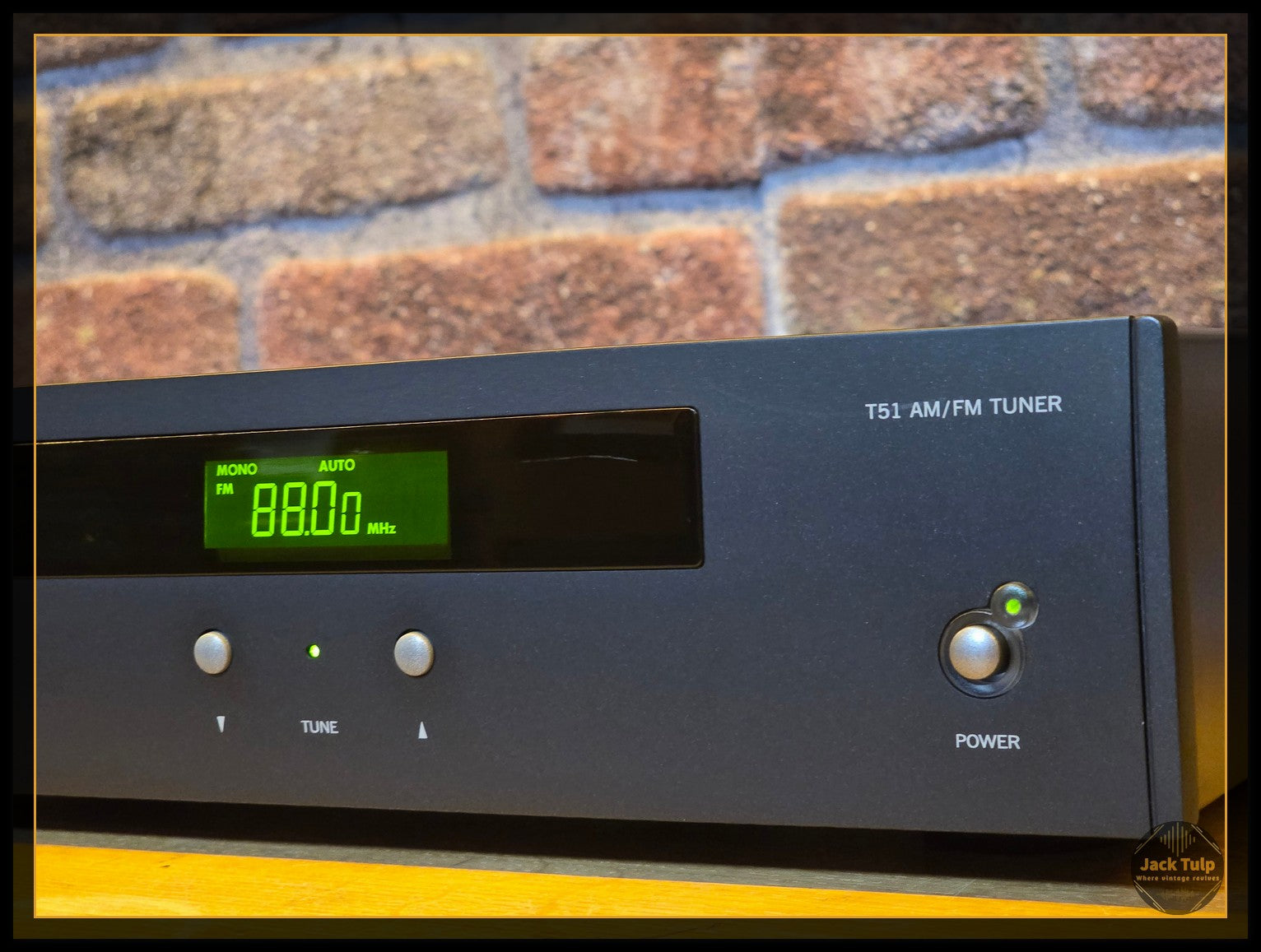

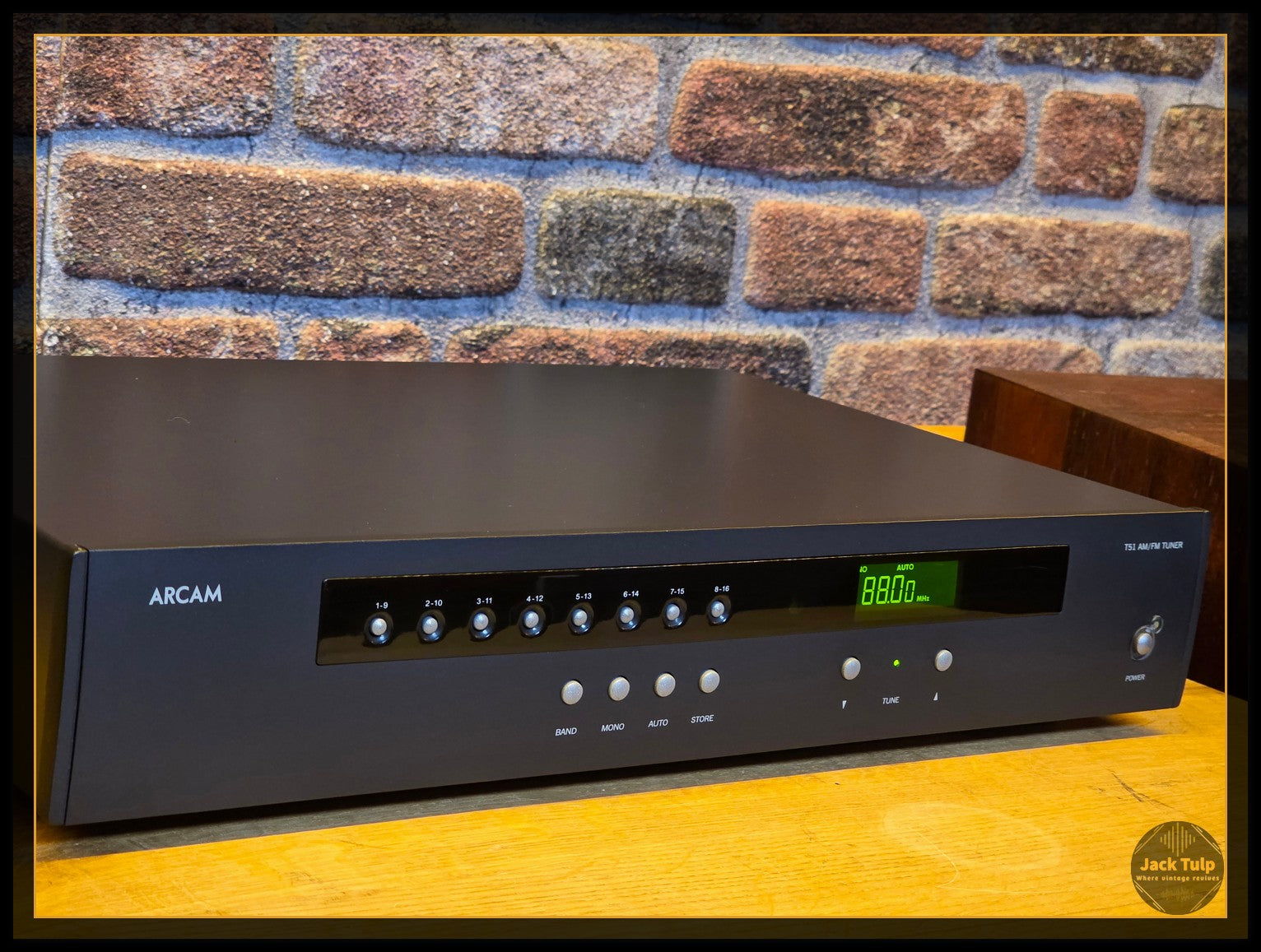

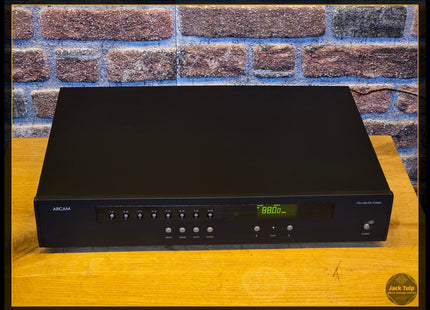

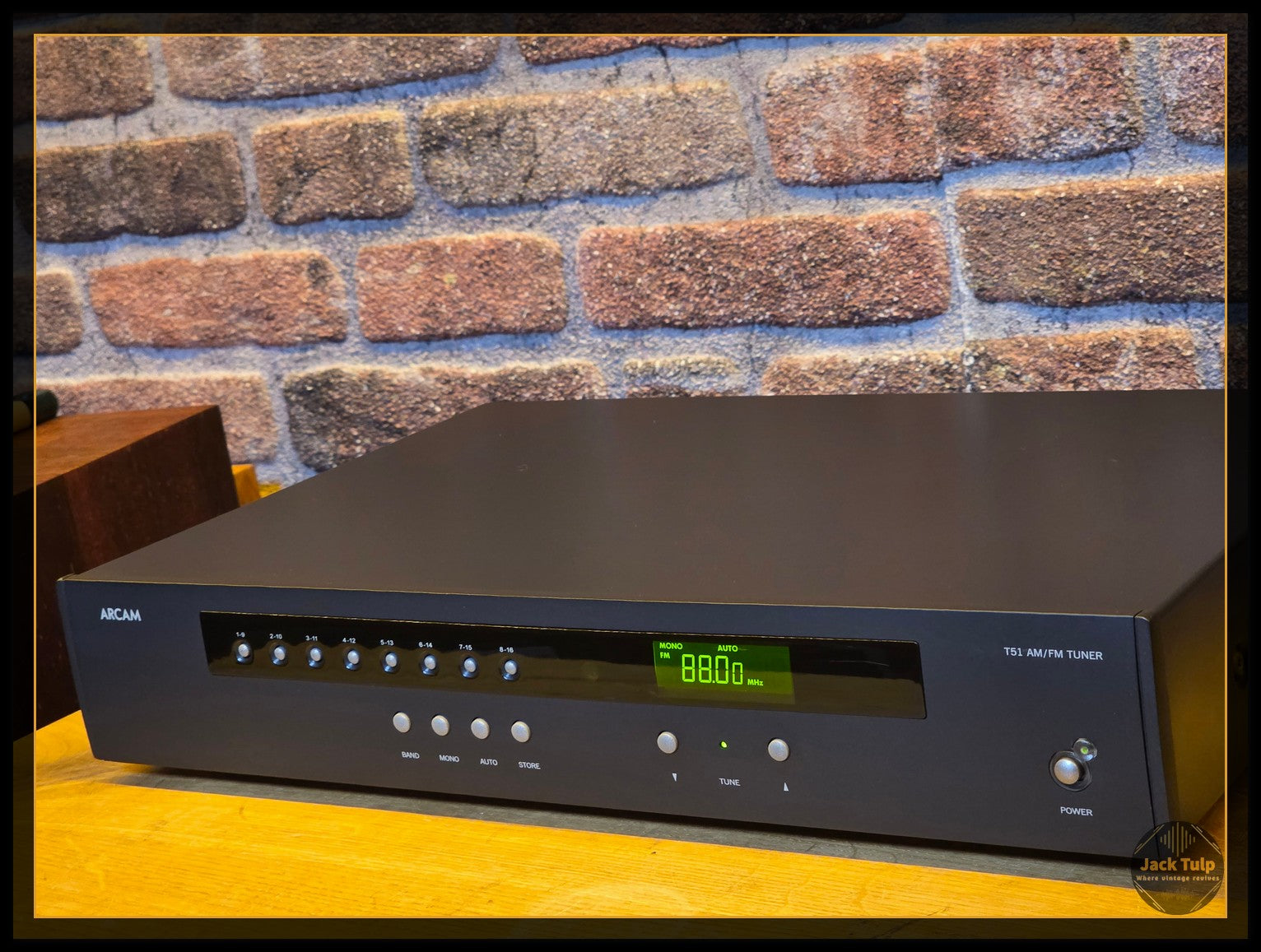

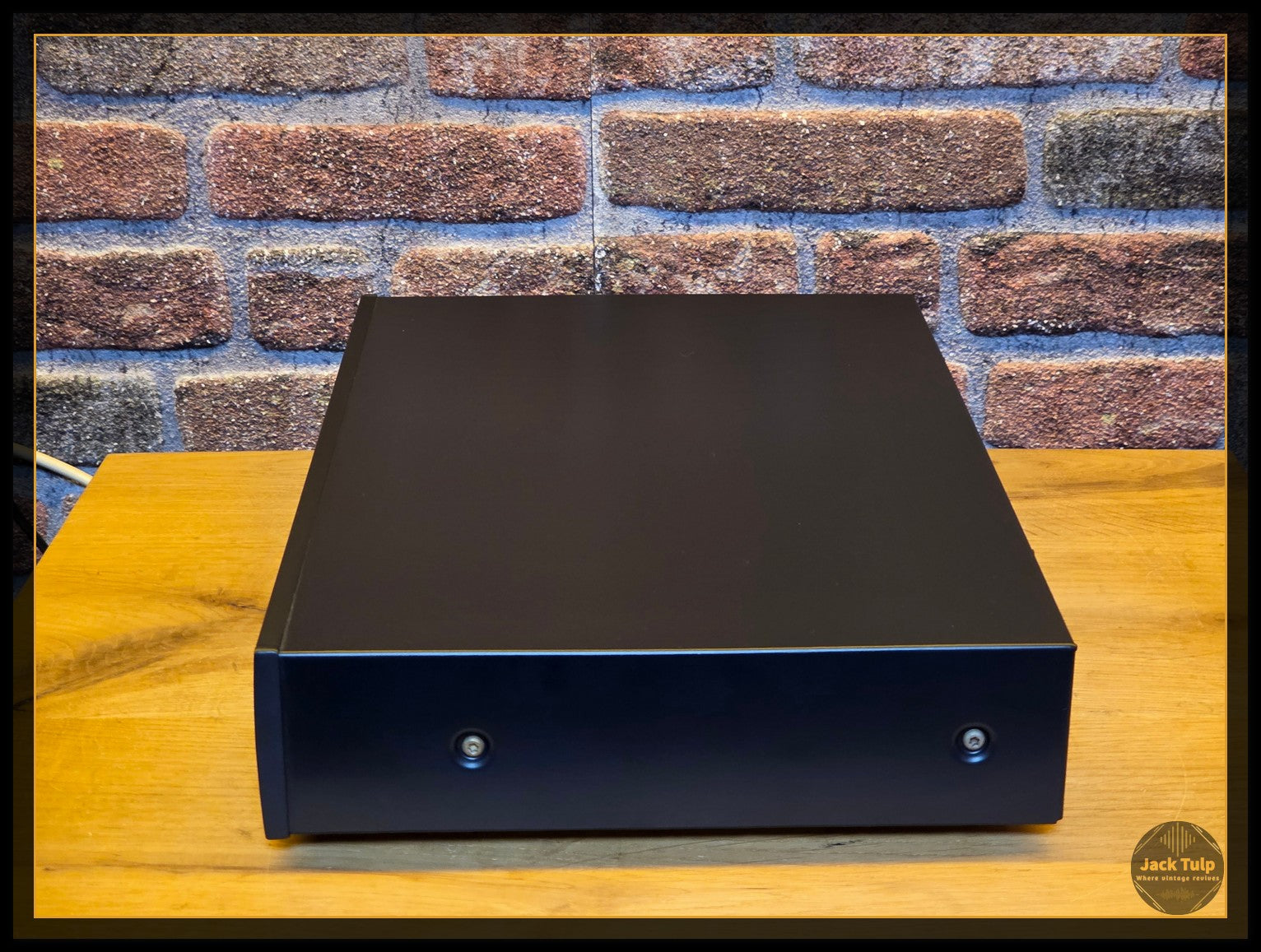

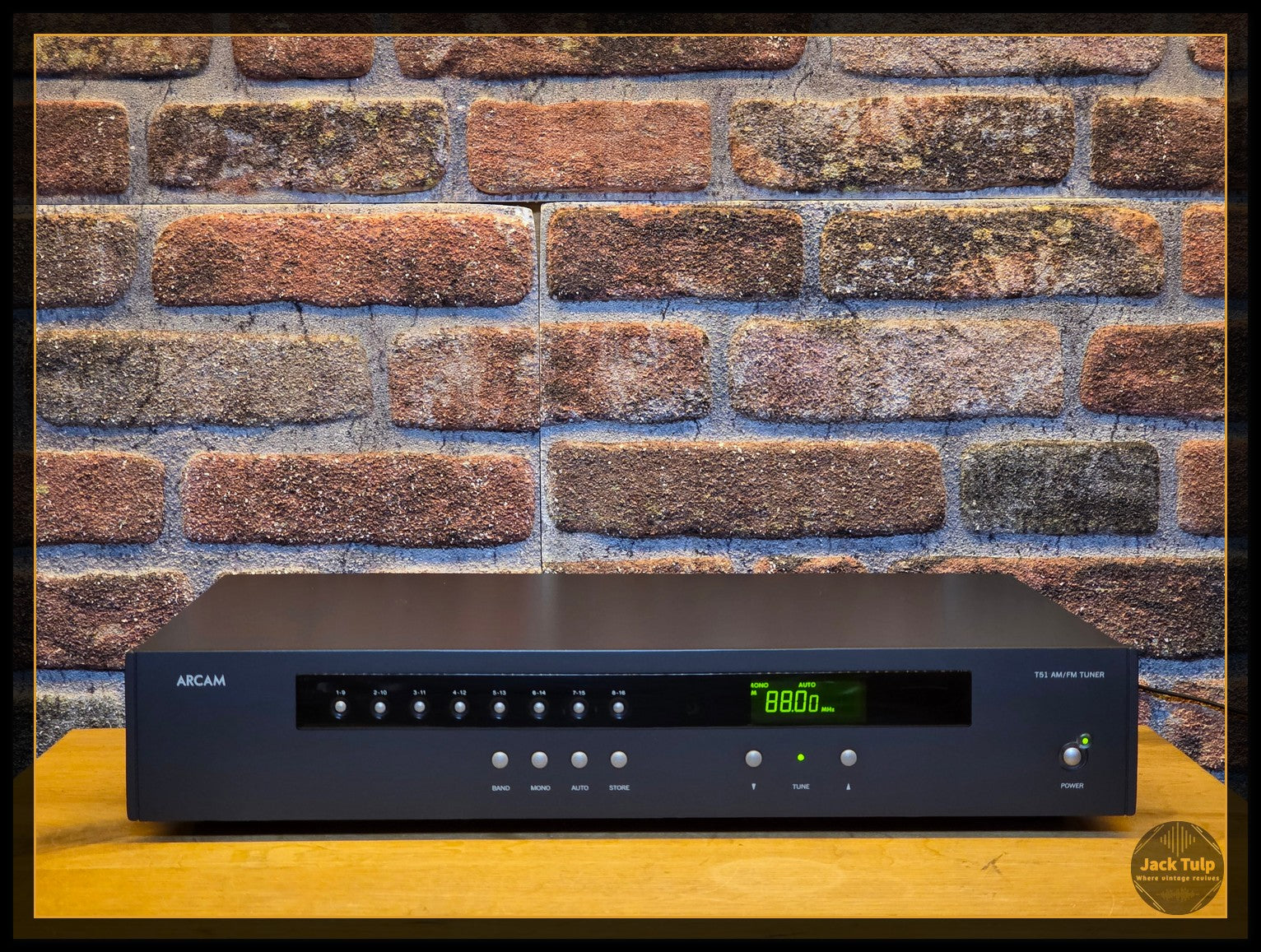

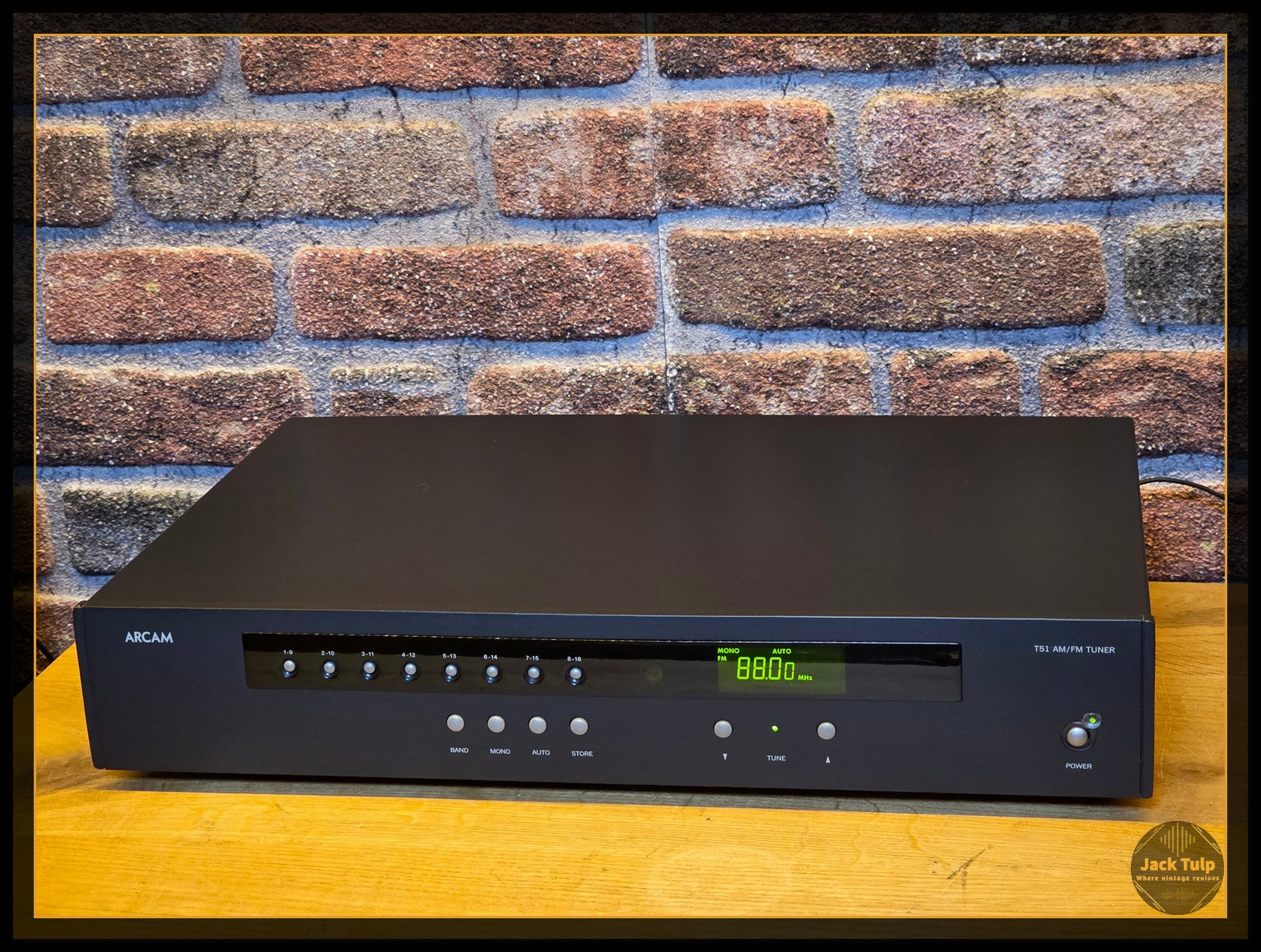

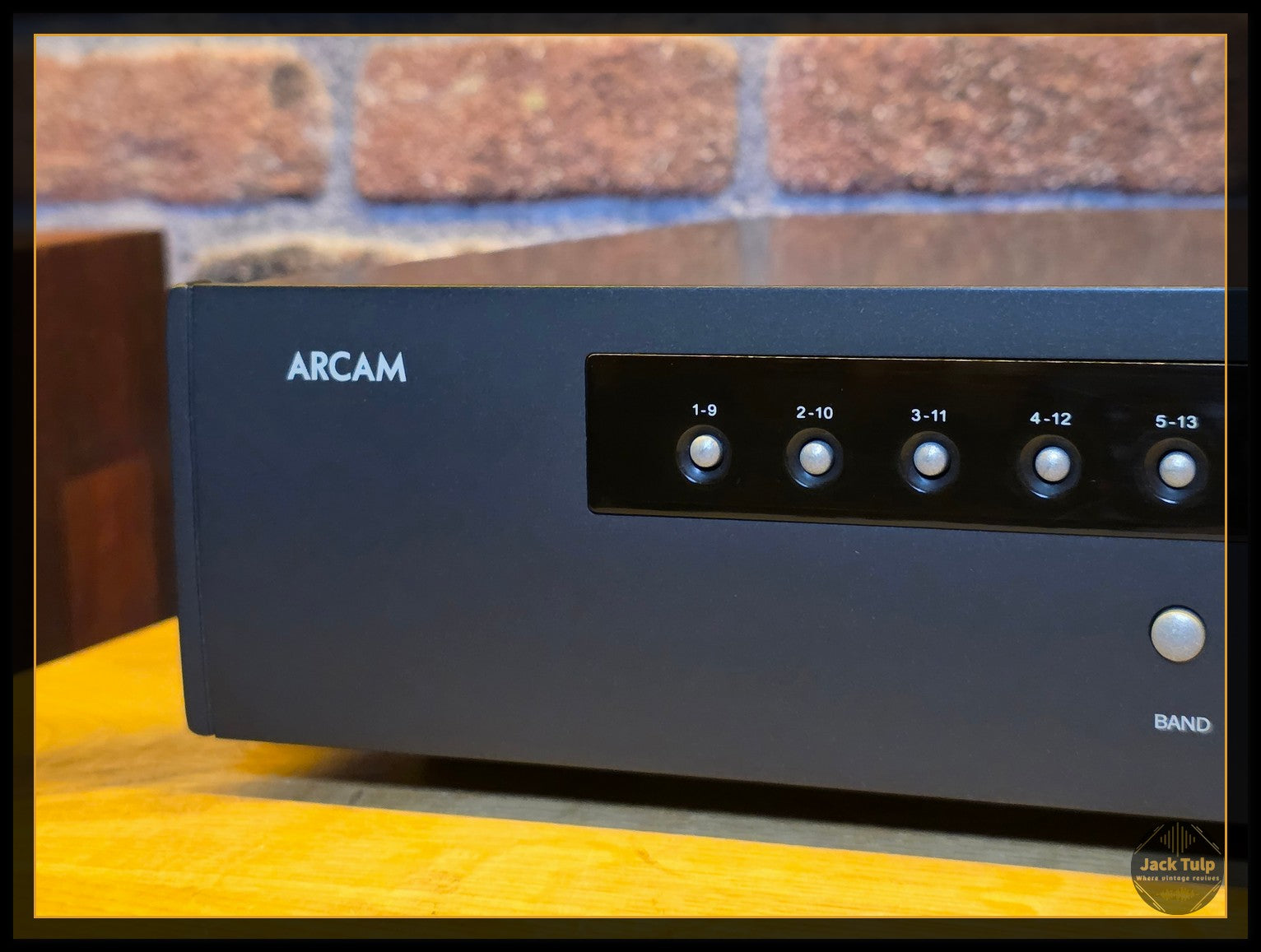

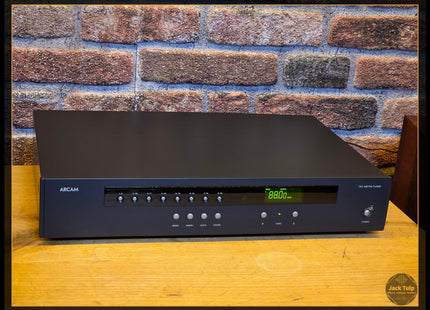

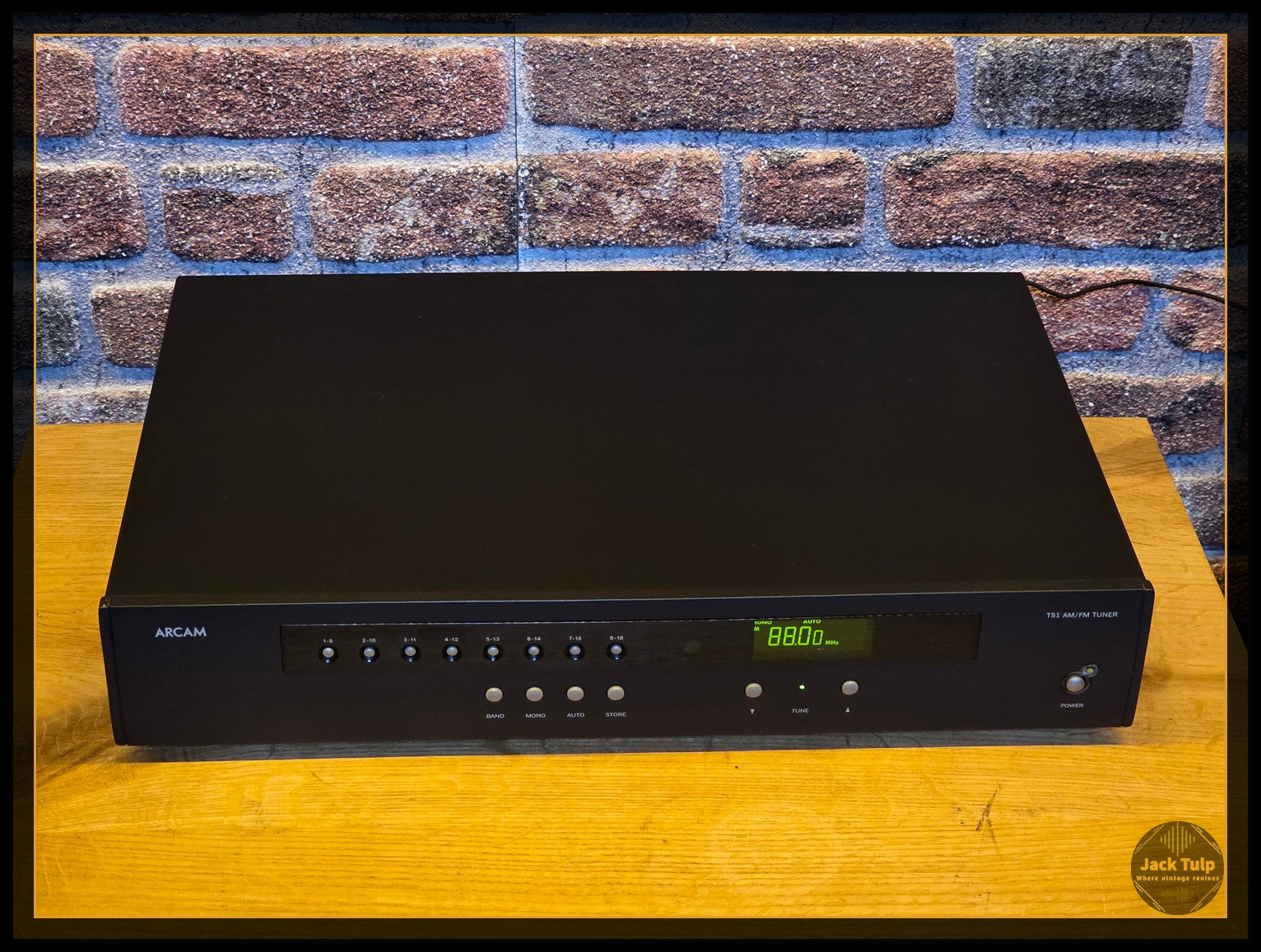

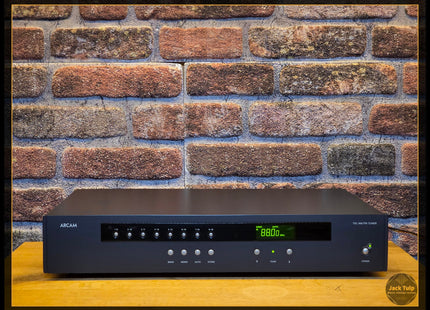

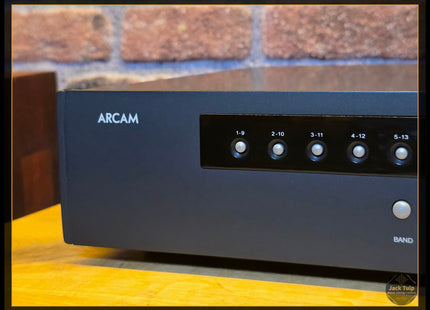

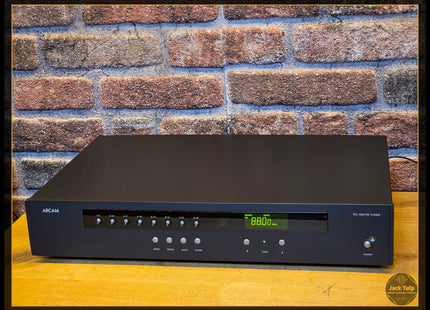

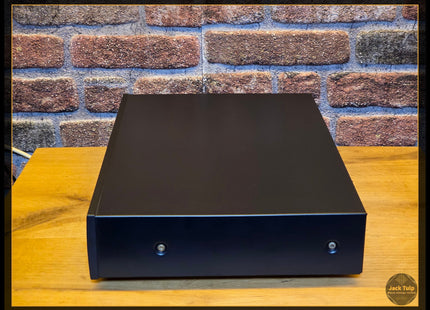

Arcam tuner in grey. Cosmetically in excellent condition.
Technically fully serviced and cleaned.
- Tuning range: 87.5 to 108.0MHz
- Tuning system: Phase-locked-loop
- Frequency steps: 50kHz

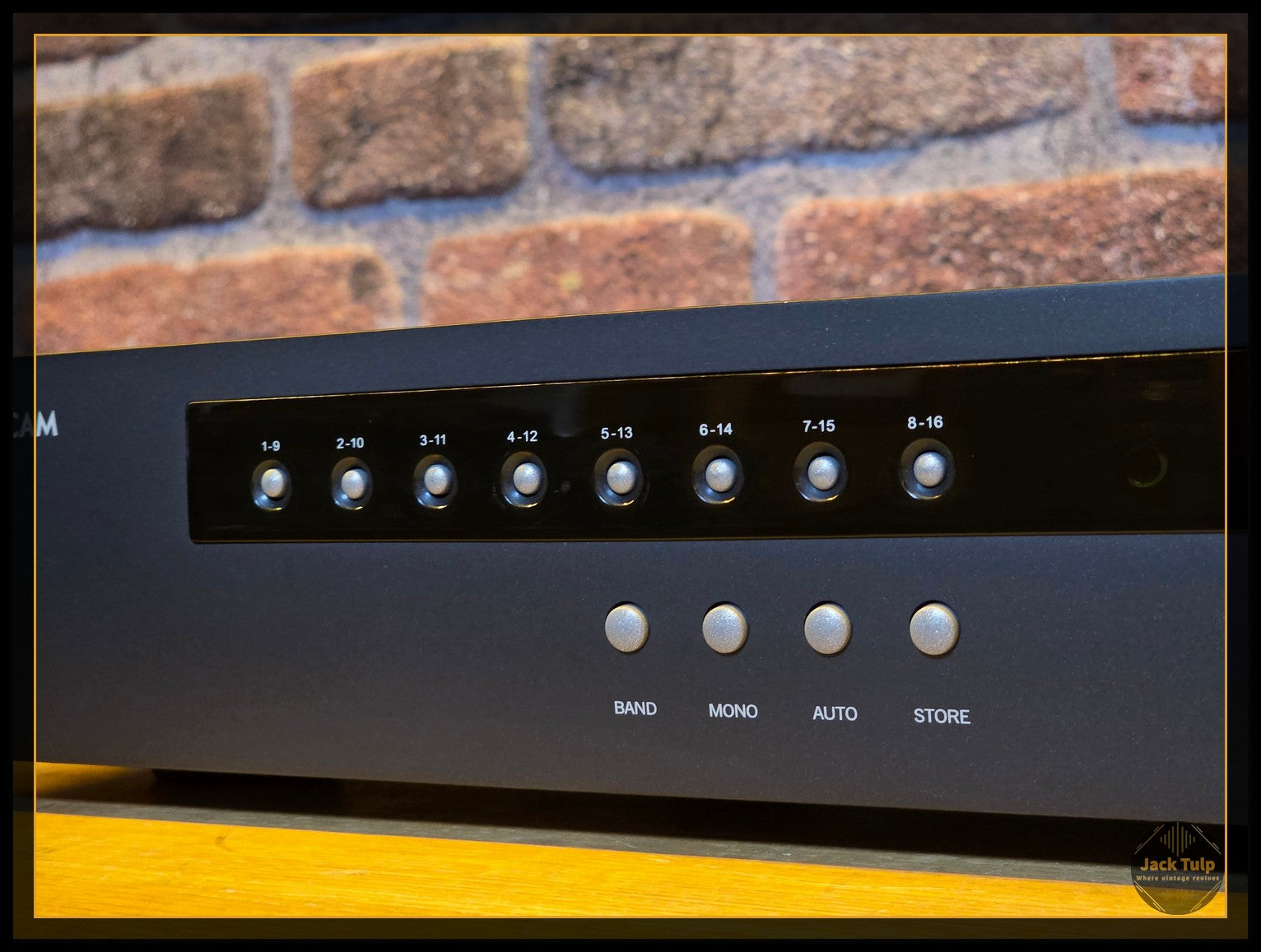

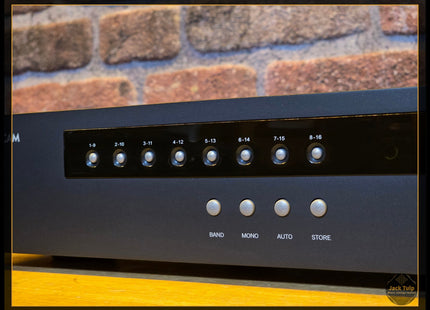

- Presets: 16
- Sensitivity (IHF) for 50dB S/N ratio: typically 8µV
- Alternate channel selectivity better than: 60dB
- AM suppression ratio better than: 50dB
- Capture ratio typically: 1.0dB
- On-tune indicator Lights at tuned frequency: ±50kHz
- Frequency response: 20Hz–15kHz ±1dB
- Ultimate S/N ratio (CCIR) Mono better than: –76dB
- Stereo better than: –71dB
- Total harmonic distortion: (96MHz reference, 22.5kHz deviation at 1kHz)
- Mono better than: 0.1%
- Stereo better than: 0.25%
- Channel separation: (1kHz) better than 38dB
- Pilot tone suppression better than: 30dB

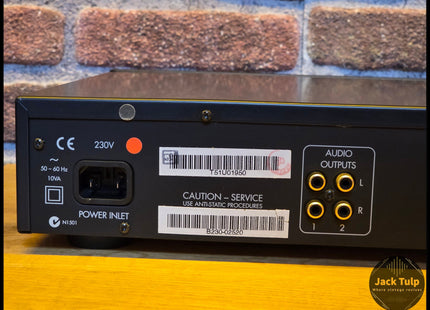

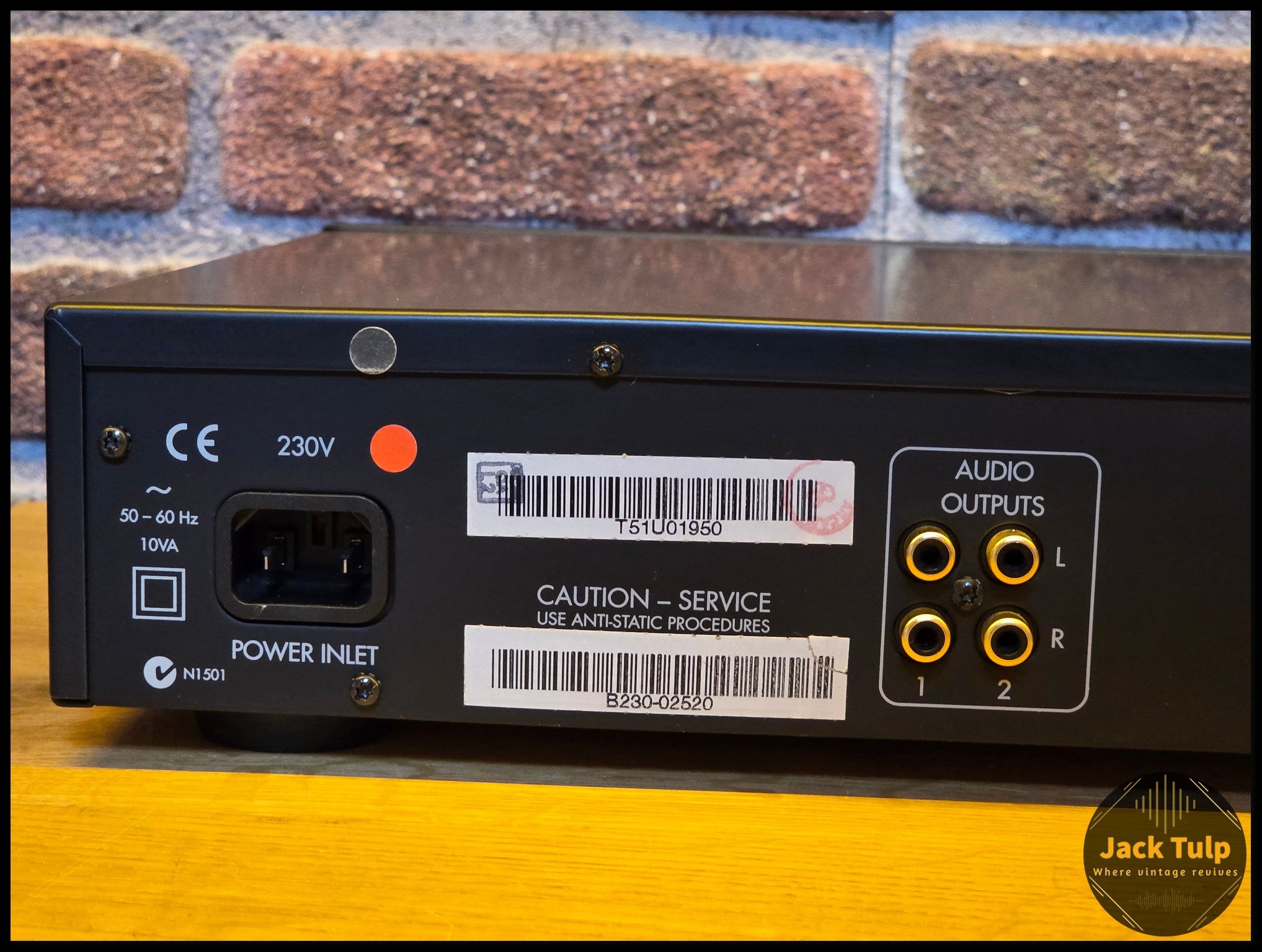

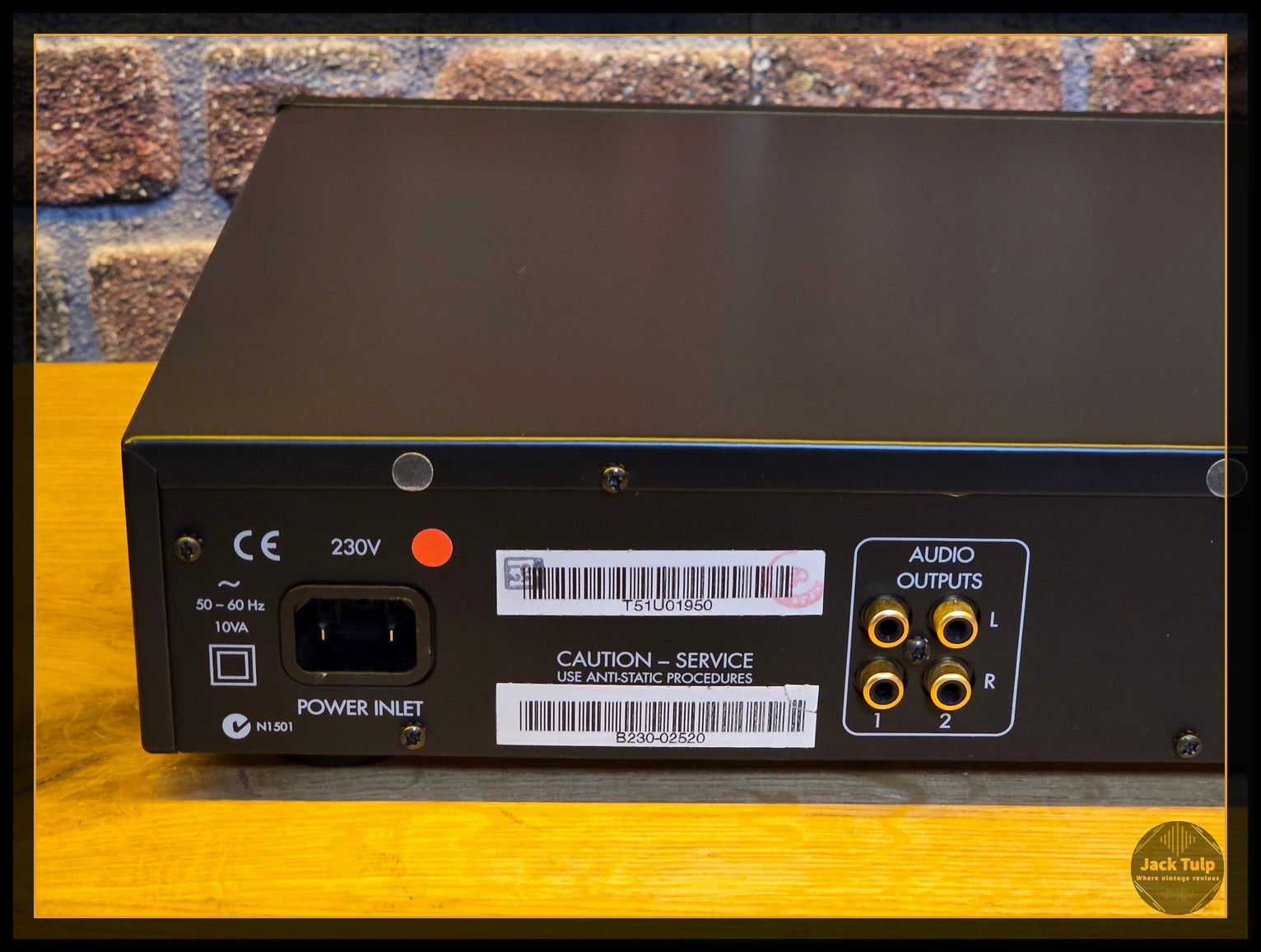

- Output level 700mV at 75kHz: deviation
- Output impedance: 100Ω
- Minimum recommended load: 5kΩ
- Power consumption: 10VA
- Size W x D x H: 430 x 290 x 85mm
- Weight: 4.6kg
